Technical Specifications
| Parameter | Value |
|---|---|
| Brand | GE |
| Model | DS200PLFMG1A DS200PLFMG1AAA |
| Category | Logic Fault Board |
| Weight | 0.92 lbs (0.42 kg) |
| Dimensions | 6.7 x 4.9 x 1.2 inches |
| PCB Layers | 4-layer board |
| Component Count | 156 discrete components |
| Fault Inputs | 16 digital inputs |
| Input Voltage | 24V DC nominal |
| Fault Latching | Programmable edge or level |
| Output Relays | 6 form-C relays |
| Relay Contact Rating | 3A at 250V AC or 30V DC |
| Fault Memory | 32 event FIFO buffer |
| Time Stamping | 1 ms resolution |
| Reset Type | Manual or remote |
| Status Indicators | 16 red LEDs (inputs), 6 green LEDs (outputs) |
| Operating Voltage | 24V DC from backplane |
| Current Draw | 150 mA at 24V DC |
| Energy Storage | 4 x 220µF, 4 x 47µF |
| Temperature Range | 0°C to 55°C |
Physical Construction and Component Layout

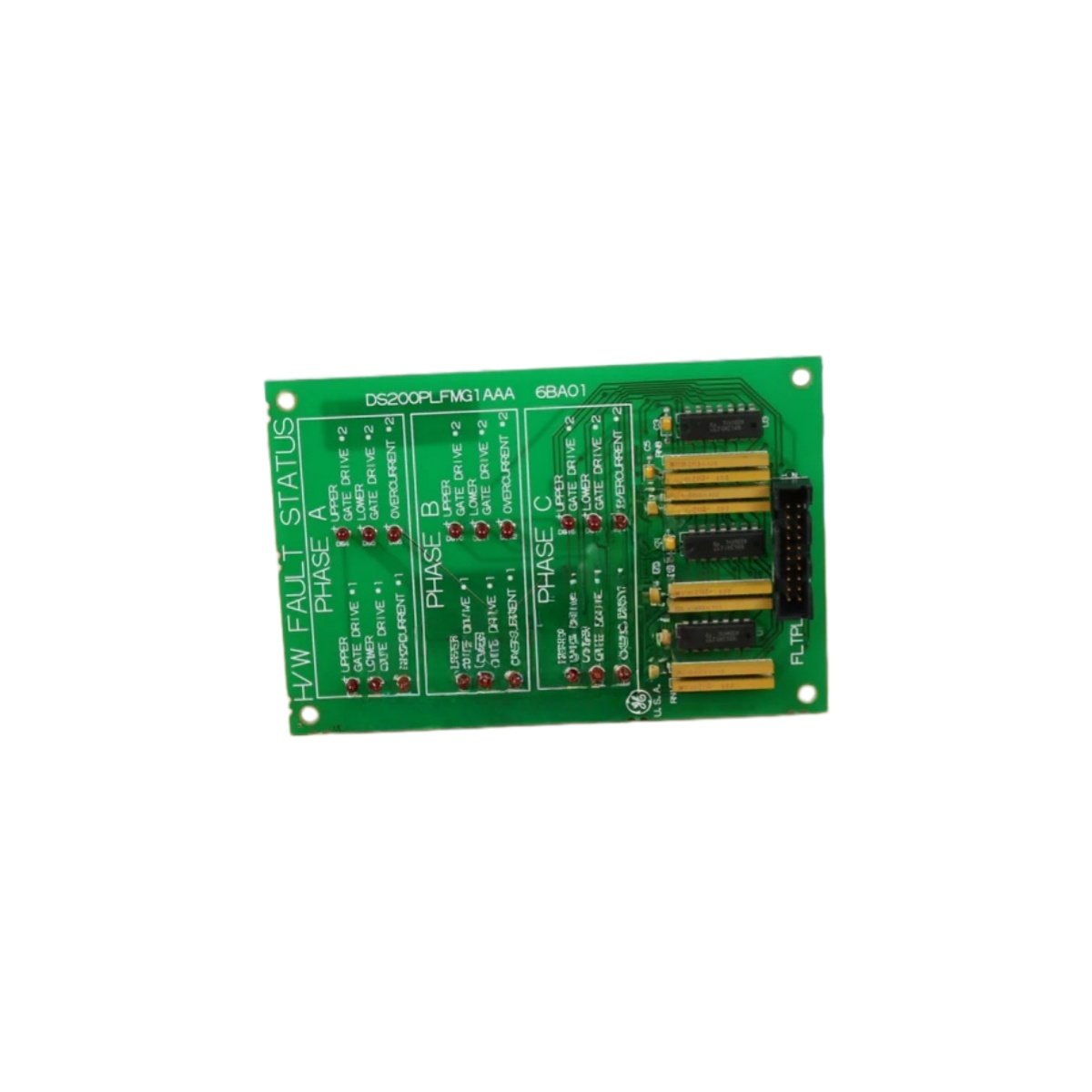

This DS200PLFMG1A DS200PLFMG1AAA logic fault board measures 6.7 inches in length. Its width reaches 4.9 inches with a thickness of 1.2 inches. The total weight comes to approximately 0.92 pounds. Manufacturers placed 156 discrete components on this four-layer PCB. These components include optocouplers, relay drivers, a FIFO buffer, and a real-time clock. Both DS200PLFMG1A and DS200PLFMG1AAA share the same fault monitoring design.
Fault Inputs and Latching Configuration
DS200PLFMG1A DS200PLFMG1AAA provides 16 digital fault inputs for system monitoring. Each input accepts 24V DC signals from protection devices. Programmable latching responds to either edge or level triggers. The board captures fault events and holds them until reset. A 32-event FIFO buffer stores the fault history sequentially. Time stamping adds a 1 millisecond resolution marker to each event. Sixteen red LED indicators show the status of each input channel. Consequently, operators can identify the first fault in a sequence easily.
Output Relays and Reset Options
DS200PLFMG1A DS200PLFMG1AAA features six form-C output relays for alarm signaling. Each relay switches loads up to 3 amps at 250V AC or 30V DC. The board supports either manual or remote reset methods. A front-panel button provides local reset capability. A remote input allows reset from a distant control room. Six green LED indicators show the status of each output relay. Therefore, this board integrates seamlessly with existing alarm systems.
Energy Storage and Application Use
DS200PLFMG1A DS200PLFMG1AAA integrates four 220µF capacitors for bulk energy storage. Four additional 47µF capacitors filter high-frequency power noise. The board draws 150 milliamps from the 24V DC backplane supply. You will find this board in GE turbine and drive protection systems. It captures and reports fault conditions for troubleshooting. The board operates reliably from 0°C to 55°C ambient temperature. For example, it monitors overcurrent, overtemperature, or overspeed events. Therefore, this logic fault board provides essential fault detection for industrial control applications.
Details
| Weight | 0.45 kg |
|---|---|
| Dimensions | 170 × 145 × 65 mm |
