Engineered for Mark V Speedtronic Drive Systems

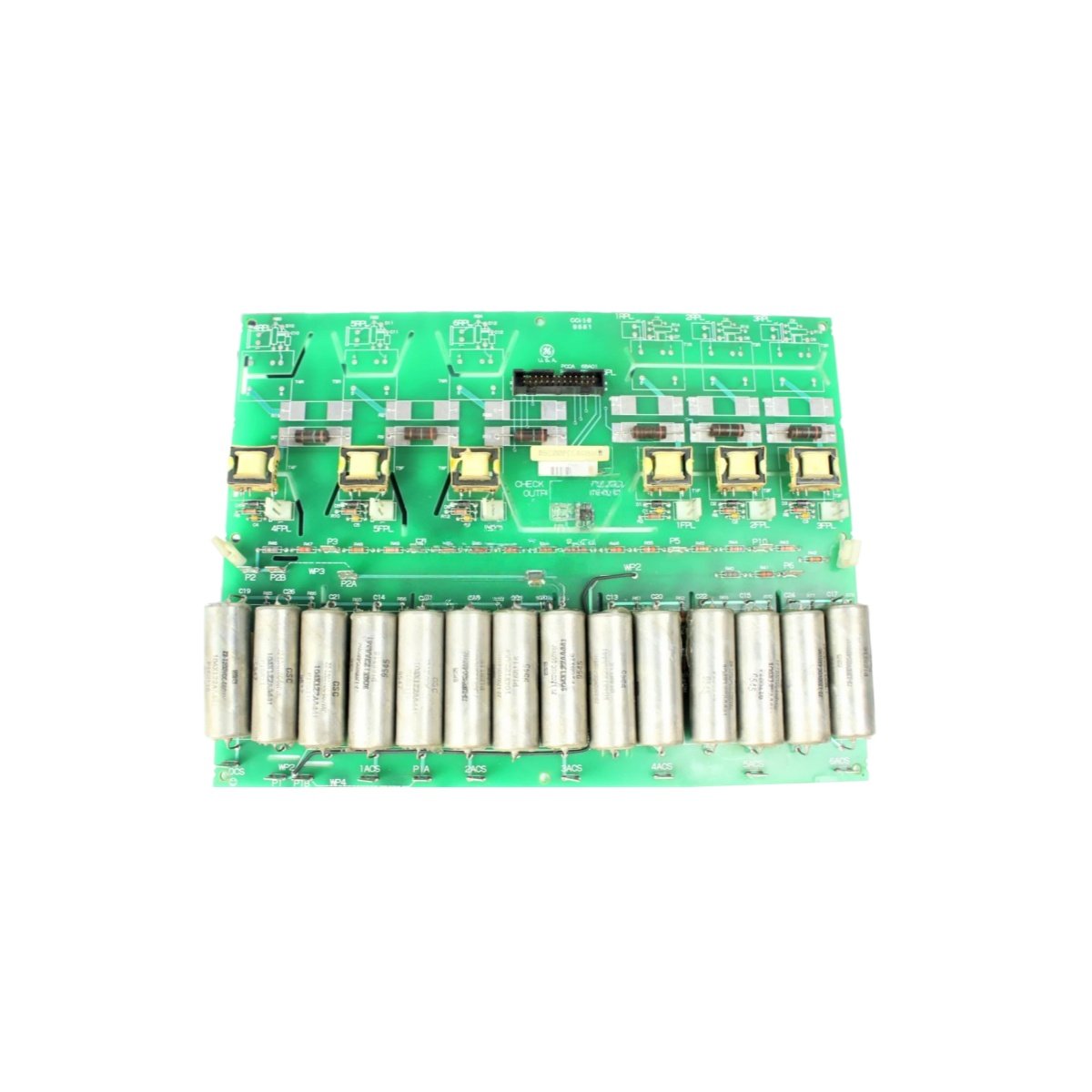

This board manages inductor connectivity within the drive assembly. It provides stable power filtering for the GE DS200PCCAG8A DS200PCCAG8ACB module. You will find this unit exclusively in the Mark V turbine control series. Unlike standard power boards, this version includes the “ACB” functional revision. It ensures reliable energy storage under continuous industrial loads.

Technical Specifications & Physical Parameters

We designed this inductor board for precise energy regulation. The table below presents all verified technical specifications.

Functional Architecture and Connector Layout

This board connects the DC power bus to the inductor network. It uses six dedicated interface ports for signal routing. You can configure these ports for different drive topologies. Moreover, the module includes two surface-mounted inductors. These components smooth voltage fluctuations during motor acceleration. Consequently, the board reduces electrical noise significantly.

Installation and Operational Guidelines

The GE DS200PCCAG8A DS200PCCAG8ACB operates at 50/60 Hz frequency. It achieves 94% efficiency under normal load conditions. You must disconnect all power sources before handling this board. Always verify the jumper settings on JP1 through JP4. This procedure prevents incorrect inductor pairing. Furthermore, the board supports external fuse protection. This feature safeguards the drive from overcurrent events.

Physical Characteristics and Durability

This inductor board has a non-repairable, single-layer PCB design. Its compact 0.35 kg weight allows for easy mounting. The layout follows GE’s standard Mark V coating specifications. Therefore, it fits perfectly into existing C-frame or G-frame cabinets. The board also supports snubber circuits for inductive loads. In addition, it maintains stable operation between -30°C and 65°C.

​
