Power Interface for AC2000 and EX2000 Drives

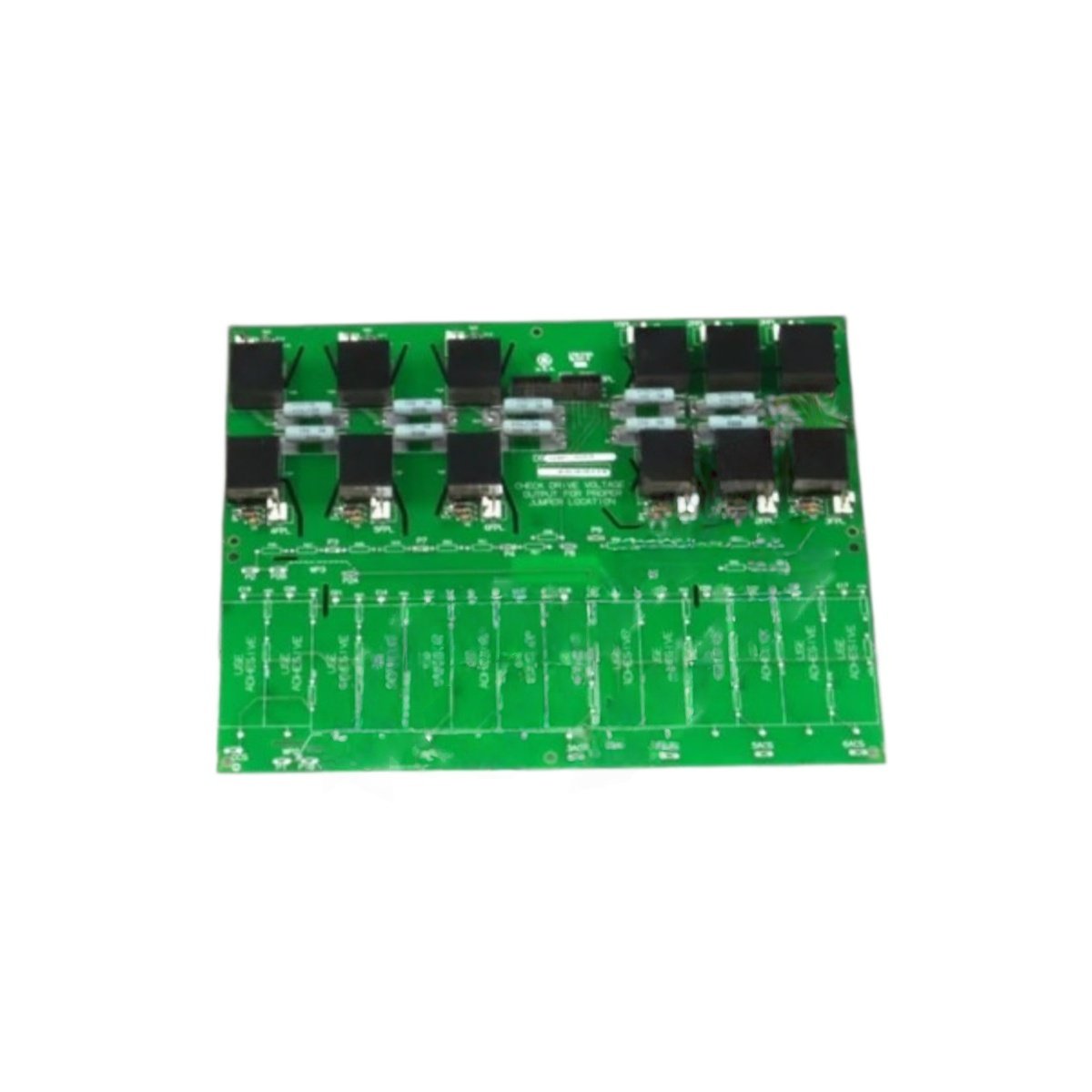

The GE DS200PCCAG5A DS200PCCAG5ADB serves as a power interface card for drive systems. This card connects control boards to the main power structure securely. It routes DC bus voltage and current feedback signals reliably.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | DS200PCCAG5A DS200PCCAG5ADB |
| Category | Power Connect Card |
| Height | 200 mm |
| Width | 100 mm |
| Depth | 20 mm |
| Weight | 0.320 kg |
| Bus Voltage Rating | 600 V DC maximum |
| Bus Current Rating | 100 A continuous |
| Connector Type 1 | 1 x 20-pin (control interface) |
| Connector Type 2 | 2 x 10-pin (power interface) |
| Feedback Signals | Voltage divider, shunt resistor |
| Voltage Feedback Ratio | 100:1 (600 V to 6 V) |
| Current Feedback Ratio | 1000:1 (100 A to 100 mA) |
| Isolation | 2500 V RMS (control to power) |
| Copper Traces | 4 oz (heavy copper) |
| Status Indicators | 1 x red LED (power present) |
| Internal Components | 1 PCB, 4 high-power resistors, 2 connectors, 2 fuses |
| Energy Storage | 100 µF discharge capacitor |
Power Interface Architecture
The GE DS200PCCAG5A DS200PCCAG5ADB connects directly to the drive’s DC bus bars. Heavy copper traces carry up to 100 amperes of continuous current. The card routes bus voltage to control boards for monitoring. It also passes current feedback signals from shunts. The DS200PCCAG5A DS200PCCAG5ADB provides 2500 V RMS isolation between power and control circuits. This isolation protects sensitive electronics from high-voltage transients.
Feedback Signal Conditioning
This power connect card includes a precision voltage divider network. The divider reduces 600 V DC bus to a safe 6 V signal. Two high-power resistors handle the voltage division reliably. A shunt resistor generates a 100 mV signal at 100 A. The GE DS200PCCAG5A DS200CCAG5ADB conditions this signal for the control board. A red LED indicates that bus voltage is present and dangerous.
Protection Features and Fusing
The GE DS200PCCAG5A DS200PCCAG5ADB includes two fast-blow fuses on critical paths. These fuses protect downstream circuits from overcurrent faults. The card also includes a 100 µF discharge capacitor for safety. This capacitor bleeds residual bus voltage after power removal. The DS200PCCAG5A DS200PCCAG5ADB has no battery or active components. Its passive design ensures maximum reliability.
Physical Dimensions and Installation Guidelines
The GE DS200PCCAG5A DS200PCCAG5ADB weighs 0.320 kilograms for secure mounting. Its height measures 200mm, width 100mm, and depth 20mm. Install this card between the DC bus bars and control boards. The card consumes no external power beyond minimal losses. It operates reliably from -20°C to +70°C ambient temperature. Use proper high-voltage safety procedures during installation.
Energy Storage and Discharge Time
The DS200PCCAG5A DS200PCCAG5ADB includes a 100 µF capacitor for energy discharge. This capacitor safely bleeds stored bus voltage after power-down. The capacitor completes discharge within 30 seconds typically. Wait at least one minute before servicing the GE DS200PCCAG5A DS200PCCAG5ADB. Always verify zero voltage with a meter before touching any terminal. No battery is present on this power connect card.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
