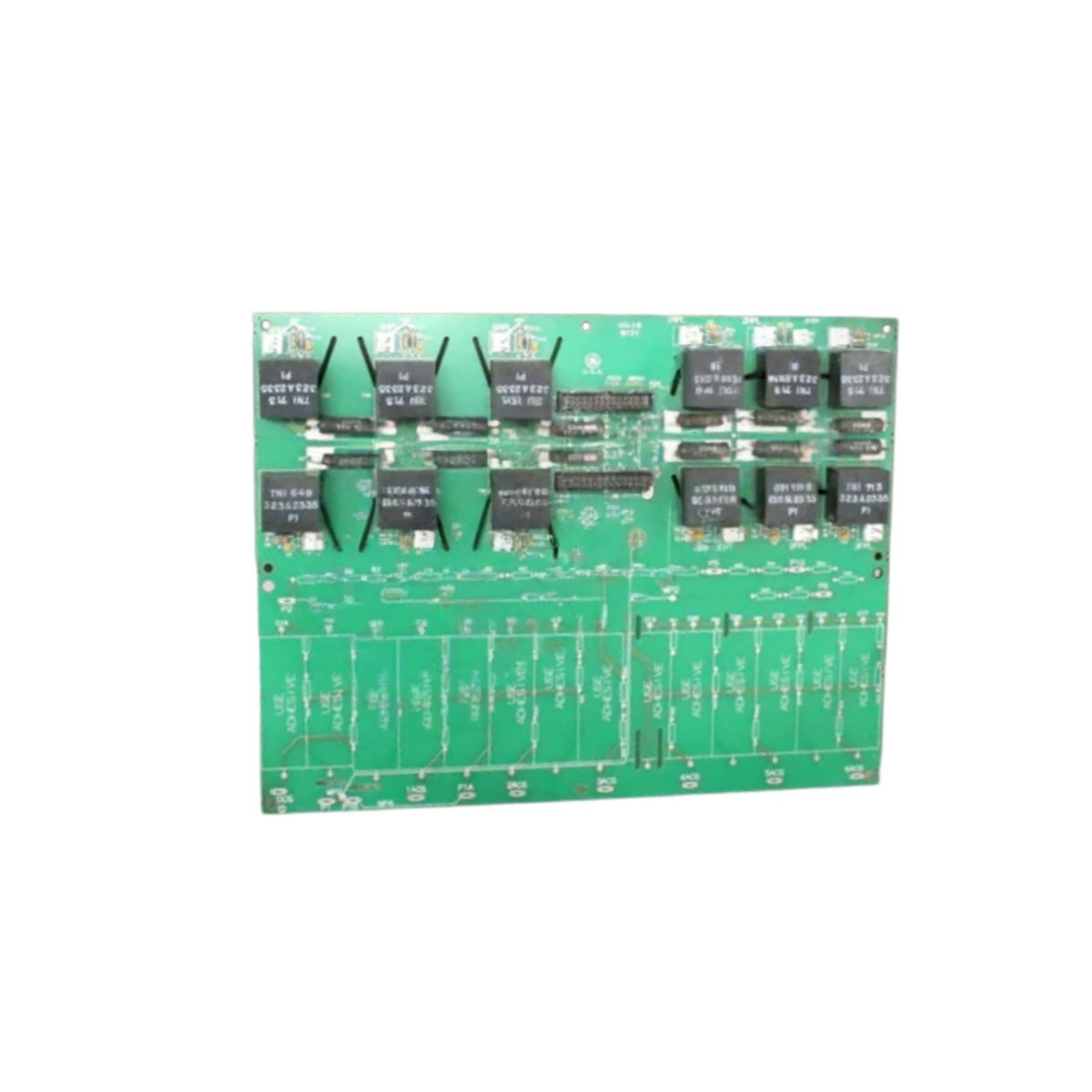

The DS200PCCAG5A DS200PCCAG5ACB distributes DC power within GE Mark V turbine control systems. These boards connect the main power supply to various drive components. You can rely on them for reliable power distribution in critical applications.
Key Technical Parameters
The table below lists all essential technical specifications for this DC power connect board.
| Specification | Details |
|---|---|
| Part Numbers | DS200PCCAG5A DS200PCCAG5ACB |
| Product Type | DC Power Connect Board |
| Compatibility | GE Mark V turbine control series |
| Input Voltage | 125V DC nominal |
| Input Voltage Range | 100V to 150V DC |
| Number of Outputs | 4 fused DC outputs |
| Output Current per Channel | 15 A maximum |
| Fuse Type | 15 A fast-blow (field-replaceable) |
| Number of Components | 8 resistors, 4 diodes, 4 fuses |
| Dimensions (W x H x D) | 280 mm x 80 mm x 25 mm |
| Weight | Approx. 0.50 kg |
| Connector Type | 2 x 32-pin edge connectors |
| PCB Material | FR4 (flame retardant) |
| Coating | Conformal coated |
| Operating Temperature | -20°C to 65°C |
Physical Characteristics and Installation
This DC power connect board weighs approximately 0.50 kg for secure chassis mounting. Its dimensions measure 280 mm x 80 mm x 25 mm for Mark V racks. First, align the DS200PCCAG5A DS200PCCAG5ACB with the backplane connectors. Then, press firmly until the board seats completely. Finally, secure the board using the top and bottom retaining screws. A conformal coating protects the PCB from moisture and dust.
Power Distribution and Component Layout
The DS200PCCAG5A DS200PCCAG5ACB accepts 125V DC nominal input from the main power supply. Four fused outputs distribute DC power to individual drive sections. Each output channel carries up to 15 A for reliable operation. The board contains 8 resistors for current limiting applications. Four diodes provide reverse polarity protection for sensitive circuits. Four field-replaceable fast-blow fuses prevent downstream damage.
Variant Differences and Board Selection
The DS200PCCAG5A DS200PCCAG5ACB units share identical electrical specifications. The “ACB” suffix indicates a revised component layout or newer PCB revision. You can use either variant interchangeably in most Mark V systems. Always verify your existing board revision before ordering a replacement. The operating temperature range spans -20°C to 65°C for harsh turbine environments.
Details
| Weight | 0.45 kg |
|---|---|
| Dimensions | 170 × 145 × 65 mm |
