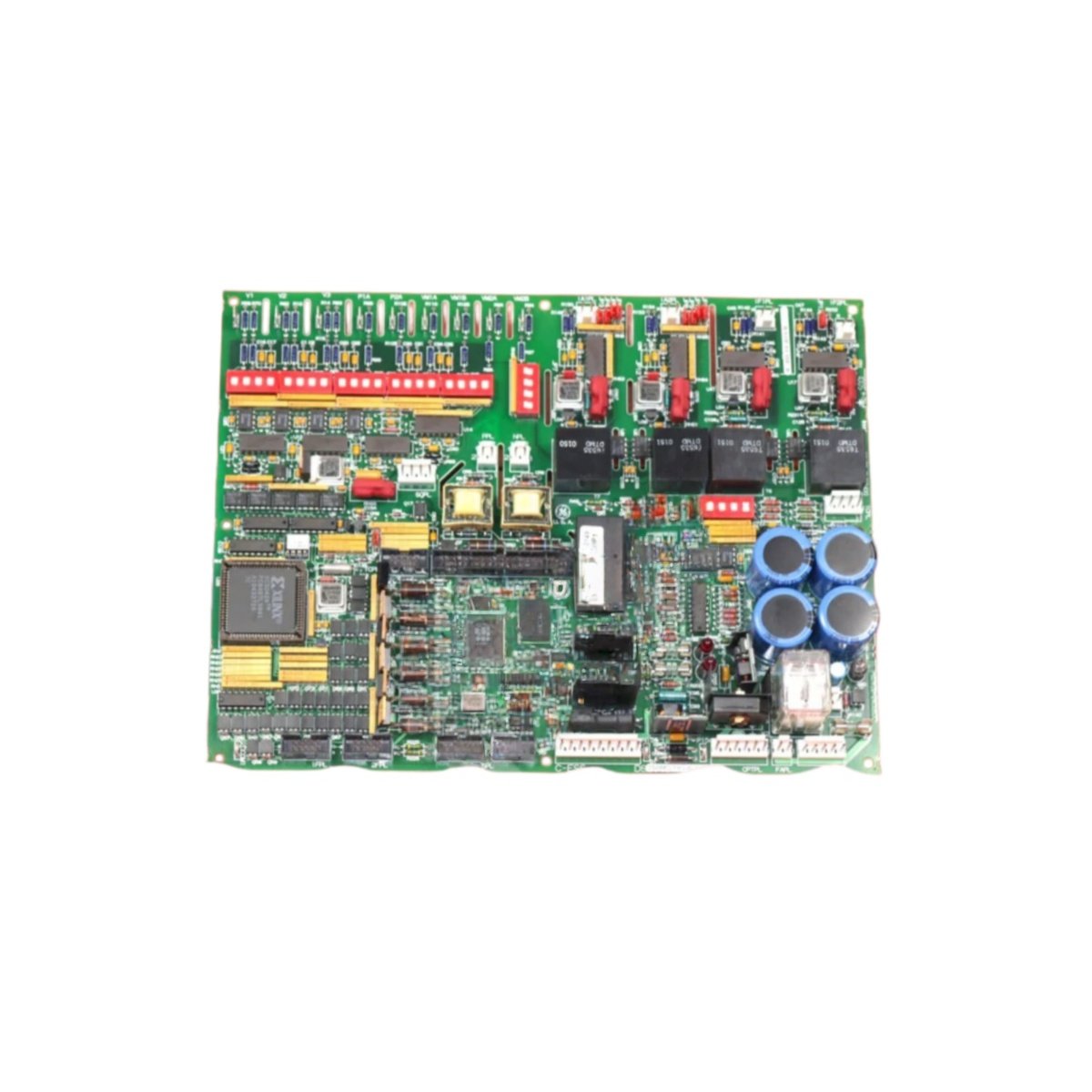

The complete model DS200PCCAG1A DS200PCCAG1ADB manages power distribution connections for Mark V turbine systems. This card routes DC power from supplies to multiple downstream boards. It supports LM6000 and similar gas turbine applications with reliable energy delivery.

Technical Specifications

Power Distribution Features

DS200PCCAG1A DS200PCCAG1ADB accepts three separate input voltage buses. Twelve output channels distribute power to individual circuit cards. Each output includes a 1A fuse for overcurrent protection. The card resides in R1 Core location 2. This placement provides centralized power routing to all adjacent slots.

DS200PCCAG1A DS200PCCAG1ADB features twelve status LEDs for visual monitoring. Six capacitors filter switching noise from power lines. Twelve fuses blow independently to isolate single-card failures. The card prevents a short on one output from affecting others. Each output channel handles standard +5V, +15V, or +24V rails.

Operational Integration

This power connect card works with the main power supply seamlessly. It prioritizes the +5V distribution for processor cards first. DS200PCCAG1A DS200PCCAG1ADB monitors fuse status through LED indicators continuously. Only eight channels see active use in typical configurations. The remaining four outputs serve as spares for future expansion.

Physical and Installation Notes

Manufacturers reference manual GEH-6163 for all installation steps. Each DS200PCCAG1A DS200PCCAG1ADB unit undergoes complete functional testing. We clean every card thoroughly before final shipment. The secondary code DS200PCCAG1ADB appears on the factory identification label. This card weighs approximately 0.8 pound for secure rack mounting.
