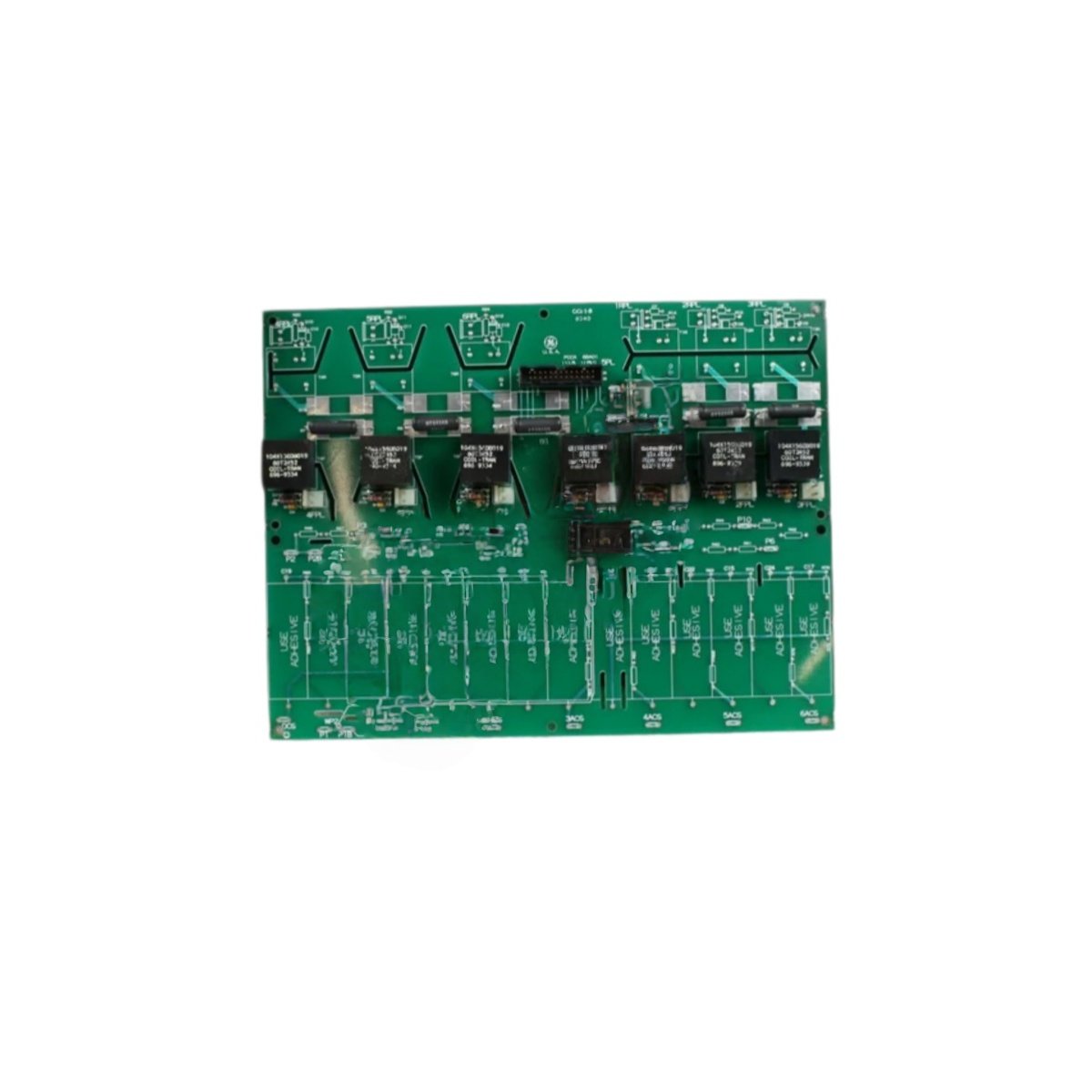

This board distributes control power to multiple turbine drive modules. The DS200PCCAG1A routes voltage through twelve separate output terminals. Its counterpart, the DS200PCCAG1ABB, shares the same internal bus architecture. Both units belong to the Mark V series platform. Each board measures 13.2 inches in length. The width reaches 9.5 inches. Weight sits at approximately 2.1 kilograms.

Technical Specifications for DS200PCCAG1A DS200PCCAG1ABB

The DS200PCCAG1A contains two heavy-duty input connectors. The DS200PCCAG1ABB uses identical power distribution pathways. Each board integrates six high-current relays for load switching. These relays handle up to 10 amperes continuously. Energy storage relies on a 3300µF capacitor bank. This bank prevents voltage drops during sudden load changes. The module operates with a nominal 125V DC bus input. Output channels deliver 24V DC to auxiliary circuits. Sixteen diagnostic LED indicators line the front edge. These lights show relay states and power availability.

Key Features Table

The circuit board uses high-grade FR4 material for reliable isolation. Moreover, it withstands ambient temperatures from -30°C to 60°C. You can mount this board vertically inside the main drive cabinet. Furthermore, the PCB design prevents arc flash between adjacent terminals. Replacement requires no special wiring harnesses for installation. Always verify bus voltage before swapping either board. This component ensures stable power distribution across all loads. Consequently, it reduces the risk of downstream power failures.
