Why This Power Connect Board Distributes DC Bus Voltage

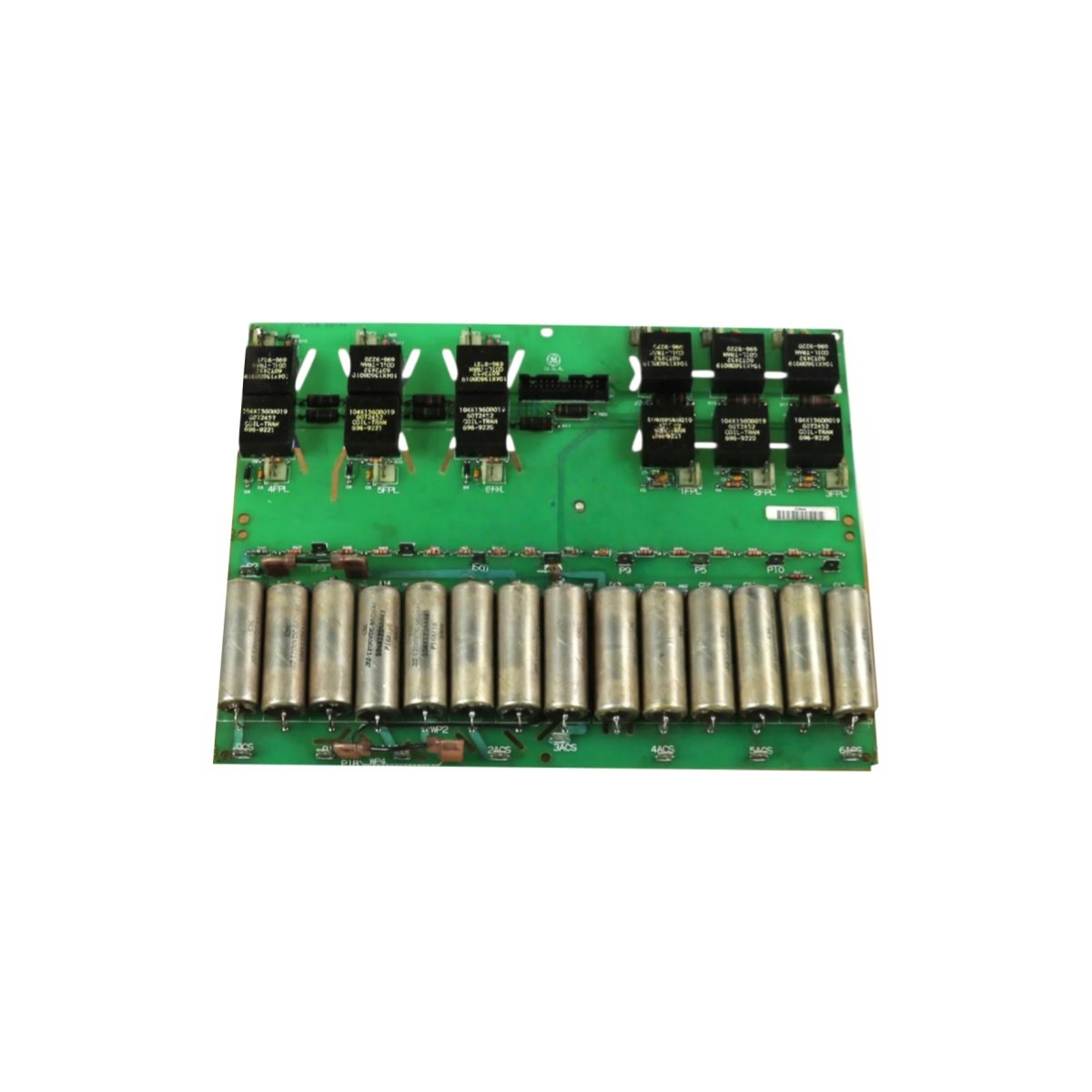

This power connect board distributes DC bus voltage to multiple drive sections. You get a robust GE DS200PCCAG1A DS200PCCAG1AAA for industrial drive systems. It links the rectifier, inverter, and regenerative sections together. Therefore, your system shares power efficiently across all connected modules.
Technical Specifications and Physical Details
The GE DS200PCCAG1A DS200PCCAG1AAA features heavy copper bus bars for low resistance. It includes connection points for external DC link capacitors. This board mounts horizontally inside the main drive cabinet. Its dimensions measure approximately 380 mm in width and 220 mm in height. The unit weighs around 1.25 kg for secure installation. This power board stores no energy on its own. Instead, it simply connects external capacitors and bus bars. Consequently, you need no batteries for this passive distribution component.
Below is the detailed breakdown of the hardware specifications.
| Parameter | Specification |
|---|---|
| Product Model | DS200PCCAG1A DS200PCCAG1AAA |
| Product Type | Power Connect Board |
| Brand | GE (General Electric) |
| Bus Bar Material | Heavy copper |
| Connection Points | Rectifier, inverter, capacitors |
| Function | DC bus voltage distribution |
| Mounting Type | Horizontal chassis mount |
| Dimensions (W x H) | Approx. 380 x 220 mm |
| Approx. Weight | 1.25 kg |
| Energy Storage | None (passive distribution) |
| Component Count | PCB with copper bus bars |
Installation and Integration Notes
This board mounts securely to the drive cabinet back panel. You must tighten all bus bar connections to the specified torque. The GE DS200PCCAG1A DS200PCCAG1AAA requires proper insulation clearances for high voltage. Therefore, keep all wires and tools away from live bus bars. Always discharge the DC link capacitors before touching this board. Lethal voltage remains present for several minutes after power removal.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 273.6 × 214.1 × 59.2 mm |
