Product Overview

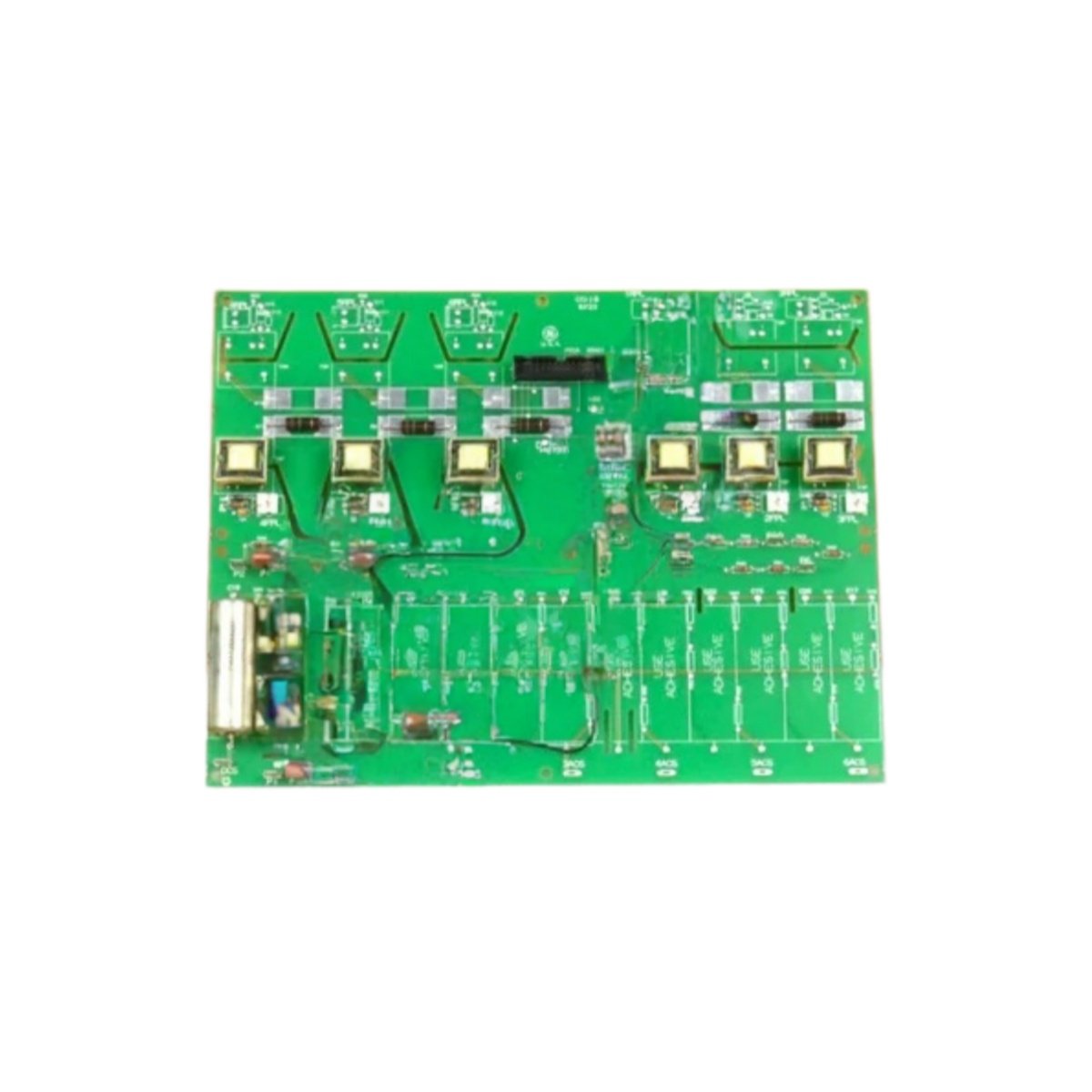

The DS200PCCAG10A DS200PCCAG10ACB distributes DC power across Mark V drive racks. You will find this card in turbine control cabinets and excitation systems. It routes 24V and 48V supplies to multiple I/O boards. Additionally, this card includes individual fuse protection for each output channel. Therefore, a single short circuit does not bring down the entire system.
Technical Specifications
The table below lists all key parameters for this power connection card.
| Parameter | Value / Description |
|---|---|
| Full Model | DS200PCCAG10A DS200PCCAG10ACB |
| Category | Power Connection Card |
| Dimensions (W x H) | 14.0 cm x 10.2 cm (5.51 in x 4.02 in) |
| Weight | 0.52 kg (1.15 lb) |
| Input Power Port | One 6-pin male header |
| Output Terminals | Five 2-pin screw terminal blocks |
| Onboard Components | 12 resistors, 5 fuses (2A each), 3 LEDs |
| Energy Storage | None (no capacitors) |
| Input Voltage | 24V DC and 48V DC (dual rail) |
| Max Current per Output | 2.0 A per fused channel |
| Total Current Capacity | 8.0 A continuous (shared) |
| Status Indicators | Green LED per channel (fuse good) |
| Fuse Type | 5mm x 20mm quick-blow cartridge |
| Mounting | Four 3 mm corner screw holes |
The DS200PCCAG10A DS200PCCAG10ACB stores absolutely no energy onboard. Therefore, you can handle this card immediately after power removal. Use the 6-pin header to receive incoming DC supplies. Meanwhile, each screw terminal provides fused power to one downstream board.
Installation and Compatibility
You can mount this card into any Mark V rack slot. Use four M3 screws to secure the DS200PCCAG10A DS200PCCAG10ACB. Then connect the main DC supply to the 6-pin header. Always install the correct fuse rating before you power up.
The DS200PCCAG10ACB variant includes gold-plated terminals. This version also has higher-grade PCB material for better insulation. Both models replace older PCCAG series cards without rewiring.
Environmental and Safety Data
The DS200PCCAG10A DS200PCCAG10ACB operates from -30°C to +65°C. It withstands 5g vibration per IEC 60068-2-6. The card has no conformal coating on the component side. Consequently, you should install it in a clean, dry cabinet. Replace any blown fuse only with the exact 2A quick-blow type.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
