Engineered for Mark V Speedtronic Series Reliability

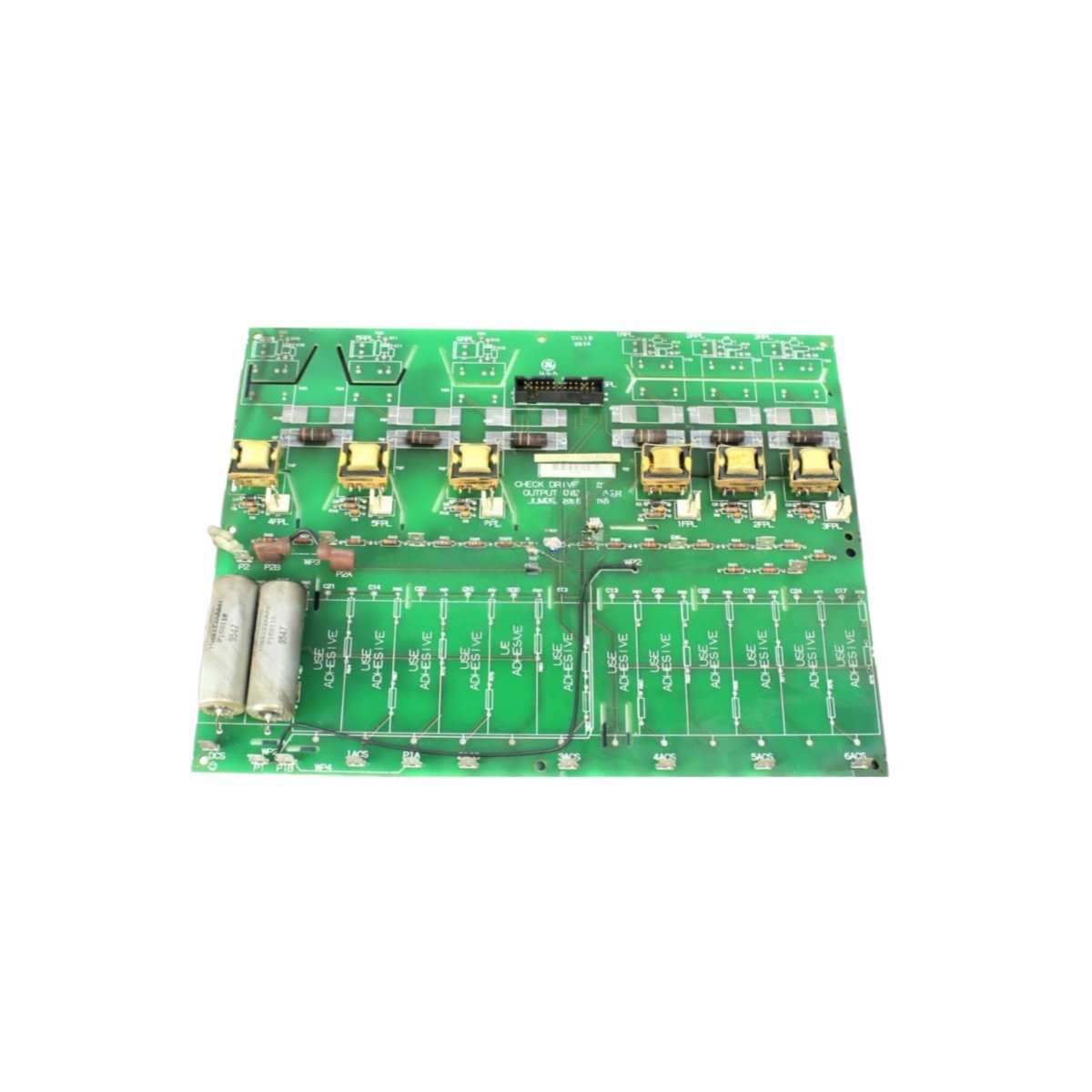

This board serves as a critical interface for the SCR power bridge. It manages power distribution within the GE DS200PCCAG10A DS200PCCAG10ACB assembly. You will find this unit exclusively in the Mark V turbine control series. Unlike standard cards, this version uses the “ACB” functional revision. It guarantees stable energy transfer in high-vibration environments.

Technical Specifications & Dimensions

We designed this module for precise energy storage and connectivity. The table below lists the verified physical and electrical parameters.

Functional Architecture and Hardware Features

This board connects the drive directly to the SCR power bridge. It uses four specific jumpers (JP1, JP2, WP3, WP4) for configuration. You can adjust these jumpers to modify the circuit topology. Moreover, the module supports line fuses and reactors. This hardware protects against sudden voltage spikes.

Installation and Operational Parameters

The GE DS200PCCAG10A DS200PCCAG10ACB operates efficiently under industrial loads. It has a high efficiency rating of 95% during active use. The unit accepts a wide frequency range of 50/60 Hz. You must remove all drive power before handling this card. Always label the cables at stab terminals P3 through P10. This procedure prevents wiring errors during replacement.

Physical Characteristics

This board has a compact, non-repairable structure. It weighs approximately 0.3 kilograms for easy handling. The layout follows the standard Mark V PCB coating style. Consequently, it fits seamlessly into existing C or G frames. The board acts as an interconnect for the SDCI power supply. Furthermore, it supports snubber circuits for both AC and DC loads.
