Engineered for Mark V Speedtronic Bridge Networks

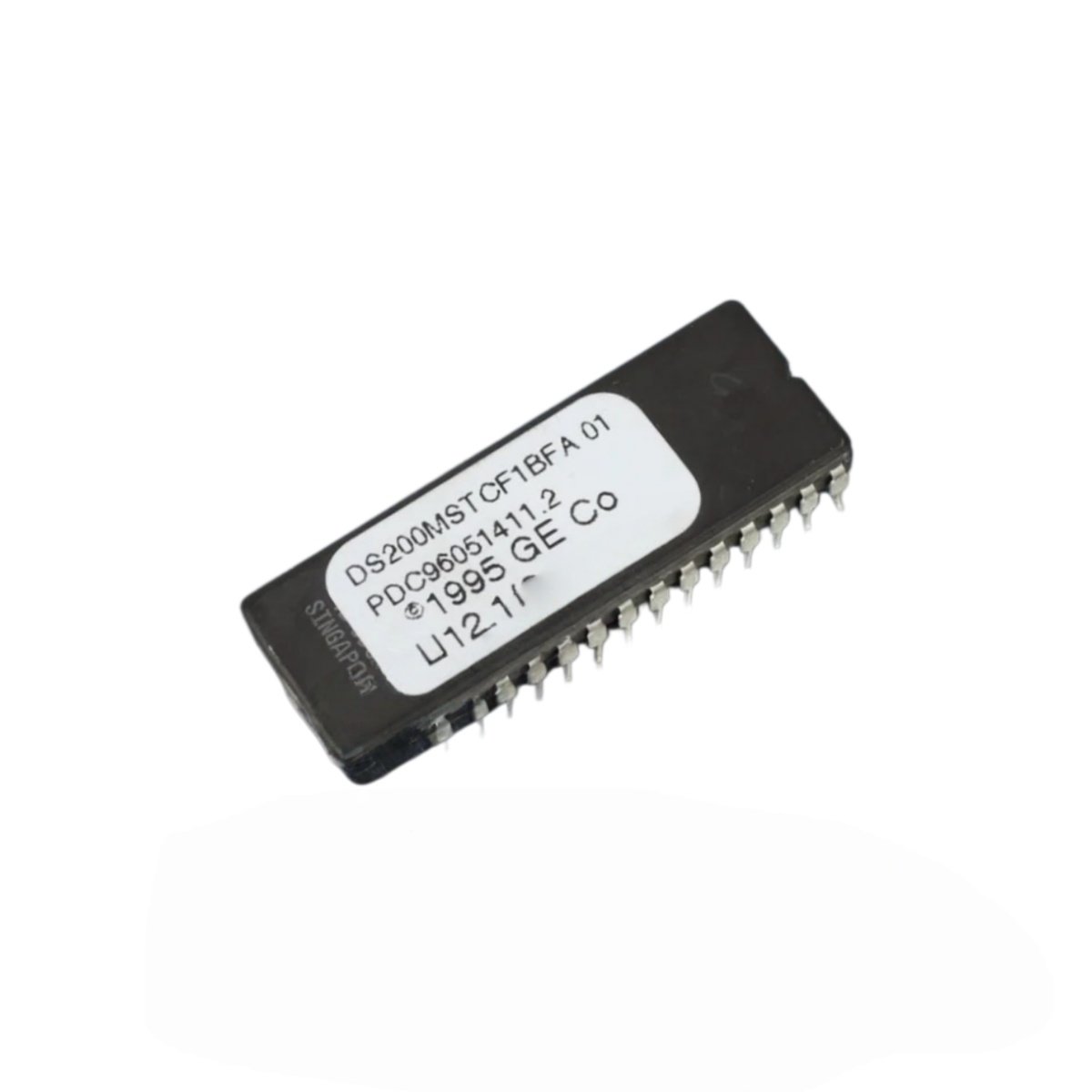

This board coordinates data flow across multiple drive bridges. It acts as the primary communication hub for the GE DS200MSTCF1B DS200MSTCF1BFA module. You will find this unit exclusively in the Mark V turbine control series. Unlike standard comm boards, this version uses the “BFA” functional revision. It guarantees stable signal distribution to six separate bridge interfaces.

Technical Specifications & Physical Dimensions

We designed this communication board for robust data handling. The table below presents all verified technical specifications.

Functional Architecture and Port Configuration

This hub board connects directly to the Mark V backplane. It uses six serial ports for bridge-to-bridge communication. You can configure each port for different protocol speeds. Moreover, the module includes three optical couplers. These components isolate electrical noise from incoming signals. Consequently, the board maintains error-free data transmission under load.

Installation and Operational Guidelines

The GE DS200MSTCF1B DS200MSTCF1BFA operates at 48 MHz clock frequency. It achieves a 97% throughput rate during continuous use. You must check the jumper settings before installing this board. Always align connector labels J1 through J6 correctly. This procedure prevents signal crossover between bridge channels. Furthermore, the board supports firmware upgrades via the backplane. This feature extends the product’s lifecycle significantly.

Physical Characteristics and Environmental Limits

This communication board has a multi-layer, non-repairable PCB design. Its lightweight 0.31 kg structure allows for easy field replacement. The layout follows GE’s standard Mark V coating specifications. Therefore, it fits seamlessly into C-frame or G-frame cabinets. The board includes diagnostic LEDs for each port. In addition, it maintains stable operation between -25°C and 60°C ambient temperature. You can store this unit safely up to 85°C.
