Technical Specifications
| Parameter | Value |
|---|---|
| Brand | GE |
| Model | DS200LUVAG1A DS200LUVAG1AFD |
| Category | Genius Controller |
| Weight | 1.86 lbs (0.84 kg) |
| Dimensions | 9.6 x 5.8 x 2.2 inches |
| PCB Layers | 8-layer board |
| Component Count | 398 discrete components |
| Processor Type | 32-bit RISC |
| Clock Speed | 80 MHz |
| Protocol | Genius LAN (proprietary) |
| Communication Speed | 153.6 kbps |
| Network Distance | 7500 feet maximum |
| Node Capacity | 32 devices per network |
| Memory | 1 MB flash, 512 KB SRAM |
| I/O Capacity | 256 digital or 64 analog |
| Status LEDs | 6 indicators |
| Operating Voltage | 5V DC from backplane |
| Current Draw | 850 mA at 5V DC |
| Energy Storage | 8 x 470µF, 6 x 100µF |
| Battery Backup | 3.6V lithium (7 years) |
| Temperature Range | 0°C to 55°C |
Physical Construction and Component Layout

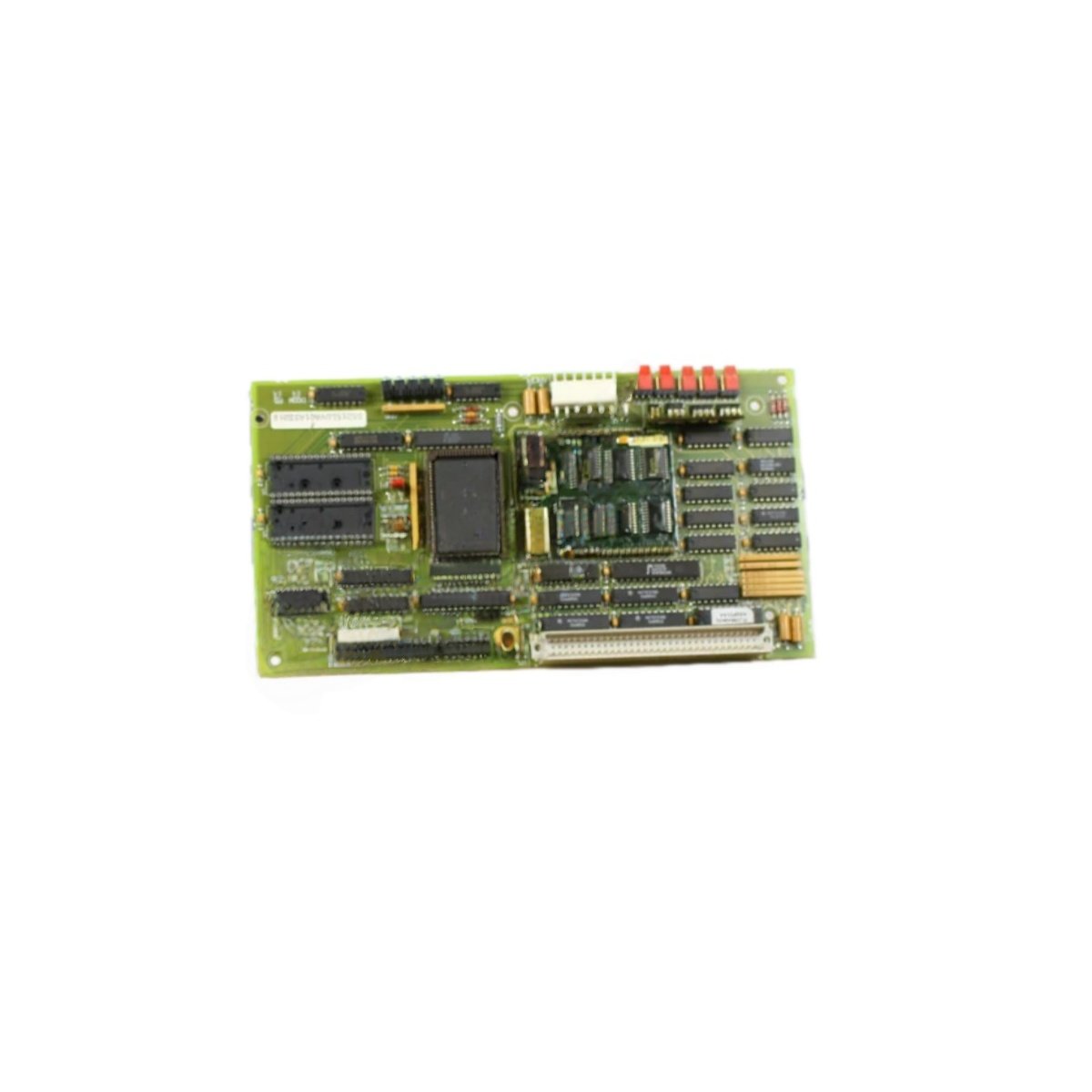

This DS200LUVAG1A DS200LUVAG1AFD Genius controller measures 9.6 inches in length. Its width reaches 5.8 inches with a thickness of 2.2 inches. The total weight comes to approximately 1.86 pounds. Manufacturers placed 398 discrete components on this eight-layer PCB. These components include a 32-bit RISC CPU, memory banks, Genius transceiver, and isolation circuits. Both DS200LUVAG1A and DS200LUVAG1AFD share the same Genius controller architecture.
Network Specifications and Communication Performance
DS200LUVAG1A DS200LUVAG1AFD implements the proprietary Genius LAN protocol. The communication speed runs at 153.6 kilobits per second reliably. Network distance reaches up to 7500 feet using shielded cable. Each Genius network supports up to 32 connected devices. The controller manages I/O points efficiently across the network. I/O capacity handles 256 digital points or 64 analog channels. Consequently, this board serves as a powerful network master for distributed I/O.
Processing Power and Memory Resources
DS200LUVAG1A DS200LUVAG1AFD features a 32-bit RISC processor running at 80 MHz. Program memory includes 1 MB of flash for communication firmware. Data memory provides 512 KB of SRAM for network variables. A 3.6V lithium battery backs up the SRAM contents. This battery maintains data for approximately 7 years. Six LED indicators show network and controller status clearly. Green LEDs indicate power, run, and network activity. Red LEDs signal fault or communication error conditions.
Energy Storage and Application Use
DS200LUVAG1A DS200LUVAG1AFD integrates eight 470µF capacitors for bulk energy storage. Six additional 100µF capacitors filter high-frequency power noise. The board draws 850 milliamps from the 5V DC backplane supply. You will find this controller in GE Genius distributed I/O systems. It coordinates communication between the main PLC and remote I/O blocks. The board operates reliably from 0°C to 55°C ambient temperature. For example, it connects field devices across large factory floors. Therefore, this Genius controller provides robust distributed control for GE automation networks.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 273.6 × 214.1 × 59.2 mm |
