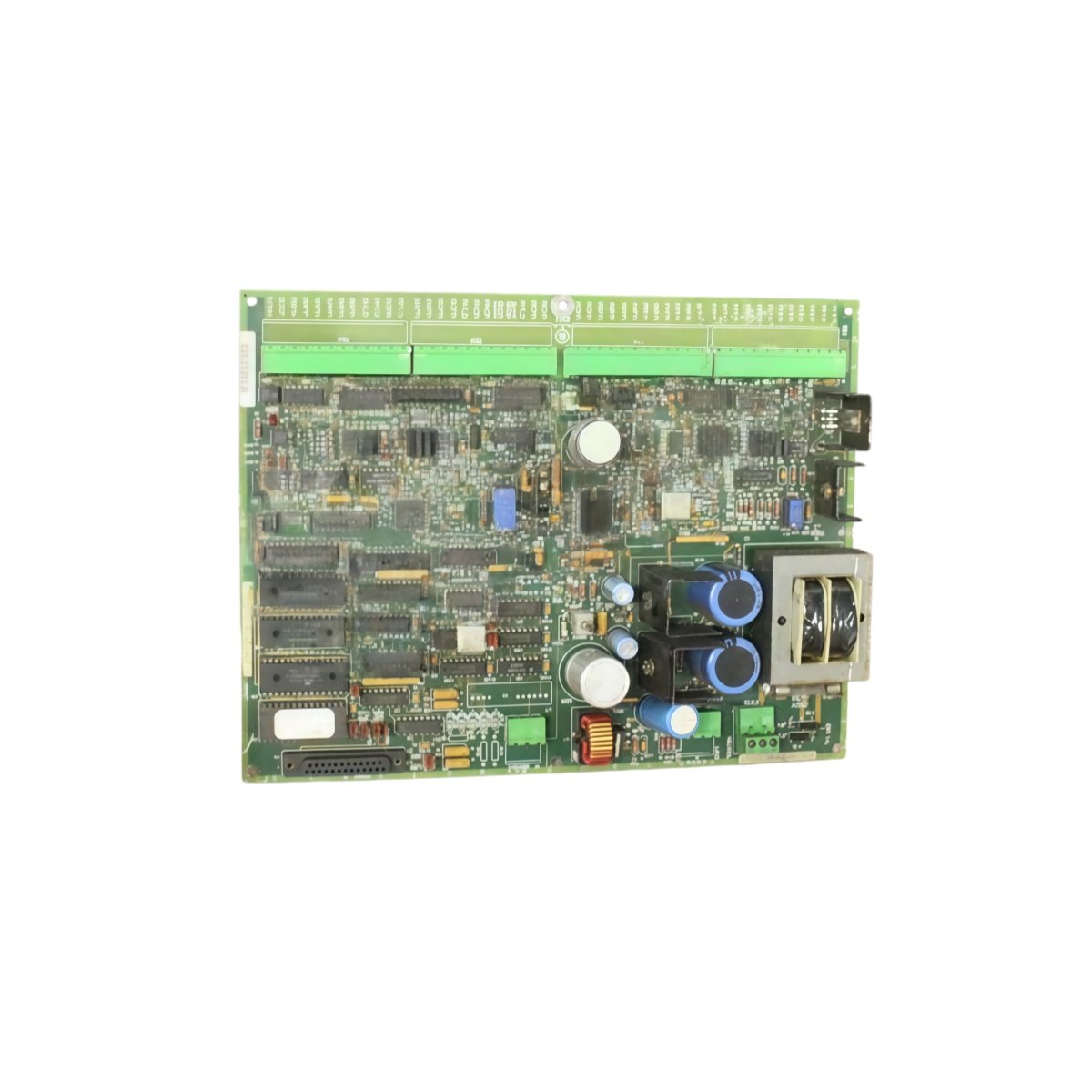

The DS200LRPAG2A DS200LRPAG2AGF handles multiple I/O functions for GE Mark V turbine systems. This board processes digital and analog signals from field devices. You can rely on it for comprehensive turbine monitoring and control tasks.
Key Technical Parameters
The table below lists all essential technical specifications for this multi I/O board.
| Specification | Details |
|---|---|
| Part Numbers | DS200LRPAG2A DS200LRPAG2AGF |
| Product Type | Multi Input/Output Board |
| Compatibility | GE Mark V turbine control series |
| Digital Inputs | 16 channels (24V DC) |
| Digital Outputs | 8 channels (relay, 2A) |
| Analog Inputs | 4 channels (0-10V, 4-20mA) |
| Analog Outputs | 2 channels (0-10V, 4-20mA) |
| Resolution (Analog) | 12 bits |
| Isolation | 1500V AC (channel to bus) |
| Number of Components | 8 ICs, 24 capacitors, 18 resistors |
| Dimensions (W x H x D) | 280 mm x 80 mm x 25 mm |
| Weight | Approx. 0.58 kg |
| Connector Type | 2 x 50-pin backplane connectors |
| PCB Material | FR4 with conformal coating |
| Operating Temperature | -20°C to 65°C |
Physical Characteristics and Installation
This multi I/O board weighs approximately 0.58 kg for secure rack mounting. Its dimensions measure 280 mm x 80 mm x 25 mm for Mark V racks. First, align the DS200LRPAG2A DS200LRPAG2AGF with the backplane connectors. Then, press firmly until the board seats completely. Finally, secure the board using the top and bottom retaining screws. A conformal coating protects the PCB from moisture and dust.
Digital and Analog I/O Specifications
The DS200LRPAG2A DS200LRPAG2AGF provides 16 digital input channels for discrete signals. Eight relay outputs switch external loads up to 2 A each. Four analog inputs accept 0-10V or 4-20mA from field sensors. Two analog outputs drive actuators with 0-10V or 4-20mA signals. A 12-bit resolution ensures precise analog conversion for critical measurements.
Component Layout and Board Variants
This board contains 8 integrated circuits for logic and signal conditioning. Twenty-four capacitors provide power filtering and noise suppression. Eighteen resistors establish proper signal levels and termination. The DS200LRPAG2A DS200LRPAG2AGF units share identical electrical specifications. The “AGF” suffix indicates a revised PCB layout or newer component revision. 1500V AC isolation protects the controller from field wiring faults.
Details
| Weight | 0.45 kg |
|---|---|
| Dimensions | 170 × 145 × 65 mm |
