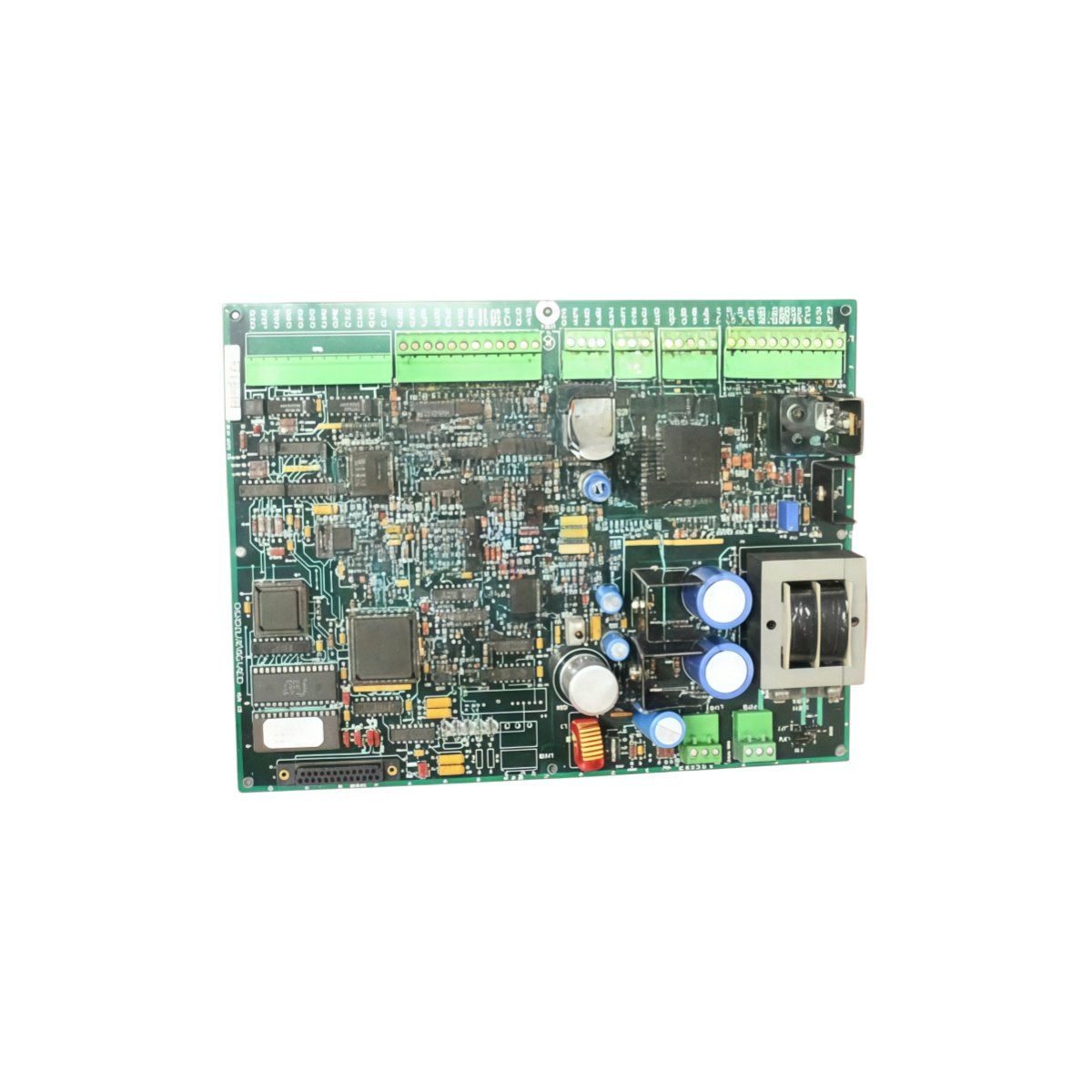

The DS200LRPAG1A DS200LRPAG1ADD provides line protection functions for GE Mark V turbine systems. This card monitors voltage and current on critical power lines. You can rely on it for fault detection and system isolation tasks.
Key Technical Parameters
The table below lists all essential technical specifications for this line protection card.
| Specification | Details |
|---|---|
| Part Numbers | DS200LRPAG1A DS200LRPAG1ADD |
| Product Type | Line Protection Card |
| Compatibility | GE Mark V turbine control series |
| Voltage Monitoring | 3 phases, 0-600V AC |
| Current Monitoring | 3 phases, 0-5A AC |
| Frequency Range | 45 Hz to 65 Hz |
| Protection Functions | Overvoltage, undervoltage, overcurrent |
| Trip Time | < 50 ms (typical) |
| Number of Components | 6 ICs, 15 capacitors, 22 resistors |
| Dimensions (W x H x D) | 260 mm x 75 mm x 25 mm |
| Weight | Approx. 0.44 kg |
| Connector Type | 2 x 50-pin backplane connectors |
| PCB Material | FR4 with conformal coating |
| Operating Temperature | -20°C to 65°C |
| Storage Temperature | -40°C to 85°C |
Physical Characteristics and Installation
This line protection card weighs approximately 0.44 kg for secure rack mounting. Its dimensions measure 260 mm x 75 mm x 25 mm for Mark V racks. First, align the DS200LRPAG1A DS200LRPAG1ADD with the backplane connectors. Then, press firmly until the card seats completely. Finally, secure the card using the top and bottom retaining screws. A conformal coating protects the PCB from harsh turbine environments.
Voltage and Current Monitoring
The DS200LRPAG1A DS200LRPAG1ADD monitors three voltage phases from 0 to 600V AC. Three current inputs accept standard 0 to 5A AC from CTs. The frequency range spans 45 Hz to 65 Hz for worldwide compatibility. An embedded microcontroller analyzes all incoming signals continuously. Consequently, the card detects anomalies within milliseconds of occurrence.
Protection Functions and Trip Characteristics
This line protection card provides overvoltage protection for system safety. Undervoltage detection prevents equipment damage during brownout conditions. Overcurrent monitoring safeguards against short circuits and overloads. The typical trip time stays under 50 ms for fast fault clearing. The DS200LRPAG1A DS200LRPAG1ADD units share identical electrical specifications. The “ADD” suffix indicates a revised PCB layout or newer component revision.
Details
| Weight | 0.45 kg |
|---|---|
| Dimensions | 254 × 178 × 5 mm |
