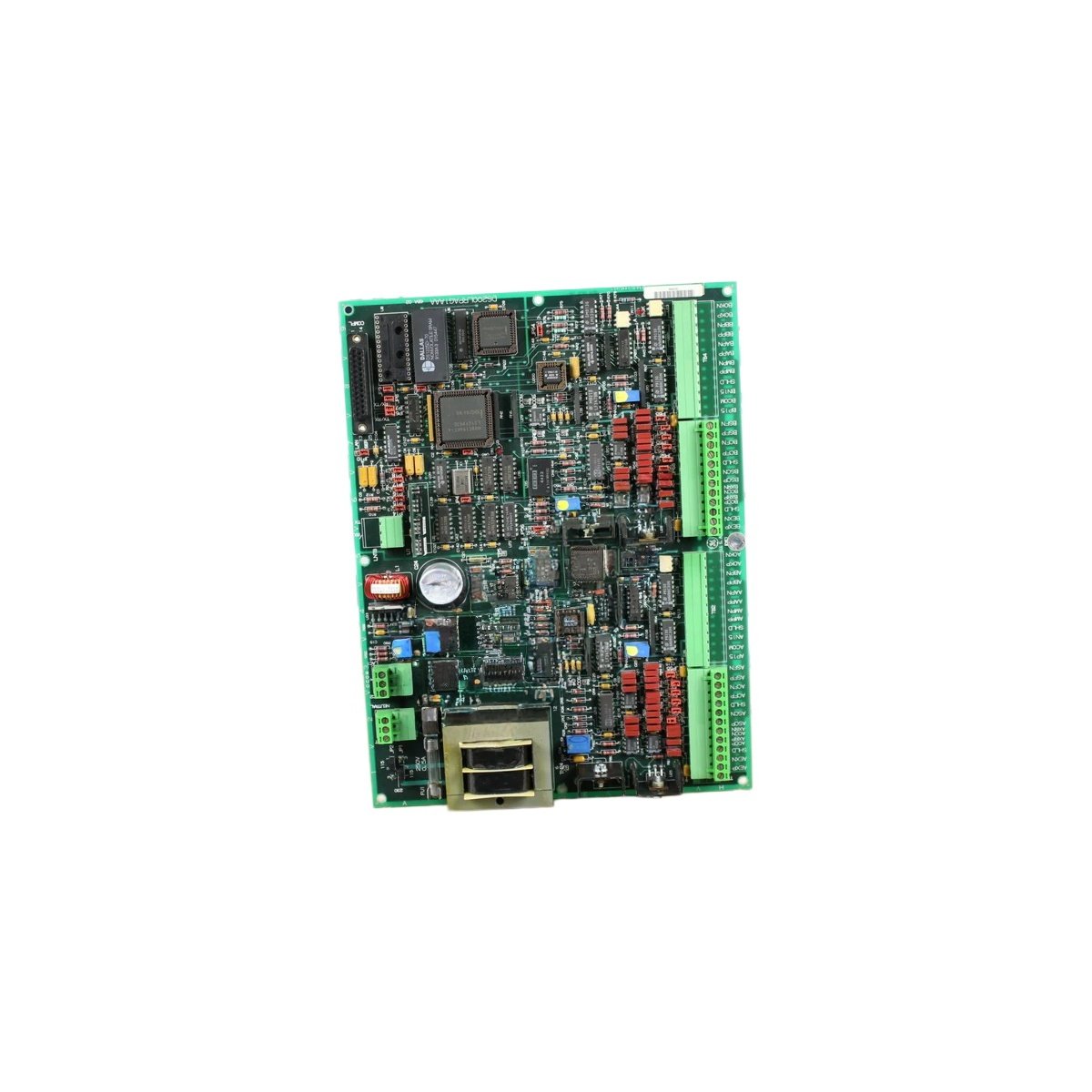

This card provides overcurrent protection for turbine control circuits. The DS200LRPAG1A monitors multiple input channels continuously. Its counterpart, the DS200LRPAG1AAA, shares identical electrical characteristics and dimensions. Both units belong to the Mark V series platform. Each card measures 10.2 inches in length. The width reaches 5.8 inches. Weight sits at approximately 0.9 kilograms.

Technical Specifications for DS200LRPAG1A DS200LRPAG1AAA

The DS200LRPAG1A integrates six independent protection channels. The DS200LRPAG1AAA uses the same circuit layout and component configuration. Each card contains twelve resistors for current sensing. Energy storage relies on a 2200µF capacitor bank. This bank maintains stable voltage during transient surges. The module operates with a nominal 24V DC input. Response time reaches under 5 milliseconds. Five diagnostic LED indicators sit on the front edge. These lights show channel status and fault conditions.

Key Features Table

The circuit board uses high-grade FR4 material for reliable insulation. Moreover, it withstands ambient temperatures from -25°C to 60°C. You can mount this card directly into the rack without extra brackets. Furthermore, the PCB layout prevents cross-channel interference effectively. Replacement requires no special programming tools for installation. Always verify firmware compatibility before swapping either card. This component significantly reduces damage from overcurrent events. Consequently, it protects downstream turbine electronics reliably.
