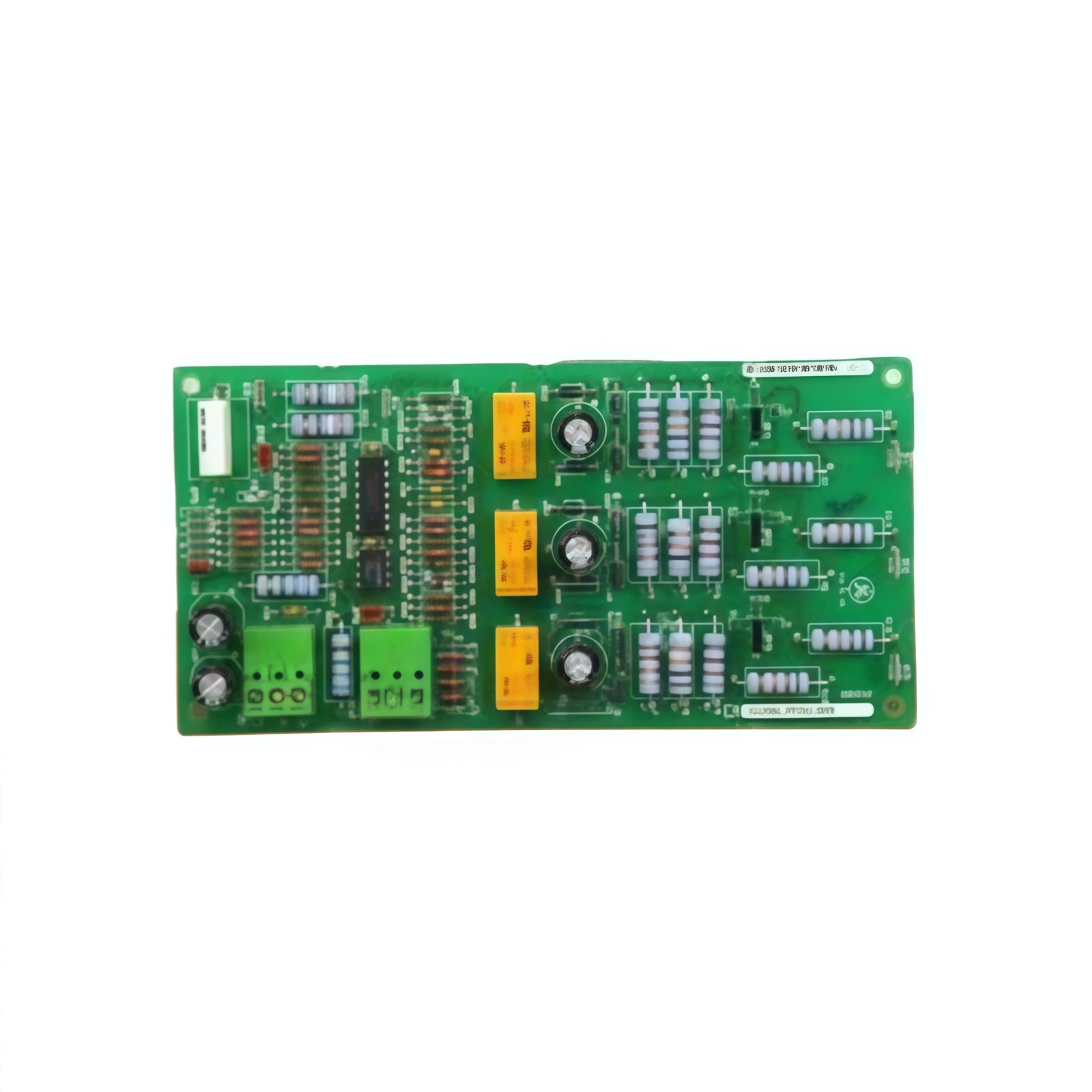

The complete model DS200LPPAG1A DS200LPPAG1ABA monitors power line conditions for Mark V turbine systems. This card detects voltage anomalies and frequency deviations quickly. It protects generator and utility interconnect circuits from damage.

Technical Specifications

Protection Features

DS200LPPAG1A DS200LPPAG1ABA monitors all three voltage phases continuously. Its eight capacitors filter harmonic noise from incoming signals. The card detects overvoltage, undervoltage, and frequency drift quickly. also senses phase imbalance and reverse power conditions. Four relays trip external breakers when faults occur.

This protection card resides in R1 Core location 8. The placement ensures fast response to line disturbances.  compares real-time measurements against programmable thresholds. It triggers alarms before reaching critical fault levels. The card stores fault event data for later analysis.

Operational Integration

The line protection card works with the main turbine controller seamlessly. It prioritizes generator synchronization signals above all else. DS200LPPAG1A DS200LPPAG1ABA coordinates with upstream protection devices. Only two relays see active use in typical configurations. The remaining two relays serve backup protection roles.

Physical and Installation Notes

Manufacturers reference manual GEH-6201 for all installation steps. Each DS200LPPAG1A DS200LPPAG1ABA unit undergoes full functional testing. We clean every board before final shipment. The secondary code DS200LPPAG1ABA appears on the factory label. This board weighs approximately 1.3 pounds for secure mounting.
