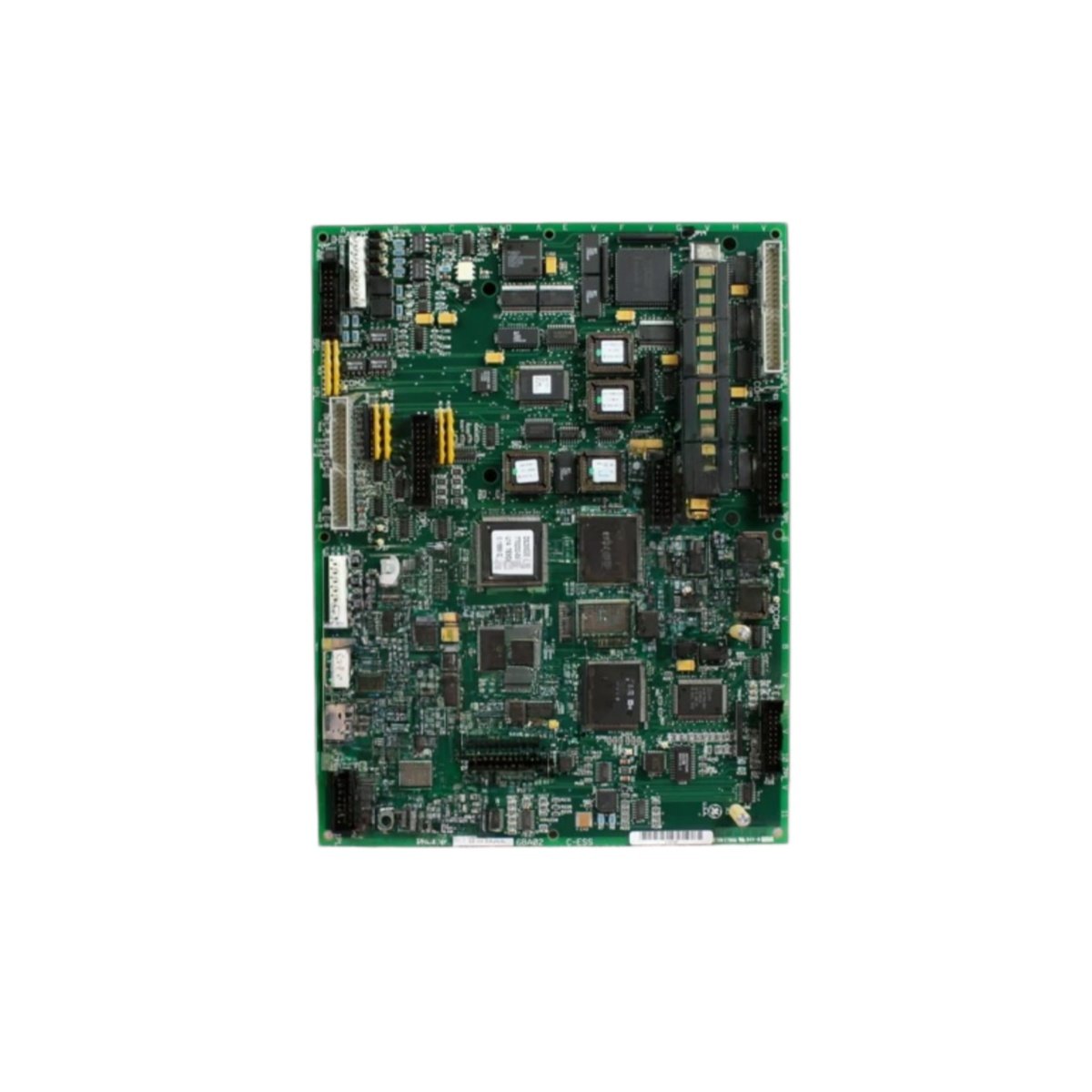

This board manages Ethernet communication for turbine control networks. The DS200LDCCH1A handles data exchange between multiple drive modules. Its counterpart, the DS200LDCCH1ARA, uses identical firmware and hardware layouts. Both units belong to the Mark V series platform. Each board measures 9.8 inches in length. The width reaches 6.5 inches. Weight sits at approximately 0.8 kilograms.

Technical Specifications for DS200LDCCH1A DS200LDCCH1ARA

The DS200LDCCH1A provides two independent LAN ports. The DS200LDCCH1ARA shares the same communication controller chip. Each board contains one 10/100 Mbps Ethernet transceiver. Energy storage relies on a 470µF capacitor bank. This bank maintains stable voltage during network surges. The module operates with a nominal 5V DC logic supply. Data transfer supports full duplex on both channels. Four RJ45 connectors sit on the front panel. Eight diagnostic LED indicators show link activity and speed.

Key Features Table

The circuit board uses high-grade FR4 material for signal integrity. Moreover, it withstands ambient temperatures from -20°C to 55°C. You can mount this board horizontally inside the main rack. Furthermore, the PCB layout reduces electromagnetic interference between traces. Replacement requires no special network configuration tools. Always verify IP settings before swapping either board. This component improves turbine control network reliability significantly. Consequently, it ensures uninterrupted data flow between all modules.
