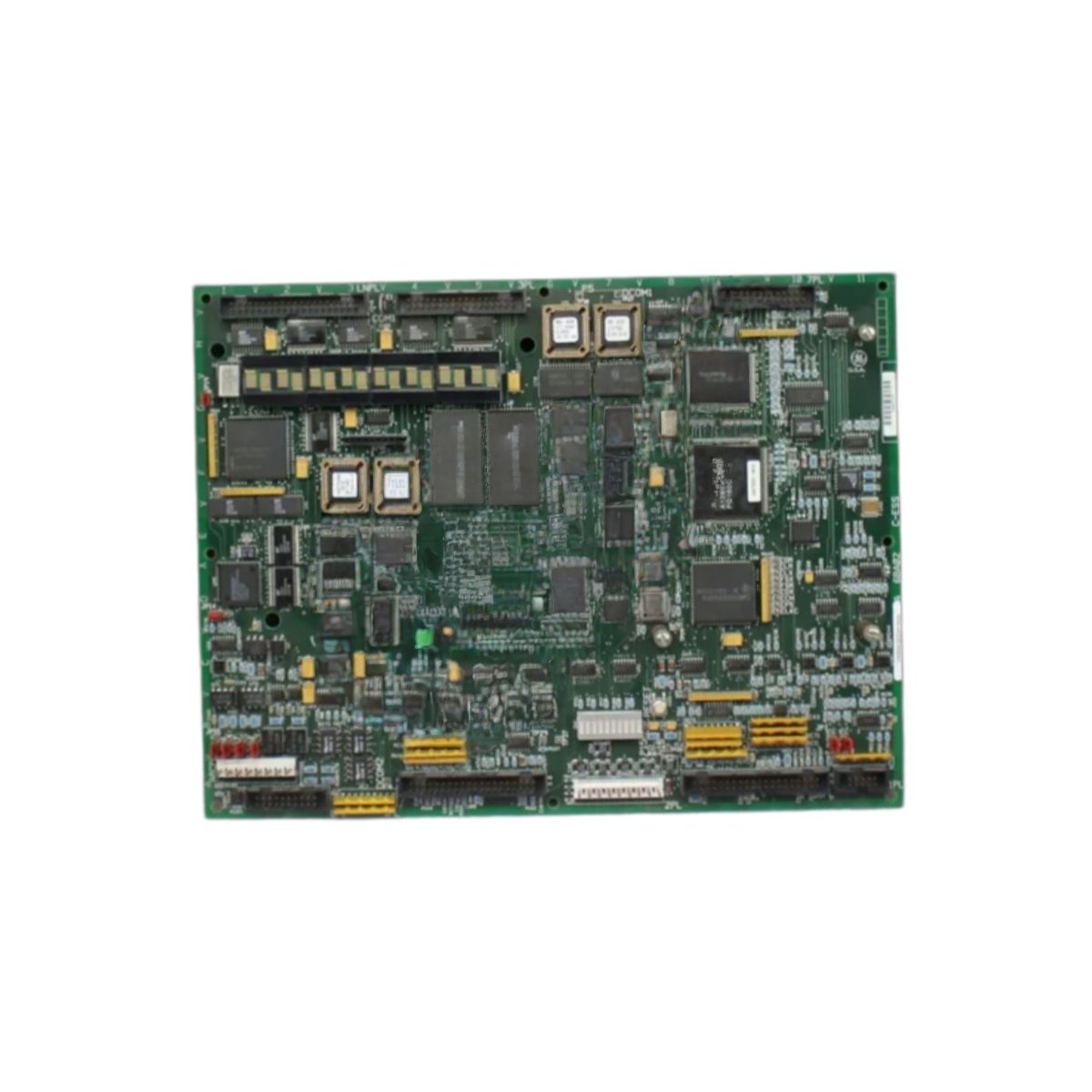

This LAN drive control card manages network communication between multiple drive units. It coordinates control signals and data exchange across the drive network. The unit mounts inside the drive cabinet as a network interface card.
Technical specifications
| Parameter | Specification |
|---|---|
| Brand | GE Energy |
| Model 1 | DS200LDCCH1A |
| Model 2 | DS200LDCCH1ANA |
| Product Family | Mark V / Drive Control |
| Category | LAN Drive Control Card |
| PCB Layer Count | 6 layers |
| Base Material | High-Tg FR-4 |
| Processor Type | 32-bit microcontroller |
| Processor Speed | 66 MHz |
| Network Protocol | Ethernet / ARCNET |
| Communication Ports | 2 x Ethernet (RJ-45), 1 x fiber optic |
| Data Rate | 10/100 Mbit/s (Ethernet) |
| Memory | 1 MB Flash, 512 KB RAM |
| Component Count | Approximately 135 components |
| Integrated Circuits | 18 ICs (processor, transceivers, memory) |
| Connector Types | 2 x RJ-45, 1 x fiber port, 2 x headers |
| Power Supply | 24V DC external |
| Current Consumption | 280 mA typical |
| Status Indicators | 6 x LEDs (PWR, RUN, LINK, TX, RX, FLT) |
| Test Points | 8 gold-plated test points |
| Energy Storage | 6 x electrolytic capacitors (100 µF each) |
| Dimensions (L x W) | Approx. 26 cm x 18 cm |
| Thickness | Approx. 2 cm |
| Weight | Approx. 0.38 kg |
| Operating Temperature | 0°C to 55°C |
| Mounting | 4 x screw holes (M4) |
Detailed Technical Analysis
This LAN drive control card uses a 66 MHz 32-bit processor for network management. It handles communication between multiple drives in a coordinated system. The card supports both Ethernet at 10/100 Mbit/s and fiber optic ARCNET. It stores its firmware in 1 MB of flash memory permanently.
Now let us examine its network capabilities. The card includes two RJ-45 Ethernet ports for daisy-chaining drives. A fiber optic port provides noise-immune communication for harsh environments. Approximately 135 components populate both sides of this 6-layer PCB. Eighteen integrated circuits include the processor and network transceivers.
This control card draws 280 milliamps from a 24V DC external supply. Six LEDs show power, run, link, transmit, receive, and fault status. Eight gold-plated test points allow network signal verification. Six electrolytic capacitors filter the power supply for stable operation.
Installation and Connection Guidelines
You mount this card using four M4 screws with insulating standoffs. Connect the 24V DC power supply to the designated terminal block. Attach Ethernet cables to the RJ-45 ports for network connectivity. Use fiber optic cable for long-distance or high-noise connections.
Configure the network parameters through the drive programming software. Set the IP address and node ID for proper network operation. The card automatically negotiates link speed with connected devices. Always power down the drive before inserting or removing this card.
Practical Applications
Engineers use this LAN card for multi-drive coordination and networking. It links multiple drives for synchronized motion control applications. This component also works in legacy drive upgrade projects. Its dual network ports suit daisy-chain drive network configurations.
Summary of Features
To conclude, this LAN drive card supports Ethernet at 10/100 Mbit/s with a 66 MHz processor. It weighs 0.38 kilograms and draws 280 milliamps at 24V. Choose DS200LDCCH1A DS200LDCCH1ANA for reliable drive network communication.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
