Technical Overview

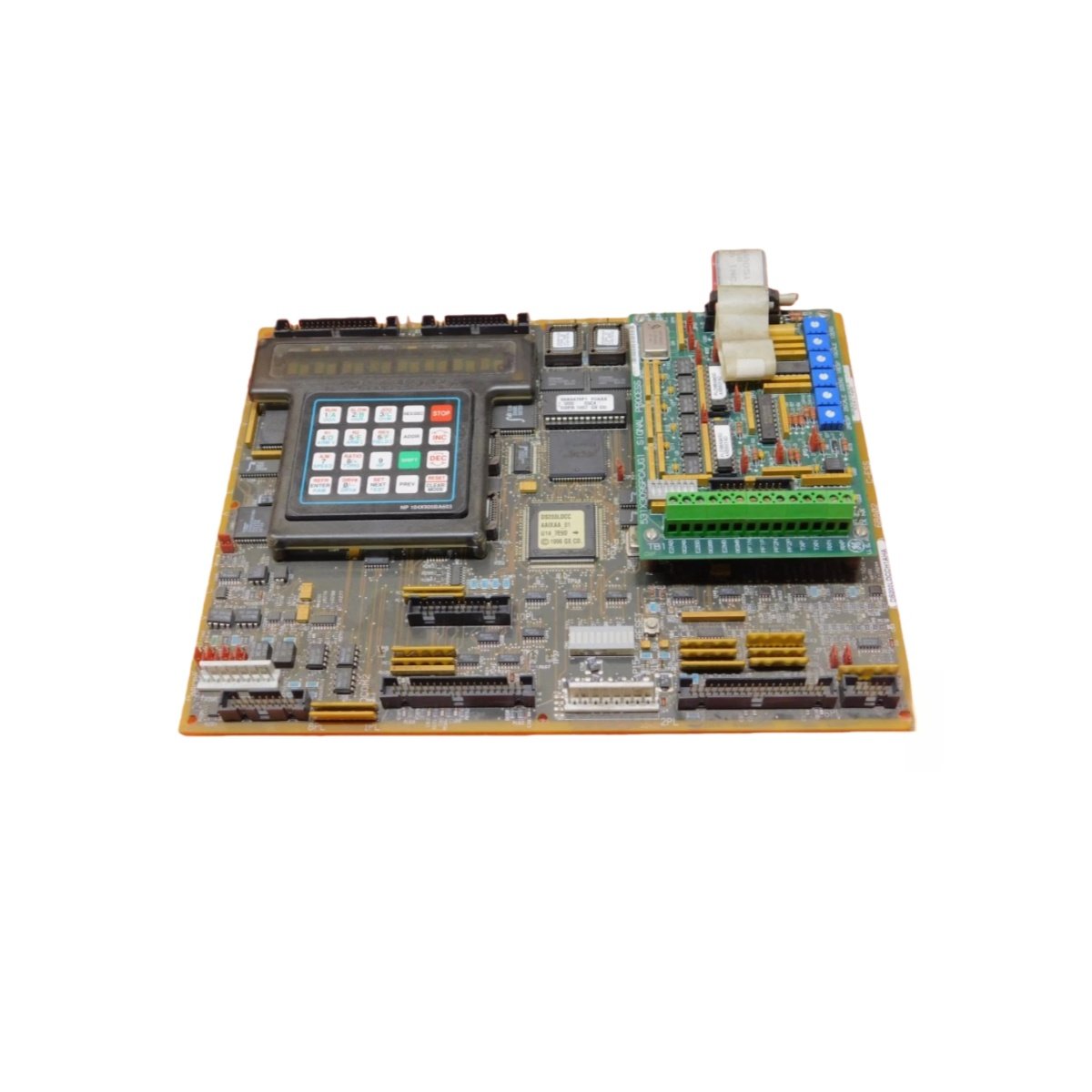

The GE DS200LDCCH1 functions as a dedicated LAN communication interface for the Mark V series drive systems. This control card manages data exchange between the main processor and remote I/O modules. It provides a reliable physical layer for industrial Ethernet networks. Engineers often use this board in turbine and generator control applications.

Key Specifications

The DS200LDCCH1 measures 254 mm in length and 177.8 mm in width. Its standard PCB form factor fits directly into the Mark V drive rack. The board weighs approximately 0.5 kilograms. It operates on a +5V DC supply with a maximum current draw of 1.2 A.

Communication and Interface Design

The GE DS200LCC H1 integrates one RJ45 Ethernet port and one DB9 serial connector. The RJ45 port supports the proprietary LAN protocol for high-speed data transfer. The DB9 port allows direct serial access for diagnostics and configuration. Four front-panel LEDs provide immediate visual feedback for power, network link, data activity, and fault conditions. The board stores firmware in 256 KB of Flash memory. It also uses 64 KB of SRAM for temporary data buffering. A 33 μF backup capacitor preserves essential settings during brief power losses. This capacitor ensures a smooth restart without reinitialization.

Installation and System Integration

Installing the DS200LDCCH1 requires an available slot in the Mark V drive cabinet. The board connects to the backplane via its edge connector. It interfaces with the main CPU through the internal VME-like bus. The RJ45 port links to the plant’s control network via standard CAT5 cabling. The DB9 port provides a convenient point for laptop-based troubleshooting. This board operates reliably between 0°C and 55°C ambient temperatures. Its design resists vibration and electromagnetic interference typical of industrial environments. Proper grounding ensures stable communication performance.

Reliability and Maintenance

The DS200LDCCH1 delivers consistent performance in continuous 24/7 operations. Its solid-state construction eliminates moving parts that could wear out. The board undergoes rigorous factory testing for temperature and voltage tolerances. Routine maintenance involves only periodic inspection of LED status indicators. Replacing a faulty board takes minutes and does not require special tools. This simplicity reduces mean time to repair significantly.
