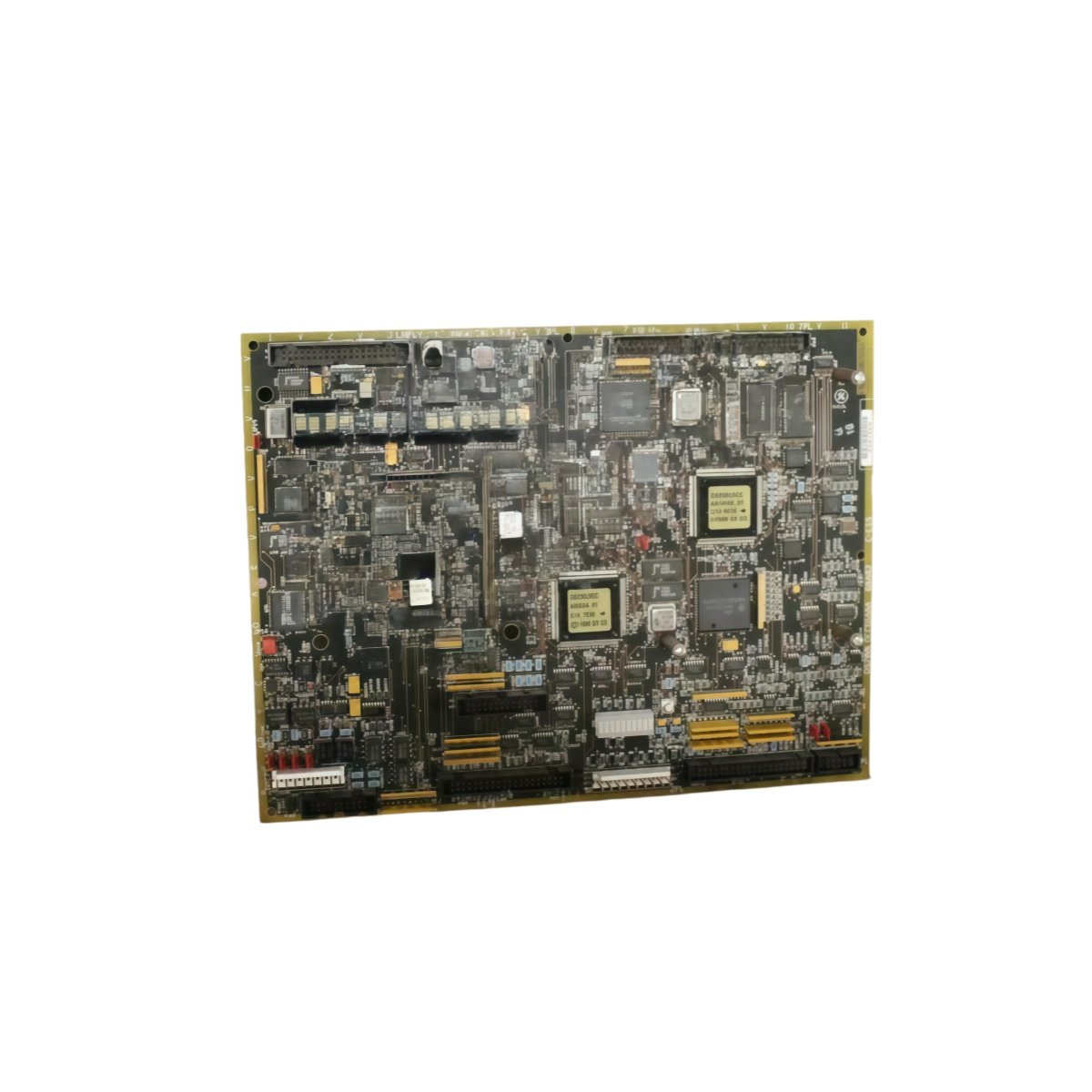

The DS200LDCCG1A DS200LDCCG1AAA manages local area network communications for GE drive systems. This board handles data exchange between the main controller and multiple drive sections. You can rely on it for real-time drive coordination and monitoring tasks.
Key Technical Parameters
The table below lists all essential technical specifications for this drive control LAN communications board.
| Specification | Details |
|---|---|
| Part Numbers | DS200LDCCG1A DS200LDCCG1AAA |
| Product Type | Drive Control LAN Communications Board |
| Compatibility | GE Mark V and EX2100 drive systems |
| Communication Protocol | Proprietary GE LAN |
| Data Transfer Rate | 10 Mbps |
| Network Topology | Daisy-chain or star |
| Maximum Cable Length | 200 meters per segment |
| Number of Nodes | Up to 64 devices |
| Memory | 512 KB flash, 128 KB RAM |
| Number of Components | 7 ICs, 15 capacitors, 10 resistors |
| Dimensions (W x H x D) | 280 mm x 80 mm x 25 mm |
| Weight | Approx. 0.50 kg |
| Connector Type | 2 x RJ-45, 2 x DB-9 |
| PCB Material | FR4 with conformal coating |
| Operating Temperature | -20°C to 65°C |
Physical Characteristics and Installation
This LAN communications board weighs approximately 0.50 kg for secure rack mounting. Its dimensions measure 280 mm x 80 mm x 25 mm for Mark V racks. First, align the DS200LDCCG1A DS200LDCCG1AAA with the backplane connectors. Then, press firmly until the board seats completely. Finally, secure the board using the top and bottom retaining screws. A conformal coating protects the PCB from moisture and dust.
Communication Protocol and Network Capabilities
The DS200LDCCG1A DS200LDCCG1AAA uses a proprietary GE LAN protocol for deterministic data exchange. This board operates at a fixed rate of 10 Mbps for reliable communication. You can connect up to 64 devices on a single network segment. Daisy-chain topology suits linear drive configurations across long distances. Star topology provides redundancy for critical multi-drive applications. The maximum cable length reaches 200 meters between active nodes.
Memory and Component Layout
This communications board integrates 512 KB of flash memory for firmware storage. 128 KB of RAM handles real-time message buffering and routing. The board contains 7 integrated circuits for enhanced protocol management. Fifteen capacitors provide power filtering and signal conditioning. Ten resistors establish proper termination levels. The DS200LDCCG1A DS200LDCCG1AAA units share identical electrical specifications. The “AAA” suffix indicates a revised PCB layout or newer component revision.
Details
| Weight | 0.45 kg |
|---|---|
| Dimensions | 170 × 145 × 65 mm |
