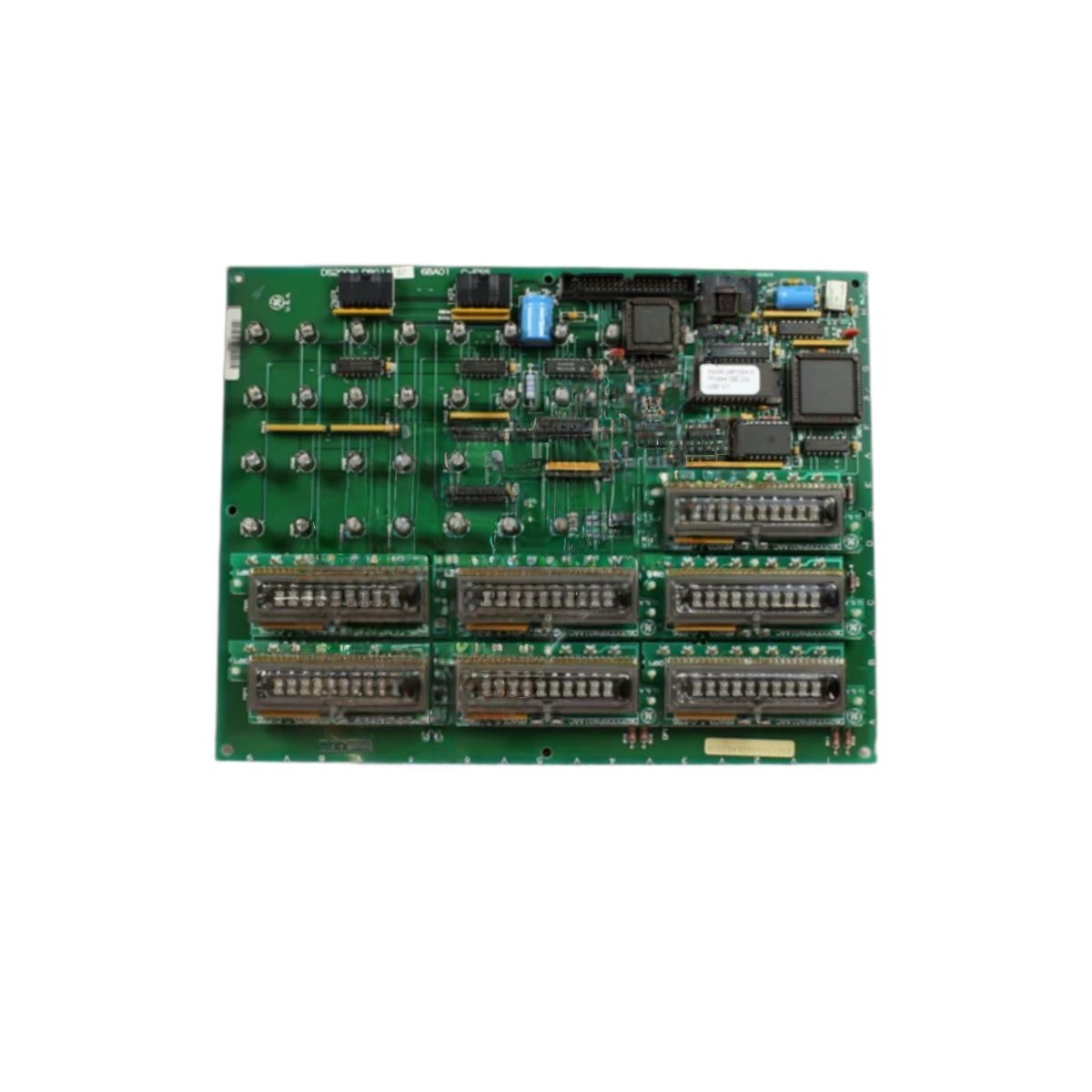

The GE DS200KLDBG1A DS200KLDBG1ABA provide operator display functions for EX2000 excitation systems. These display boards show critical parameters like voltage, current, and system status. You can use either board for local monitoring of generator excitation controls. The units interface directly with the main EX2000 controller through a serial link.

Display and Electrical Specifications

The GE DS200KLDBG1A DS200KLDBG1ABA show real-time excitation system data to operators. These EX2000 display boards present four lines of twenty characters each. You can view generator voltage, field current, and alarm messages. The units communicate with the main controller via an RS-485 serial link.

Physical Dimensions and Weight

Each EX2000 display board weighs 0.22 kg for panel mounting. The unit measures 165 mm long by 95 mm wide. Its depth reaches 32 mm including the display assembly. You can mount either board using four M3 screws through the bezel corners.

Interface and Connection Points

A 5-pin removable terminal block handles power and RS-485 communication wiring. The GE DS200KLDBG1A DS200KLDBG1ABA include four tactile push buttons for menu navigation. You will find two LED indicators for power and communication status. A 16-pin header connects the display module to the main PCB. Additionally, a contrast adjustment potentiometer sits on the rear of the board.

Energy Storage and Internal Circuitry

These display boards store minimal energy for operation and settings. Two electrolytic capacitors provide 47 µF of total bulk storage. A small EEPROM retains display configuration and contrast settings. The boards do not contain any battery for real-time clock functions. An onboard voltage regulator converts 24 VDC to 5 VDC for logic circuits.

Component Layout and Construction

A microcontroller manages all display update and keypad scanning tasks. The LCD module attaches through a conductive elastomeric connector. You will find 32 resistors, 24 capacitors, and 6 integrated circuits on the board. The GE DS200KLDBG1A DS200KLDBG1ABA include reverse polarity protection on the power input. A clear plastic window protects the LCD from dust and accidental contact.

Variant Equivalence and Use

The GE DS200KLDBG1ABA represents a functional equivalent or later revision. Both versions share identical dimensions, connectors, and mounting hole locations. You can substitute one for the other without hardware modifications. Transitioning to these boards restores operator display functionality to EX2000 systems. Use GE DS200KLDBG1A DS200KLDBG1ABA for generator excitation monitoring in power plants. For best results, mount the display at eye level for easy reading.
