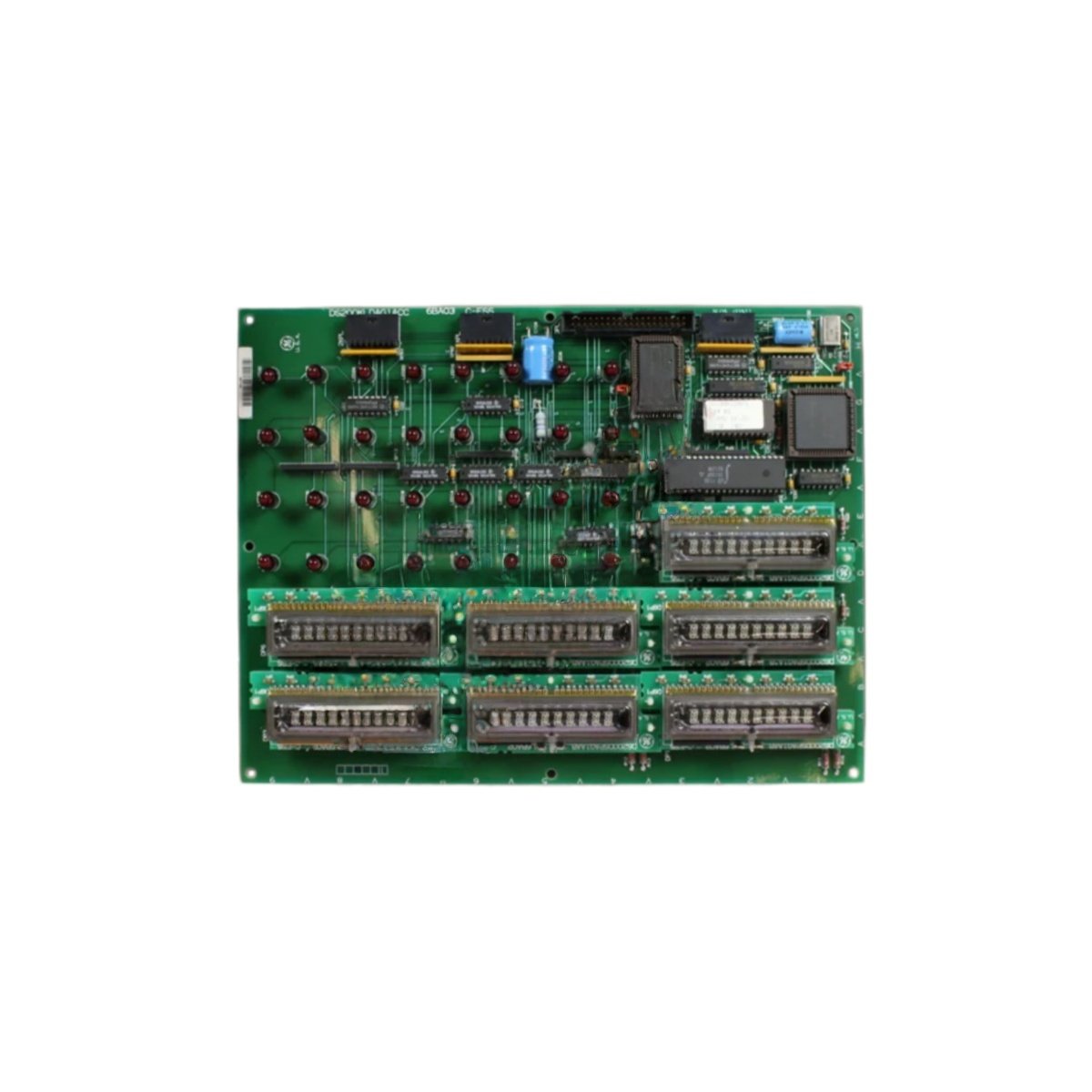

This display card shows real-time status data for turbine operators. The DS200KLDAG1A illuminates specific LED patterns based on system conditions. Its counterpart, the DS200KLDAG1ACC, uses identical driver circuits and light arrays. Both units belong to the Mark V series platform. Each card measures 7.5 inches in length. The width reaches 4.2 inches. Weight sits at approximately 0.4 kilograms.
Technical Specifications for DS200KLDAG1A DS200KLDAG1ACC
The DS200KLDAG1A contains twenty four individual LED segments. The DS200KLDAG1ACC shares the same multiplexing driver architecture. Each card integrates three driver chips for current regulation. Energy storage relies on a 220µF capacitor bank. This bank smooths power delivery to the LED array. The module operates with a nominal 5V DC logic supply. Each LED draws only 10 milliamperes at full brightness. One ribbon cable connector links the card to the main backplane. Two push buttons allow basic on board testing.
Key Features Table
| Parameter | Specification |
|---|---|
| Full Models | DS200KLDAG1A DS200KLDAG1ACC |
| Category | LED Display Card |
| Length | 7.5 inches (191 mm) |
| Width | 4.2 inches (107 mm) |
| Weight | 0.4 kg (0.9 lbs) |
| Logic Supply | 5V DC nominal |
| LED Segments | 24 individual units |
| Driver Chips | 3 for current regulation |
| LED Current | 10 mA each at full brightness |
| Connector Type | 1 ribbon cable to backplane |
| Test Buttons | 2 push buttons onboard |
| Energy Storage | 220µF capacitor bank |
The circuit board uses high-grade FR4 material for durability. Moreover, it withstands ambient temperatures from -20°C to 55°C. You can mount this card vertically in the front panel slot. Furthermore, the multiplexing design reduces overall power consumption. Replacement requires no special calibration tools for installation. Always verify ribbon cable orientation before swapping either card. This component provides clear visual feedback for system status. Consequently, operators can identify faults quickly and accurately.
Details
| Weight | 0.45 kg |
|---|---|
| Dimensions | 170 × 145 × 65 mm |
