Why This Snubber Board Protects Your Inverter Modules

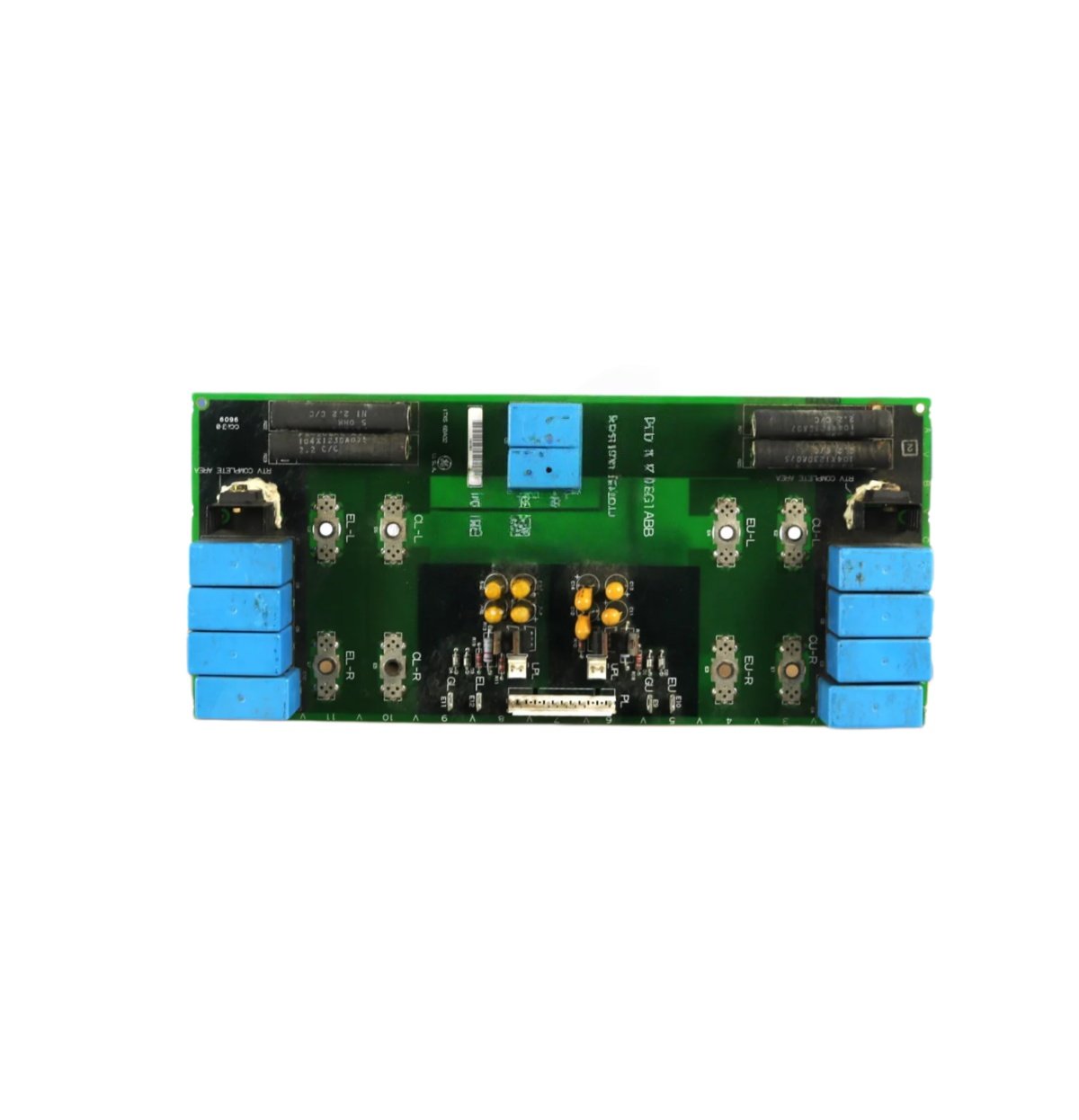

This inverter snubber board suppresses harmful voltage spikes across IGBT devices. You get a durable GE DS200ITXSG1A DS200ITXSG1ABB for industrial drive systems. It mounts directly across the DC bus for transient absorption. Therefore, your inverter avoids premature failure from overvoltage conditions.
Technical Specifications and Physical Details
The GE DS200ITXSG1A DS200ITXSG1ABB contains multiple resistor-capacitor-diode networks. Each network clamps voltage spikes during IGBT turn-off events. This board connects to the main power bus via heavy-gauge wires. Its dimensions measure approximately 300 mm in width and 210 mm in height. The unit weighs around 0.62 kg for secure installation. This snubber board stores only short-term transient energy. Instead, it dissipates spikes as heat during each switching cycle. Consequently, you need no regular maintenance for this passive component.
Below is the detailed breakdown of the hardware specifications.
| Parameter | Specification |
|---|---|
| Product Model | DS200ITXSG1A DS200ITXSG1ABB |
| Product Type | Inverter Snubber Board |
| Brand | GE (General Electric) |
| Circuit Type | Resistor-capacitor-diode (RCD) |
| Number of Networks | Matches inverter phase count |
| Function | Voltage spike suppression |
| Connection | Heavy-gauge wires to DC bus |
| Dimensions (W x H) | Approx. 300 x 210 mm |
| Approx. Weight | 0.62 kg |
| Energy Storage | Short-term transient only |
| Component Count | Single populated PCB |
Installation and Integration Notes
This board mounts as close as possible to the IGBT modules. You must keep all snubber leads extremely short for effectiveness. The GE DS200ITXSG1A DS200ITXSG1ABB requires clean, tight connections at every terminal. Therefore, torque all fasteners to the specified value. Always inspect the snubber resistors for signs of overheating during routine maintenance. Darkened or cracked components indicate excessive switching stress.
