Why This Snubber Card Protects Your IGBT Modules

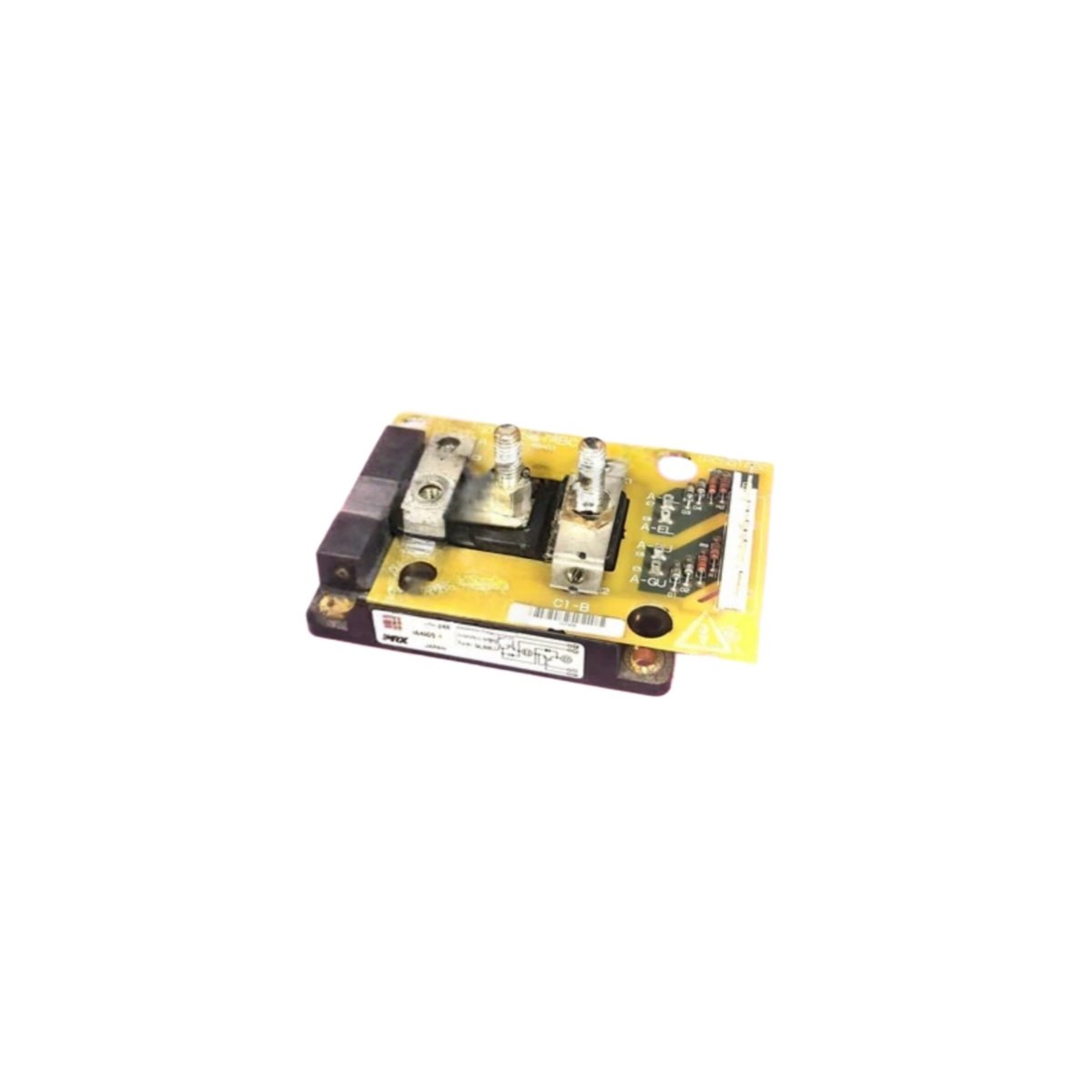

This snubber card suppresses voltage spikes from inductive switching transients. You get a durable GE DS200IPCSG1A DS200IPCSG1ABC for industrial drive systems. It mounts directly across each IGBT module for protection. Therefore, your power semiconductors avoid destructive overvoltage conditions during turn-off.
Technical Specifications and Physical Details
The GE DS200IPCSG1A DS200IPCSG1ABC includes resistor-capacitor networks for six IGBT positions. Each snubber circuit absorbs high-frequency energy from the DC bus. This card connects to the main power board via screw terminals. Its dimensions measure approximately 280 mm in width and 180 mm in height. The unit weighs around 0.35 kg for straightforward installation. This snubber card stores no electrical energy long-term. Instead, it dissipates transient energy as heat during each switching cycle. Consequently, you need no batteries or maintenance for this component.
Below is the detailed breakdown of the hardware specifications.
| Parameter | Specification |
|---|---|
| Product Model | DS200IPCSG1A DS200IPCSG1ABC |
| Product Type | IGBT Snubber Card |
| Brand | GE (General Electric) |
| Number of Circuits | 6 snubber networks |
| Component Type | Resistor-capacitor (RC) |
| Function | Voltage spike suppression |
| Termination | Screw terminals |
| Dimensions (W x H) | Approx. 280 x 180 mm |
| Approx. Weight | 0.35 kg |
| Energy Storage | Short-term transient only |
| Component Count | Single populated PCB |
Installation and Integration Notes
This card mounts near the IGBT modules for short connection paths. You must verify polarity when connecting to the DC bus. The GE DS200IPCSG1A DS200IPCSG1ABC requires clean, tight terminal connections. Therefore, torque each screw to the specified value in the manual. Always inspect the snubber resistors for discoloration during maintenance. Darkened components indicate excessive switching frequency or overload conditions.
