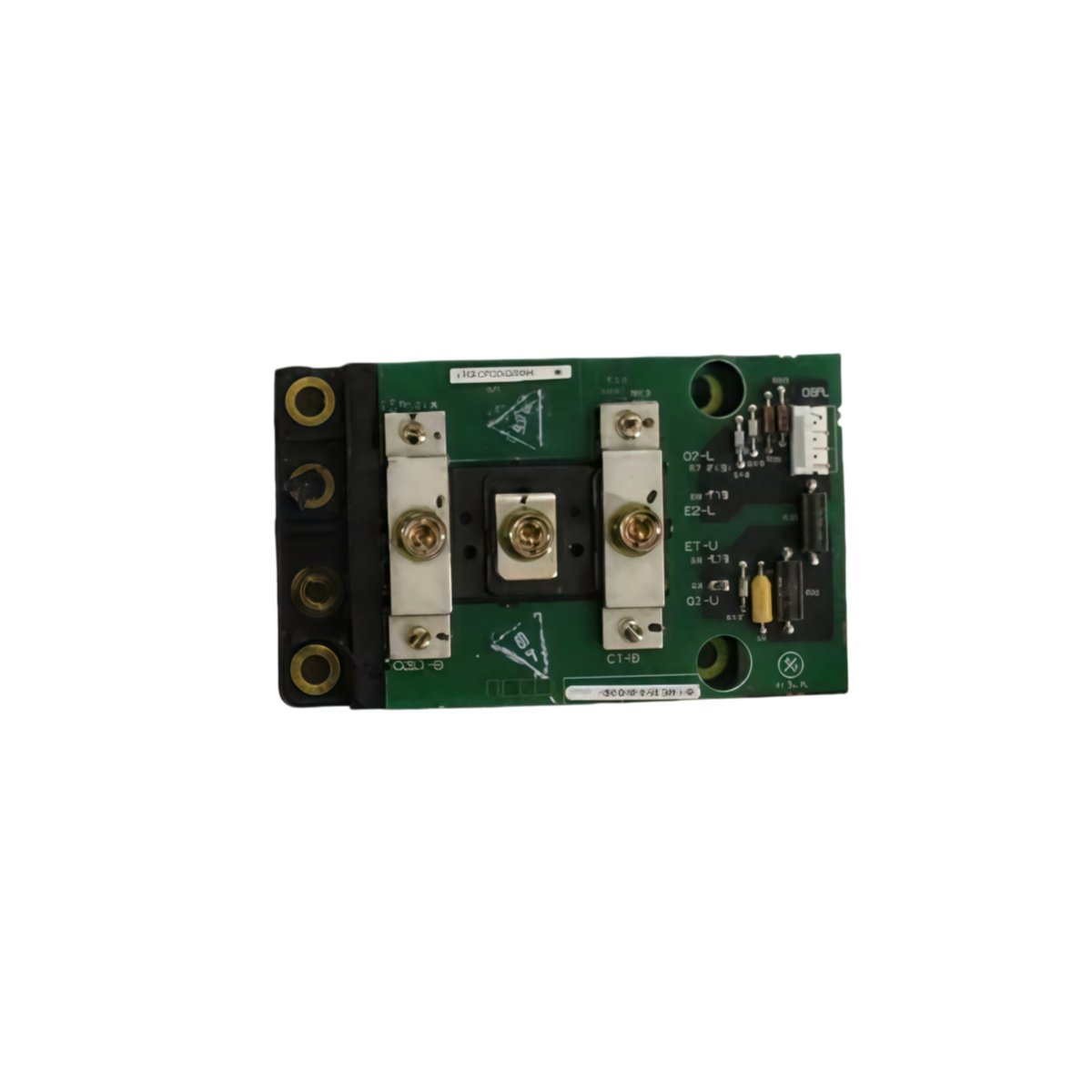

The DS200IPCDG2A DS200IPCDG2ABA provides snubber protection for IGBTs in GE Mark V drives. This board suppresses voltage spikes during transistor switching events. You can rely on it for reliable power semiconductor protection.
Key Technical Parameters
The table below lists all essential technical specifications for this IGBT snubber board.
| Specification | Details |
|---|---|
| Part Numbers | DS200IPCDG2A DS200IPCDG2ABA |
| Product Type | IGBT AP DB Snubber Board |
| Compatibility | GE Mark V drive systems |
| Number of Snubber Circuits | 6 independent channels |
| Snubber Capacitance | 0.47 µF per channel (rated) |
| Snubber Resistance | 5.1 Ω per channel |
| Peak Voltage Rating | 1200V DC |
| Peak Current Rating | 50 A per channel |
| Number of Components | 12 capacitors, 12 resistors, 6 diodes |
| Dimensions (W x H x D) | 280 mm x 80 mm x 25 mm |
| Weight | Approx. 0.55 kg |
| Connector Type | 2 x 50-pin backplane connectors |
| PCB Material | FR4 with conformal coating |
| Operating Temperature | -20°C to 65°C |
Physical Characteristics and Installation
This snubber board weighs approximately 0.55 kg for secure rack mounting. Its dimensions measure 280 mm x 80 mm x 25 mm for Mark V drive racks. First, align the DS200IPCDG2A DS200IPCDG2ABA with the backplane connectors. Then, press firmly until the board seats completely. Finally, secure the board using the top and bottom retaining screws. A conformal coating protects the PCB from moisture and dust.
Snubber Circuit Specifications
The DS200IPCDG2A DS200IPCDG2ABA provides 6 independent snubber channels for IGBT protection. Each channel uses a 0.47 µF capacitor for voltage clamping. A 5.1 Ω resistor limits the discharge current during switching. The peak voltage rating reaches 1200V DC for high-power applications. Each channel handles up to 50 A peak current safely. Consequently, this board prevents destructive voltage spikes across the IGBTs.
Component Layout and Board Variants
This snubber board contains 12 capacitors for energy absorption. Twelve resistors provide current limiting and damping functions. Six diodes offer reverse voltage protection for sensitive circuits. The DS200IPCDG2A DS200IPCDG2ABA units share identical electrical specifications. The “ABA” suffix indicates a revised PCB layout or newer component revision. The snubber circuits connect directly to the IGBT gate driver boards.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
