Technical Specifications
| Parameter | Value |
|---|---|
| Brand | GE |
| Model | DS200IMCPG1C DS200IMCPG1CFB |
| Category | Power Supply Board |
| Weight | 2.05 lbs (0.93 kg) |
| Dimensions | 9.4 x 6.1 x 1.9 inches |
| PCB Layers | 6-layer board |
| Component Count | 246 discrete components |
| Input Voltage | 120-240V AC or 125V DC |
| Input Frequency | 47-63 Hz (AC mode) |
| Output Voltages | +5V, +15V, -15V, +24V |
| +5V Output Current | 12A maximum |
| +15V Output Current | 3A maximum |
| -15V Output Current | 1.5A maximum |
| +24V Output Current | 4A maximum |
| Total Output Power | 140W |
| Efficiency | 84% typical |
| Hold-up Time | 25 ms at full load |
| Protection | Overcurrent, overvoltage, short-circuit |
| Energy Storage | 5 x 1500µF, 6 x 470µF |
| Cooling Method | Natural convection |
| Operating Temperature | 0°C to 55°C |
Physical Construction and Component Layout

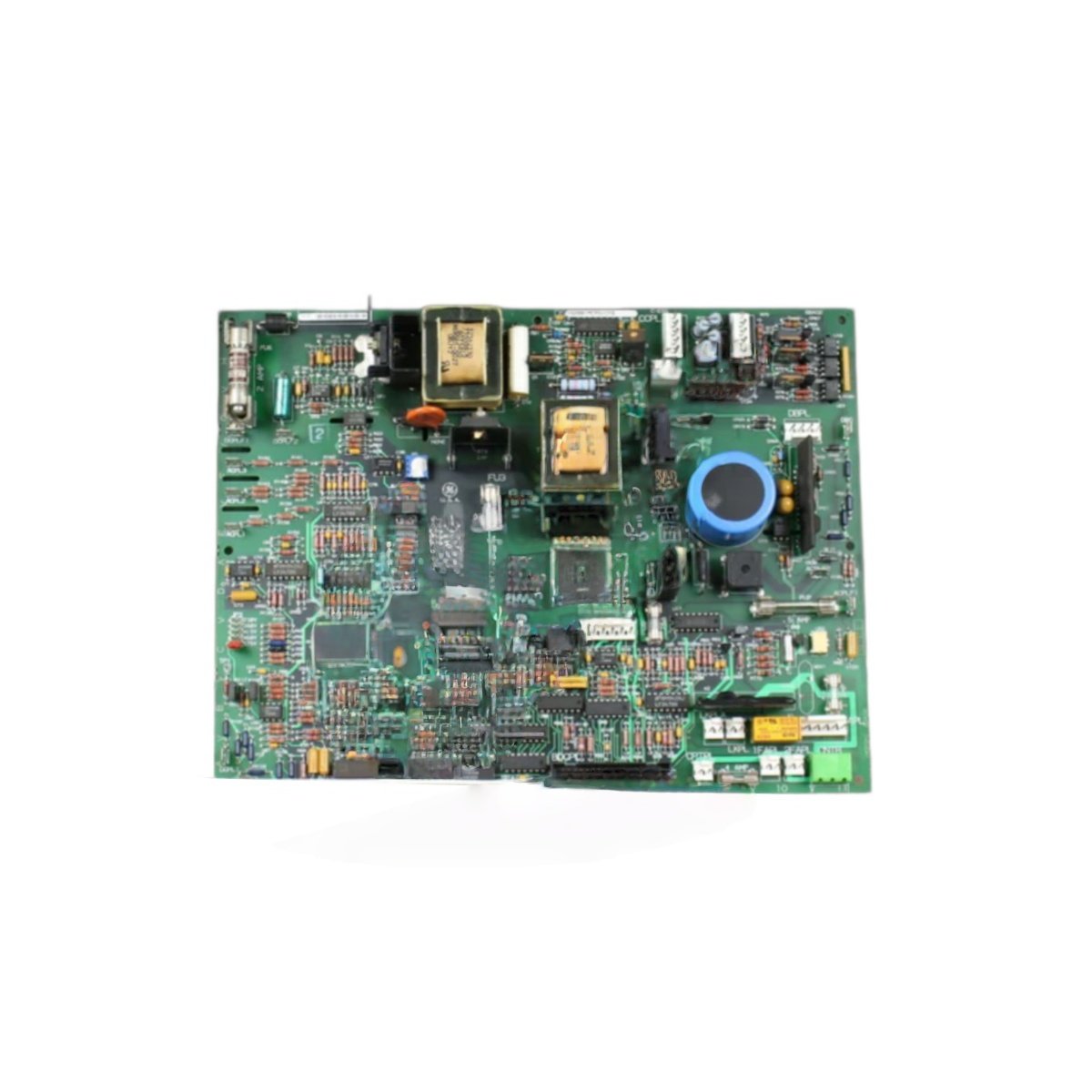

This DS200IMCPG1C DS200IMCPG1CFB power supply board measures 9.4 inches in length. Its width reaches 6.1 inches with a thickness of 1.9 inches. The total weight comes to approximately 2.05 pounds. Manufacturers placed 246 discrete components on this six-layer PCB. These components include switching regulators, transformers, filter chokes, and protection circuits. Both DS200IMCPG1C and DS200IMCPG1CFB share the same power supply architecture.
Input Flexibility and Output Specifications
DS200IMCPG1C DS200IMCPG1CFB accepts either AC or DC input power sources. The AC input ranges from 120V to 240V at 47-63 Hz. The DC input accepts 125V nominal for backup battery applications. The board generates four regulated DC outputs for system power needs. The +5V rail delivers up to 12 amps for logic and processor circuits. A +15V rail supplies 3 amps for analog and control sections. The -15V rail provides 1.5 amps for operational amplifiers. A +24V rail delivers 4 amps for I/O and relay power. Total combined output power reaches 140 watts continuously.
Protection Features and Efficiency
DS200IMCPG1C DS200IMCPG1CFB includes comprehensive protection for reliable system operation. Overcurrent protection shuts down any output during overload conditions. Overvoltage protection prevents damage to downstream sensitive electronics. Short-circuit protection activates instantly during wiring faults. Efficiency reaches 84% typical at nominal load for reduced heat generation. Hold-up time measures 25 milliseconds at full rated load. Therefore, this board rides through brief power interruptions without system resets.
Energy Storage and Application Use
DS200IMCPG1C DS200IMCPG1CFB integrates five 1500µF capacitors for bulk energy storage. Six additional 470µF capacitors filter each output rail separately. Natural convection cooling eliminates the need for noisy fans. You will find this board in GE Mark V and Mark VI turbine control systems. It powers processor boards, I/O modules, and communication cards. The board operates reliably from 0°C to 55°C ambient temperature. For example, it supplies clean power for turbine control racks. Therefore, this power supply board delivers stable and robust energy for demanding GE automation systems.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 273.6 × 214.1 × 59.2 mm |
