Product Overview

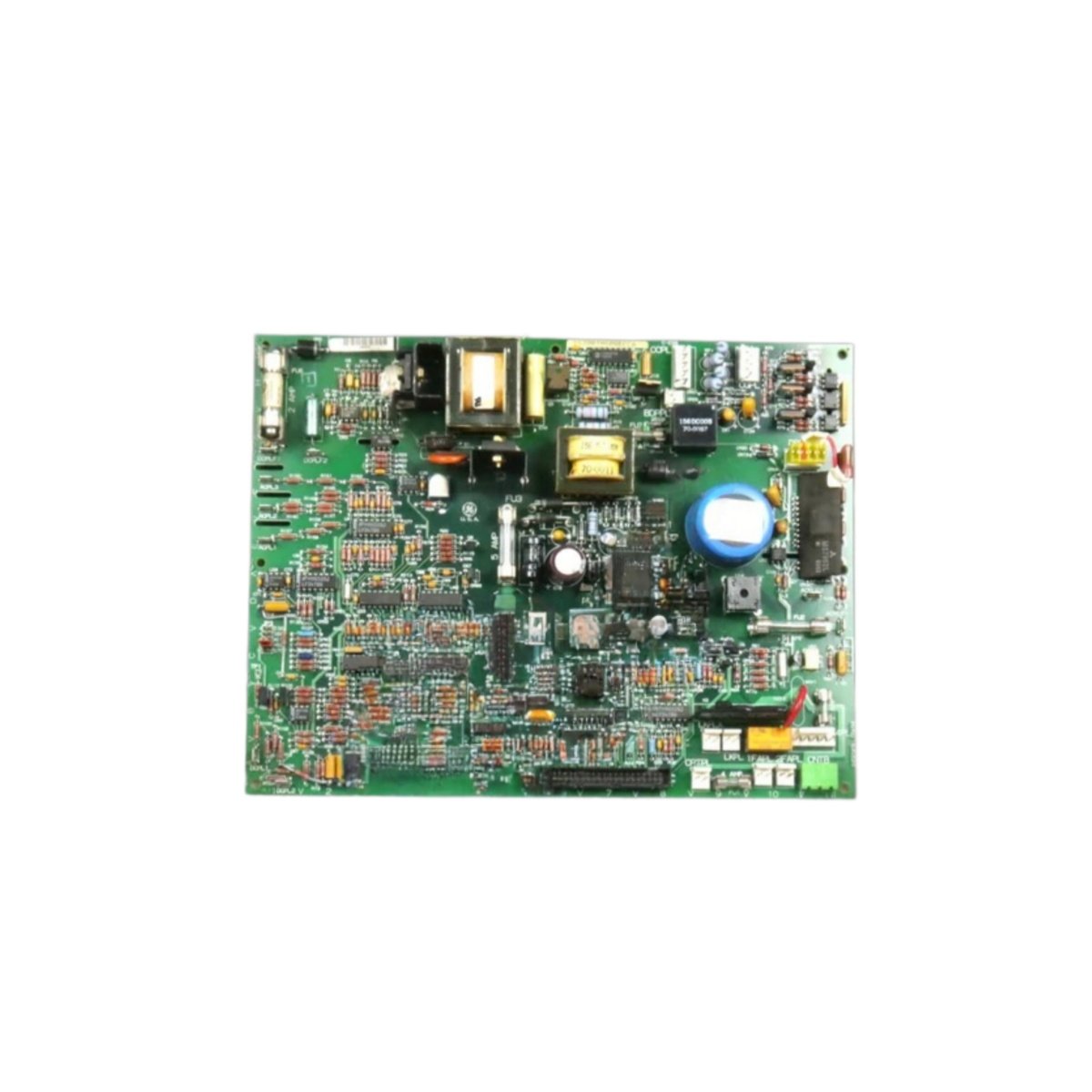

The DS200IMCPG1C DS200IMCPG1CCA delivers reliable DC power to Mark V drive systems. You will find this board in turbine control cabinets and excitation racks. It accepts wide-range AC input and produces stable 24V DC output. Additionally, this board features dual overcurrent protection circuits for safety. Therefore, it prevents damage to downstream instrumentation modules.
Technical Specifications
The table below lists all key parameters for this power supply board.
| Parameter | Value / Description |
|---|---|
| Full Model | DS200IMCPG1C DS200IMCPG1CCA |
| Category | Power Supply Board |
| Dimensions (W x H) | 17.8 cm x 11.4 cm (7.0 in x 4.5 in) |
| Weight | 0.95 kg (2.09 lb) |
| Primary Interface | Three 2-pin AC input terminals |
| Secondary Interface | One 8-pin DC output header |
| Onboard Components | 8 capacitors, 18 resistors, 6 diodes, 2 transformers, 1 fuse |
| Energy Storage | 220 µF total (small filter capacitors only) |
| Input Voltage | 85V AC to 264V AC (universal) |
| Output Voltage | 24V DC ±3% |
| Max Output Current | 3.0 A continuous |
| Efficiency | 82% typical at full load |
| Ripple & Noise | < 80 mV peak-to-peak |
| Mounting | Four 3.5 mm corner screw holes |
The DS200IMCPG1C DS200IMCPG1CCA stores minimal energy (only 220 µF total). Therefore, you only need a 5-second discharge wait before handling. Use the three AC terminals for line, neutral, and ground connections. Meanwhile, the 8-pin header delivers 24V to main control logic.
Installation and Compatibility
You can mount this board directly into any Mark V panel slot. Use four M3.5 screws to secure the DS200IMCPG1C DS200IMCPG1CCA. Then connect the AC supply wires to terminals L, N, and E. Always verify the input voltage range before you power up.
The DS200IMCPG1CCA variant includes a replaceable fuse holder. This version also has wider PCB traces for higher current capacity. Both models replace older GE IMCPG1 series power boards without hardware modifications.
Environmental and Safety Data
This power supply board operates from -20°C to +55°C. It does not require forced cooling below 40°C ambient. The board also meets UL 508 and IEC 60950 safety standards. The component side has a thick conformal coating. Consequently, you can use this board in mildly corrosive environments. Avoid blocking the ventilation holes near the transformer.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
