Core Technical Specifications

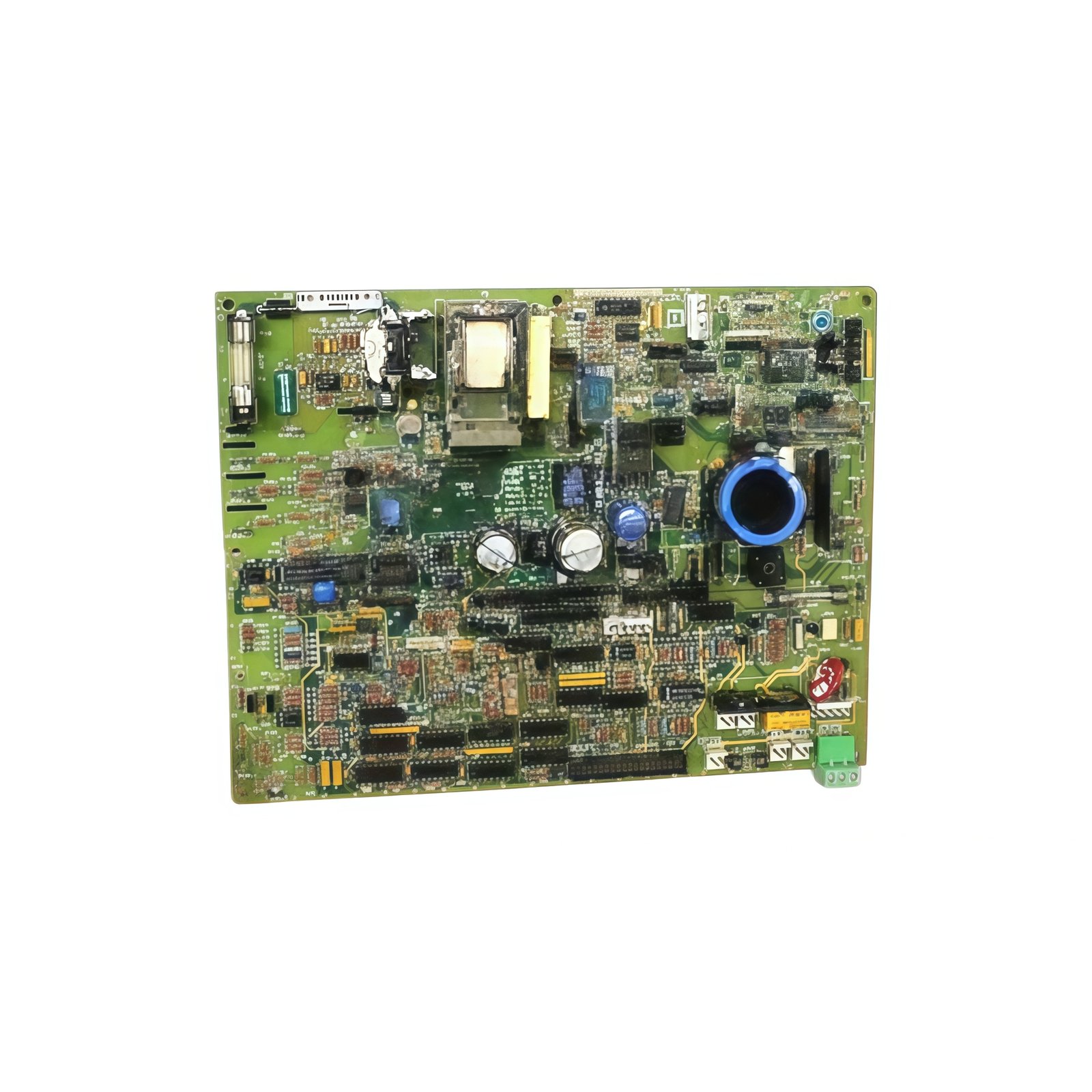

DS200IMCPG1C DS200IMCPG1CBA connects the main power supply to GE Mark V control racks. This interface board measures 20.3 cm in width and 15.2 cm in depth. The unit weighs approximately 0.65 kg without any cables attached. You will find one 20-pin male connector on this assembly. It also includes two 8-pin auxiliary headers for additional signals. For power input, the board accepts 125 V DC or 240 V AC. It draws roughly 150 mA during normal operation.

Component Layout and Energy Storage

The PCB uses a six-layer design for superior noise rejection. DS200IMCPG1C DS200IMCPG1CBA contains eight surface-mount diodes for rectification. Twelve resistors manage current flow across critical paths. Regarding energy storage, the board features five electrolytic capacitors. Each capacitor stores 100 µF at 100 V. This configuration effectively smooths DC bus voltage fluctuations. Consequently, the board tolerates input ripple up to 3%. One onboard LED indicates power status at all times. The operating temperature range spans -10°C to 60°C. Meanwhile, humidity tolerance reaches 90% without condensation.

Interface and Protection Features

Four mounting holes secure the board to standard DIN rails. DS200IMCPG1C DS200IMCPG1CBA provides 2500 V isolation between primary and secondary sides. A built-in fuse protects against overcurrent conditions. This fuse handles up to 2 A before blowing. Transitioning to physical durability, a conformal coating covers all components. This coating resists dust and moisture effectively. You can replace the board in under 10 minutes during routine maintenance.

Technical Parameter Table

Details
