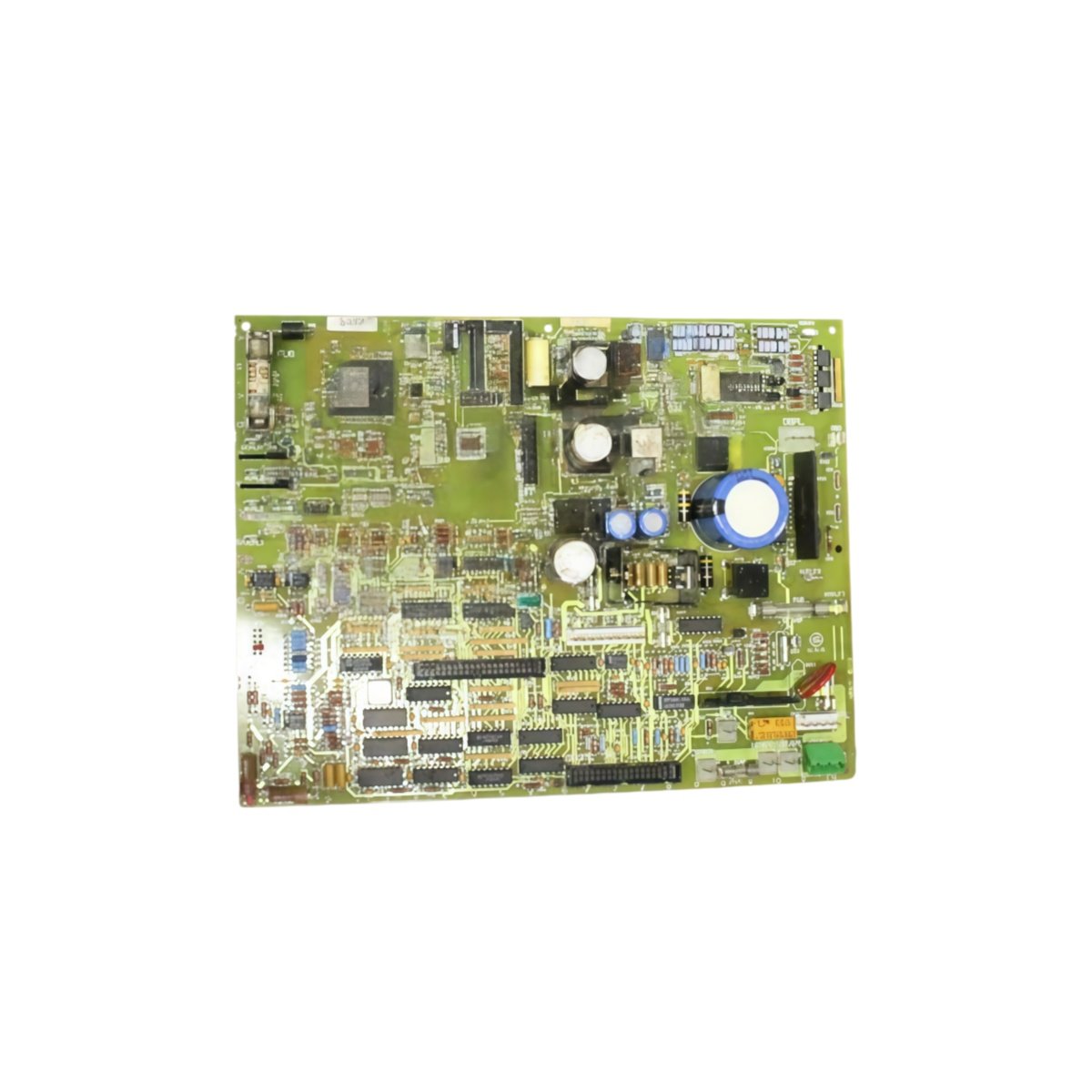

The DS200IMCPG1A DS200IMCPG1ADA connects the main power supply to GE Mark V control circuits. This interface board conditions and distributes DC power to downstream modules. You can rely on it for clean and reliable system power delivery.
Key Technical Parameters
The table below lists all essential technical specifications for this power supply interface board.
| Specification | Details |
|---|---|
| Part Numbers | DS200IMCPG1A DS200IMCPG1ADA |
| Product Type | Power Supply Interface Board |
| Compatibility | GE Mark V turbine control series |
| Input Voltage | 125V DC nominal |
| Input Voltage Range | 100V to 150V DC |
| Output Voltages | 5V DC, ±15V DC, 24V DC |
| Output Current (5V) | 5 A maximum |
| Output Current (±15V) | 1 A maximum per rail |
| Output Current (24V) | 2 A maximum |
| Total Output Power | 75 W |
| Ripple & Noise | < 20 mV peak-to-peak |
| Number of Components | 8 ICs, 20 capacitors, 15 resistors |
| Dimensions (W x H x D) | 260 mm x 75 mm x 25 mm |
| Weight | Approx. 0.48 kg |
| Connector Type | 2 x 50-pin backplane connectors |
| PCB Material | FR4 with conformal coating |
| Operating Temperature | -20°C to 65°C |
Physical Characteristics and Installation
This power supply interface board weighs approximately 0.48 kg for secure rack mounting. Its dimensions measure 260 mm x 75 mm x 25 mm for Mark V racks. First, align the DS200IMCPG1A DS200IMCPG1ADA with the backplane connectors. Then, press firmly until the board seats completely. Finally, secure the board using the top and bottom retaining screws. A conformal coating protects the PCB from moisture and dust.
Output Voltage Specifications
The DS200IMCPG1A DS200IMCPG1ADA generates four regulated DC outputs for system operation. A 5V DC rail supplies 5 A for logic circuits and processors. Dual ±15V DC rails provide 1 A each for analog signal conditioning. A 24V DC rail delivers 2 A for field interface circuits. The total combined output power reaches 75 W for fully populated racks.
Power Quality and Component Layout
This interface board achieves < 20 mV peak-to-peak ripple for clean power delivery. The board contains 8 integrated circuits for voltage regulation and monitoring. Twenty capacitors provide filtering and energy storage. Fifteen resistors establish proper feedback and current limiting. The DS200IMCPG1A DS200IMCPG1ADA units share identical electrical specifications. The “ADA” suffix indicates a revised PCB layout or newer component revision.
Details
| Weight | 0.45 kg |
|---|---|
| Dimensions | 254 × 178 × 5 mm |
