Why This Gate Driver Board Controls Your Power Inverter
This gate driver board provides switching signals for IGBT power modules. You get a reliable GE DS200IIBDG1A DS200IIBDG1AEA for industrial drive systems. It interfaces between the control logic and power semiconductors. Therefore, your inverter can regulate motor speed with precise timing.
Technical Specifications and Physical Details

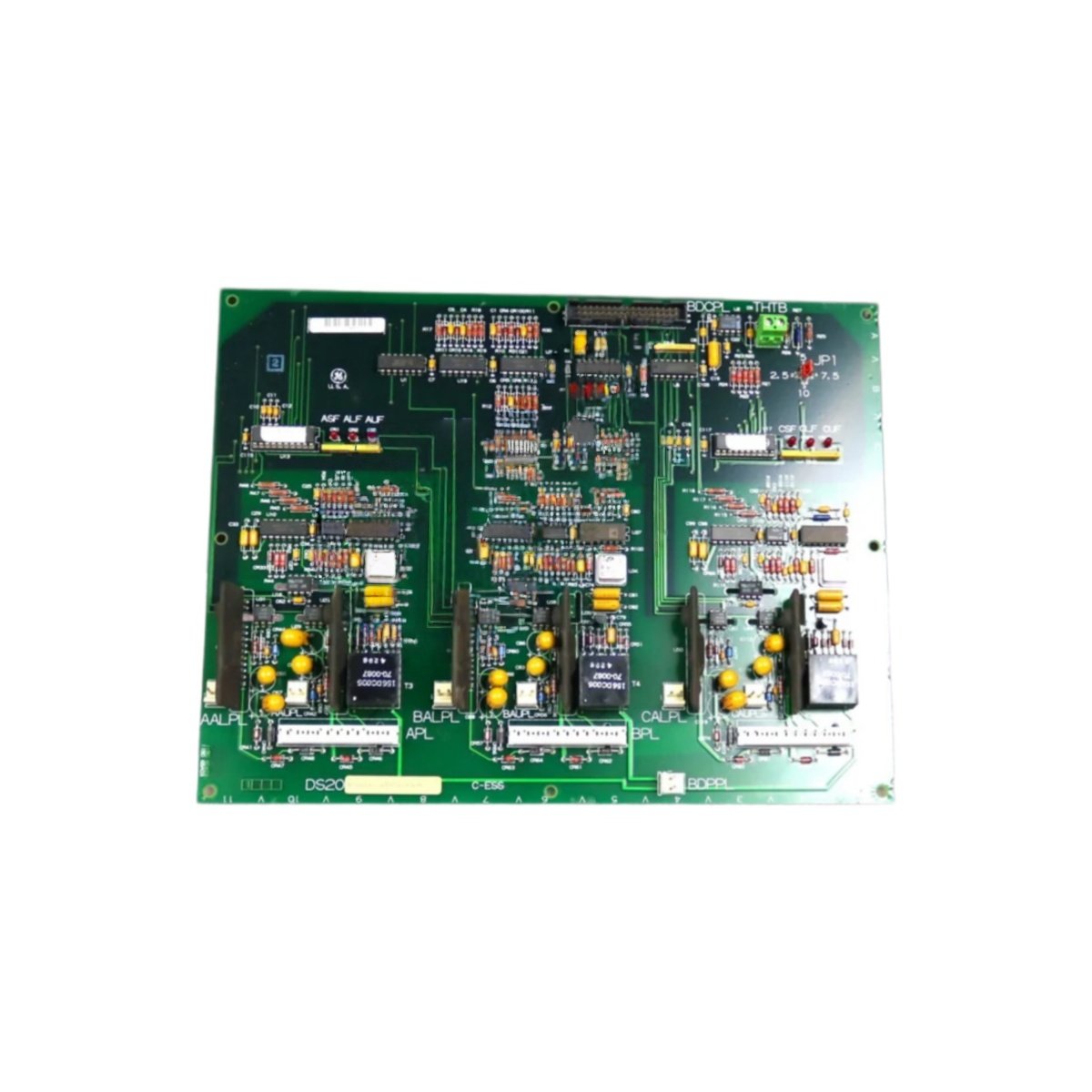

The GE DS200IIBDG1A DS200IIBDG1AEA features six independent gate drive channels. Each channel includes isolated feedback for fault detection. This board connects to the main control board via ribbon cables. Its dimensions measure approximately 300 mm in width and 200 mm in height. The unit weighs around 0.45 kg for straightforward installation. This gate driver stores no configuration data internally. Instead, the main controller sends all switching patterns in real time. Consequently, you lose no settings during a board replacement.
Below is the detailed breakdown of the hardware specifications.
| Parameter | Specification |
|---|---|
| Product Model | DS200IIBDG1A DS200IIBDG1AEA |
| Product Type | Gate Driver Board |
| Brand | GE (General Electric) |
| Number of Channels | 6 independent gate drives |
| Feedback Type | Isolated fault detection |
| Interface | Ribbon cable to control board |
| Dimensions (W x H) | Approx. 300 x 200 mm |
| Approx. Weight | 0.45 kg |
| Energy Storage | None (passive signal driver) |
| Component Count | Single populated PCB |
Installation and Integration Notes
This board mounts into a dedicated slot within the drive cabinet. You must connect all six ribbon cables in the correct order. The GE DS200IIBDG1A DS200IIBDG1AEA requires proper heatsink compound on the power devices. Therefore, apply a thin layer before tightening the mounting screws. Always power down the drive completely before handling this board. High voltage remains on capacitors for several minutes after disconnection.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
