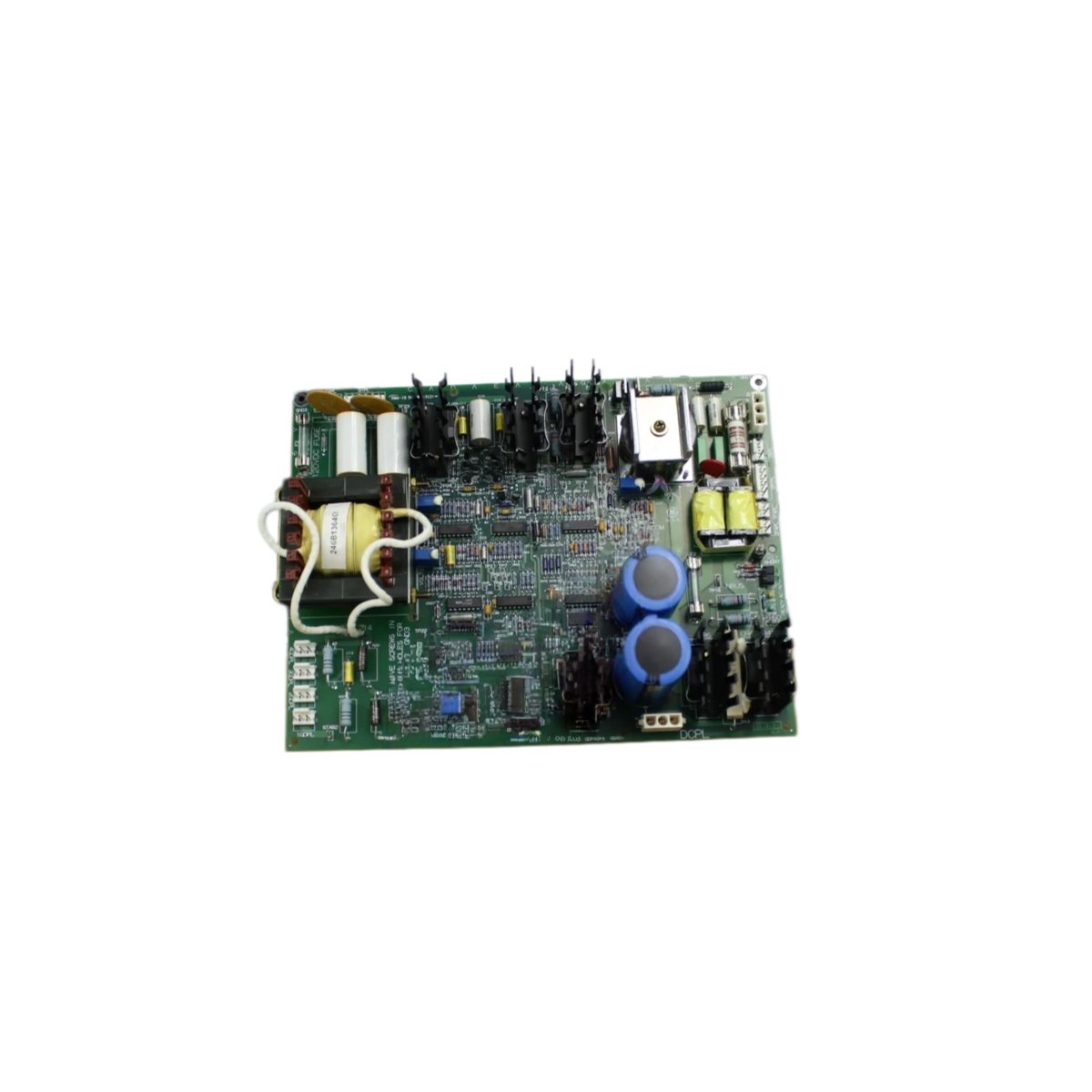

This gate driver power supply provides isolated power for IGBT gate drive circuits. It converts 24V DC into regulated ±15V outputs for reliable switching. The unit mounts inside the drive cabinet near the power inverter section.
Technical specifications
| Parameter | Specification |
|---|---|
| Brand | GE Energy |
| Model 1 | DS200GDPAG1A |
| Model 2 | DS200GDPAG1ALF |
| Product Family | Mark V / Drive Control |
| Category | Gate Driver Power Supply |
| PCB Layer Count | 4 layers |
| Base Material | FR-4 flame retardant |
| Input Voltage | 24V DC nominal (18V to 32V) |
| Input Current | 1.2A typical at full load |
| Output Voltage 1 | +15V DC (isolated) |
| Output Current 1 | 1A continuous |
| Output Voltage 2 | -15V DC (isolated) |
| Output Current 2 | 0.5A continuous |
| Total Output Power | 22.5 Watts maximum |
| Isolation Voltage | 2500V RMS (primary to secondary) |
| Efficiency | Approximately 85% |
| Ripple | ≤ 40 mV peak-to-peak |
| Component Count | Approximately 95 components |
| Integrated Circuits | 10 ICs (DC-DC converters, PWM) |
| Connector Types | 2 x 20-pin headers, 1 x terminal block |
| Status Indicators | 1 x LED (PWR) |
| Test Points | 6 gold-plated test points |
| Energy Storage | 6 x electrolytic capacitors (100 µF each) |
| Dimensions (L x W) | Approx. 21 cm x 14 cm |
| Thickness | Approx. 1.6 mm |
| Weight | Approx. 0.29 kg |
| Operating Temperature | 0°C to 55°C |
| Mounting | 4 x screw holes (M4) |
Detailed Technical Analysis
This gate driver power supply converts 24V DC into isolated ±15V outputs. It provides +15V at 1 amp and -15V at 0.5 amp for IGBT drivers. The board delivers 22.5 watts of total output power for multiple gate drive channels. It achieves approximately 85% efficiency under normal load conditions.
Now let us examine its isolation features. This supply provides 2500V RMS isolation between input and output circuits. Approximately 95 components populate both sides of this 4-layer PCB. Ten integrated circuits include DC-DC converters and a PWM controller. Six electrolytic capacitors filter the power supply for stable operation.
This gate driver supply draws 1.2 amps from the 24V DC input at full load. A single green LED confirms that output power is present. Six gold-plated test points allow voltage verification during commissioning. The output ripple stays below 40 millivolts for clean gate drive power. The GE DS200GDPAG1A DS200GDPAG1ALF ensures reliable IGBT switching.
Installation and Connection Guidelines
You mount this board using four M4 screws with insulating standoffs. Connect the 24V DC input to the designated terminal block. Use 18 AWG or larger wire for the DC supply connection. Connect the ±15V outputs to the gate driver circuits.
Do not exceed the maximum output current on either rail. The board includes overcurrent and short circuit protection. Verify both output voltages before connecting to sensitive gate driver circuits. Always power down the drive before inserting or removing this board.
Practical Applications
Engineers use this power supply for gate driver isolation and power. This component also works in legacy drive upgrade projects. Its ±15V outputs suit standard IGBT driver requirements.
Summary of Features
To conclude, this gate driver supply provides ±15V at 22.5 watts with 2500V isolation. It weighs 0.29 kilograms and achieves 85% efficiency. Choose DS200GDPAG1A DS200GDPAG1ALF for reliable gate driver power in drive systems.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
