Technical Specifications
| Parameter | Value |
|---|---|
| Brand | GE |
| Model | DS200GDPAG1A DS200GDPAG1AFB |
| Category | Gate Driver Board |
| Weight | 1.25 lbs (0.57 kg) |
| Dimensions | 8.3 x 5.9 x 1.4 inches |
| PCB Layers | 6-layer board |
| Component Count | 212 discrete components |
| Gate Drive Channels | 6 isolated channels |
| Output Voltage | +15V / -8V typical |
| Peak Output Current | 4A per channel |
| Switching Frequency | Up to 20 kHz |
| Isolation Voltage | 2500V RMS |
| Input Logic | 5V or 24V compatible |
| Protection | Desaturation detection |
| Status Indicators | 6 LEDs (channel active) |
| Operating Voltage | 24V DC control supply |
| Current Draw | 180 mA at 24V DC |
| Energy Storage | 4 x 470µF, 6 x 100µF |
| Temperature Range | 0°C to 55°C |
Physical Construction and Component Layout

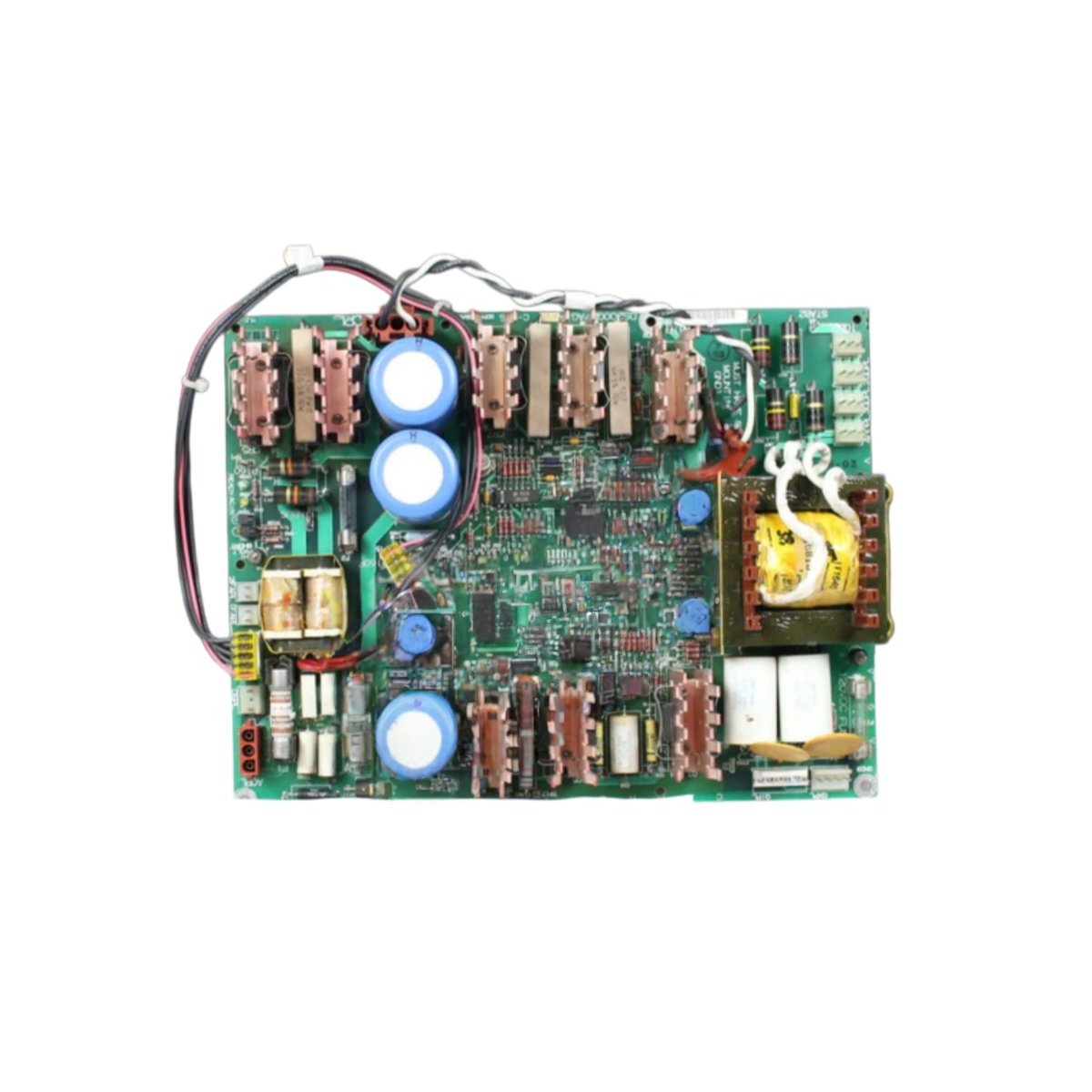

This DS200GDPAG1A DS200GDPAG1AFB gate driver board measures 8.3 inches in length. Its width reaches 5.9 inches with a thickness of 1.4 inches. The total weight comes to approximately 1.25 pounds. Manufacturers placed 212 discrete components on this six-layer PCB. These components include isolated gate drivers, pulse transformers, and desaturation detection circuits. Both DS200GDPAG1A and DS200GDPAG1AFB share the same functional design.
Gate Drive Specifications and Channels
DS200GDPAG1A DS200GDPAG1AFB provides six fully isolated gate drive channels. Each channel delivers +15V for turning IGBTs on effectively. The output also provides -8V for reliable turn-off. Peak output current reaches 4 amps per channel. This current drives large power modules without external boosters. Switching frequency supports up to 20 kHz for modern inverters. Isolation withstands 2500V RMS for safe high-side driving.
Protection Features and Status Indication
DS200GDPAG1A DS200GDPAG1AFB includes desaturation detection on every channel. This protection shuts down the gate drive during output short circuits. Each channel has a dedicated status LED for monitoring. Green LEDs illuminate during normal switching activity. Red LEDs indicate desaturation faults on specific channels. Input logic accepts both 5V and 24V control signals. Therefore, this board interfaces with most PWM controllers easily.
Energy Storage and Application Use
DS200GDPAG1A DS200GDPAG1AFB integrates four 470µF capacitors for bulk storage. Six additional 100µF capacitors filter high-frequency switching noise. The board draws 180 milliamps from the 24V DC control supply. You will find this board in GE drive and inverter systems. It drives IGBT modules in AC and DC motor controls. The board operates reliably from 0°C to 55°C ambient. For example, it serves industrial variable frequency drives. Therefore, this gate driver board provides reliable switching control for power conversion applications.
Details
| Weight | 0.45 kg |
|---|---|
| Dimensions | 170 × 145 × 65 mm |
