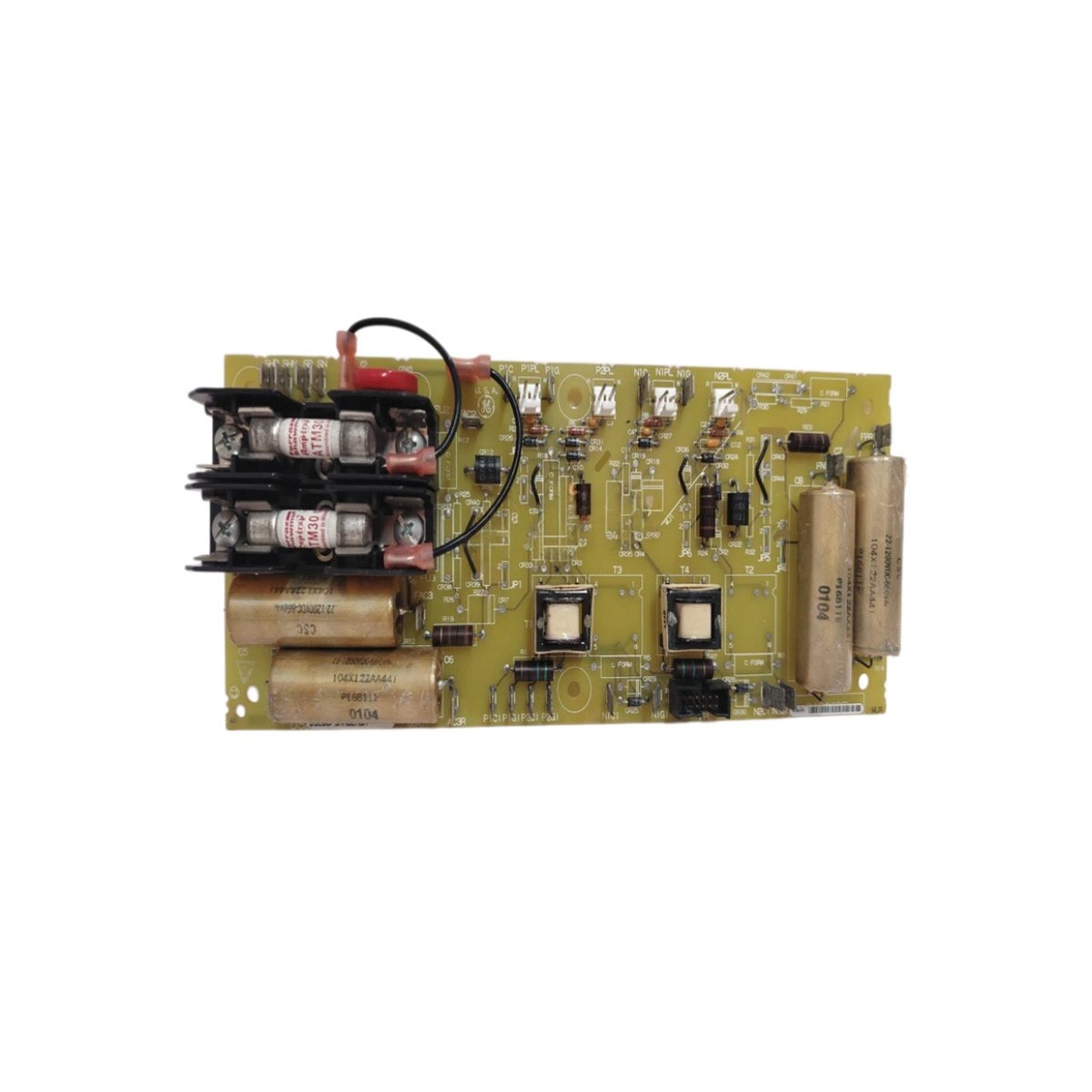

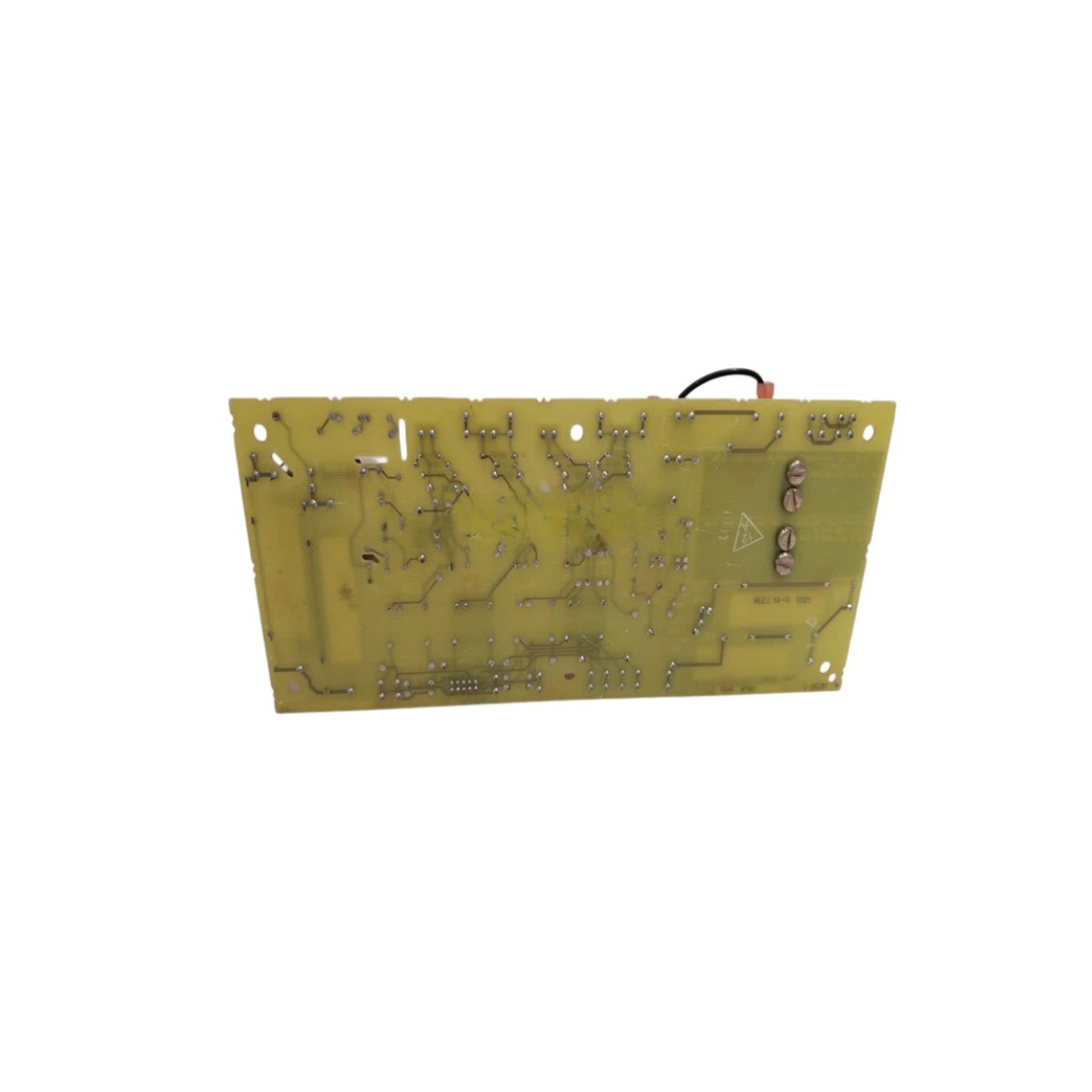

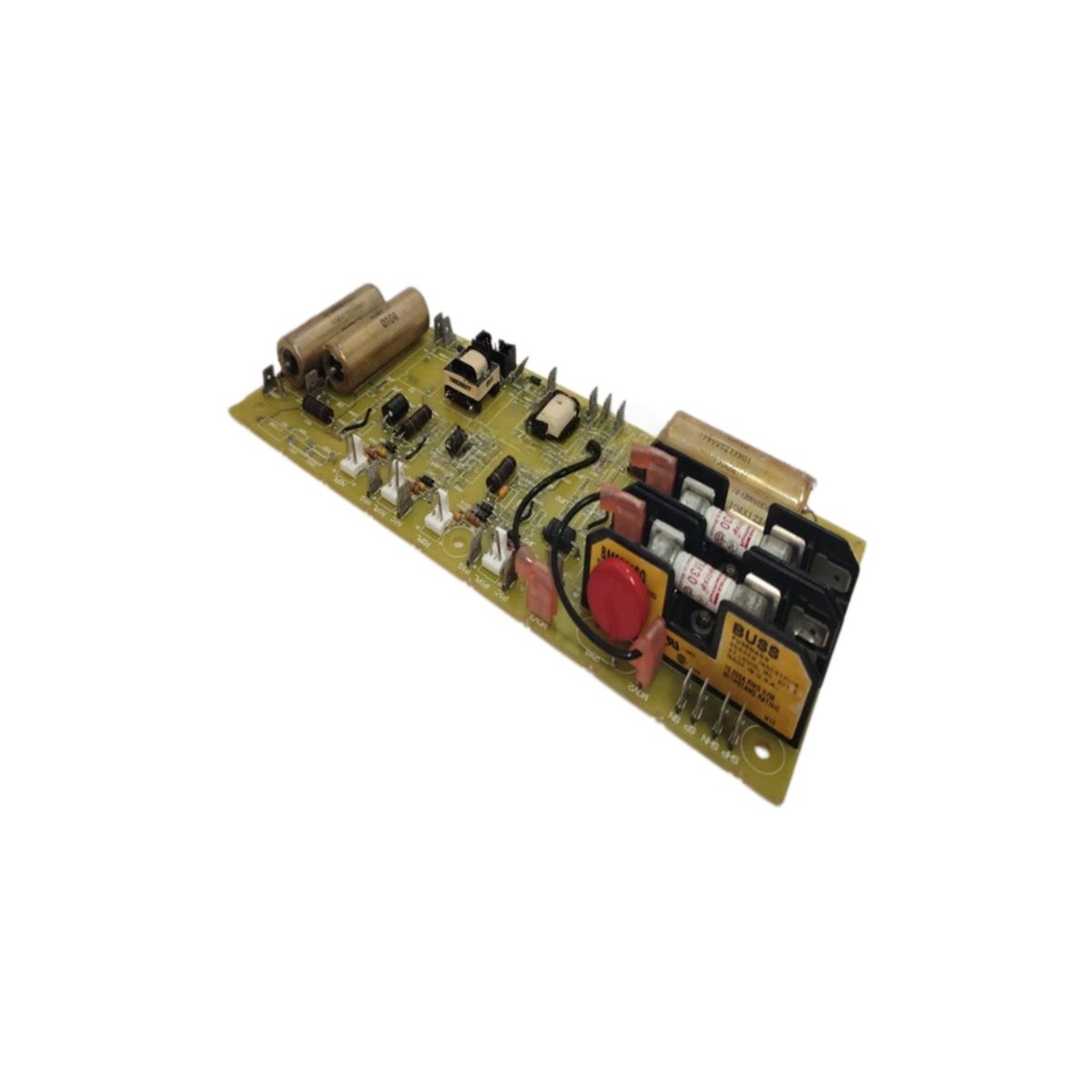

The DS200FSAAG2A DS200FSAAG2ABA amplifies field excitation signals for GE Mark V generators. This board boosts low-level control signals to drive the generator field windings. You can rely on it for stable generator voltage regulation.
Key Technical Parameters
The table below lists all essential technical specifications for this field supply amplifier board.
| Specification | Details |
|---|---|
| Part Numbers | DS200FSAAG2A DS200FSAAG2ABA |
| Product Type | Field Supply Amplifier Board |
| Compatibility | GE Mark V generator control systems |
| Input Signal | 0V to 10V DC (from controller) |
| Output Voltage | 0V to 250V DC |
| Output Current | 15 A continuous, 30 A peak |
| Amplifier Type | Pulse-width modulated (PWM) |
| Switching Frequency | 5 kHz |
| Protection Features | Overcurrent, overtemperature |
| Number of Components | 10 ICs, 28 capacitors, 22 resistors |
| Dimensions (W x H x D) | 280 mm x 80 mm x 25 mm |
| Weight | Approx. 0.68 kg |
| Connector Type | 2 x 50-pin backplane connectors |
| PCB Material | FR4 with conformal coating |
| Operating Temperature | -20°C to 65°C |
Physical Characteristics and Installation
This field supply amplifier board weighs approximately 0.68 kg for secure rack mounting. Its dimensions measure 280 mm x 80 mm x 25 mm for Mark V generator racks. First, align the DS200FSAAG2A DS200FSAAG2ABA with the backplane connectors. Then, press firmly until the board seats completely. Finally, secure the board using the top and bottom retaining screws. A conformal coating protects the PCB from moisture and dust.
Amplifier Specifications
The DS200FSAAG2A DS200FSAAG2ABA accepts a 0V to 10V DC input from the controller. This amplifier outputs 0V to 250V DC for generator field excitation. The continuous output current reaches 15 A for normal operation. Peak current delivers 30 A during transient response conditions. A pulse-width modulated (PWM) amplifier achieves 5 kHz switching frequency for efficient power conversion.
Protection Features and Component Layout
This amplifier board includes overcurrent protection for output short-circuit conditions. Overtemperature monitoring shuts down the amplifier during excessive heat. The board contains 10 integrated circuits for PWM control and feedback. Twenty-eight capacitors provide filtering and energy storage. Twenty-two resistors establish proper gain and feedback levels. The DS200FSAAG2A DS200FSAAG2ABA units share identical electrical specifications. The “ABA” suffix indicates a revised PCB layout or newer component revision.
Details
| Weight | 0.45 kg |
|---|---|
| Dimensions | 170 × 145 × 65 mm |
