Why This Pulse Amplifier Board Boosts Thyristor Gate Signals

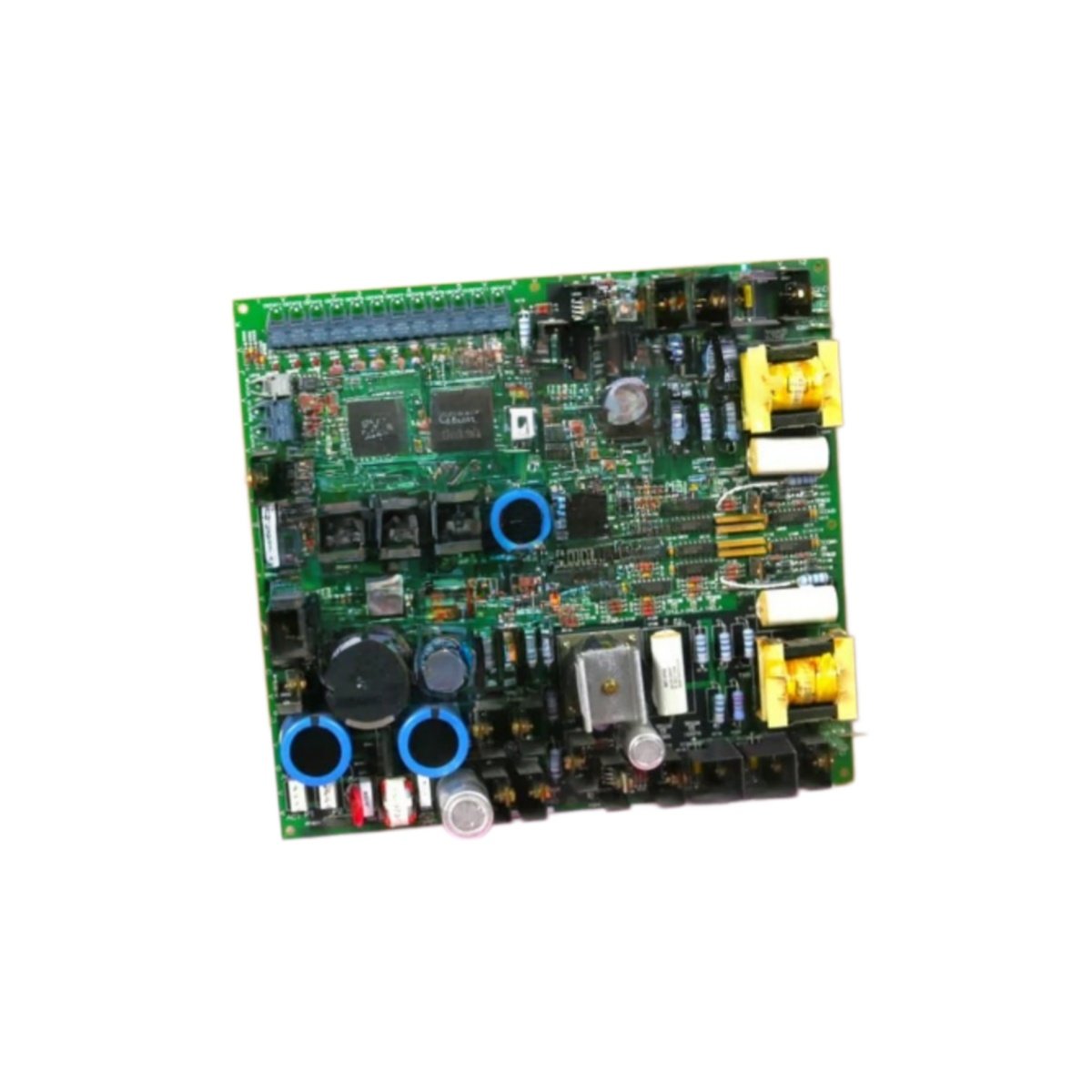

This pulse amplifier board increases the current and voltage of firing pulses. You get a powerful GE DS200FGPAG1A DS200FGPAG1AEB for industrial drive systems. It receives low-energy pulses from the firing control board. Therefore, your drive can reliably trigger large thyristors with high gate current requirements.
Technical Specifications and Physical Details
The GE DS200FGPAG1A DS200FGPAG1AEB features six independent amplifier channels with pulse transformers. Each channel delivers up to 2 amps of peak gate current. This board connects between the firing control and the power stack. Its dimensions measure approximately 270 mm in width and 190 mm in height. The unit weighs around 0.48 kg for straightforward installation. This amplifier board stores no configuration data internally. Instead, it simply boosts incoming pulses without modifying timing. Consequently, you lose no settings during a board replacement.
Below is the detailed breakdown of the hardware specifications.
| Parameter | Specification |
|---|---|
| Product Model | DS200FGPAG1A DS200FGPAG1AEB |
| Product Type | Pulse Amplifier Board |
| Brand | GE (General Electric) |
| Number of Channels | 6 independent amplifiers |
| Peak Gate Current | Up to 2 A per channel |
| Isolation Type | Pulse transformer |
| Input Interface | Low-level firing pulses |
| Output Connection | Gate leads to thyristors |
| Dimensions (W x H) | Approx. 270 x 190 mm |
| Approx. Weight | 0.48 kg |
| Energy Storage | None (real-time amplification) |
| Component Count | Single populated PCB |
Installation and Integration Notes
This board mounts between the firing control board and the power stack. You must keep all gate lead lengths as short as practical. The GE DS200FGPAG1A DS200FGPAG1AEB requires proper heat sinking for continuous operation. Therefore, ensure adequate airflow around the amplifier transistors. Always verify pulse amplitude at the thyristor gate terminals with an oscilloscope. Low amplitude indicates a faulty amplifier or poor cable connection.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
