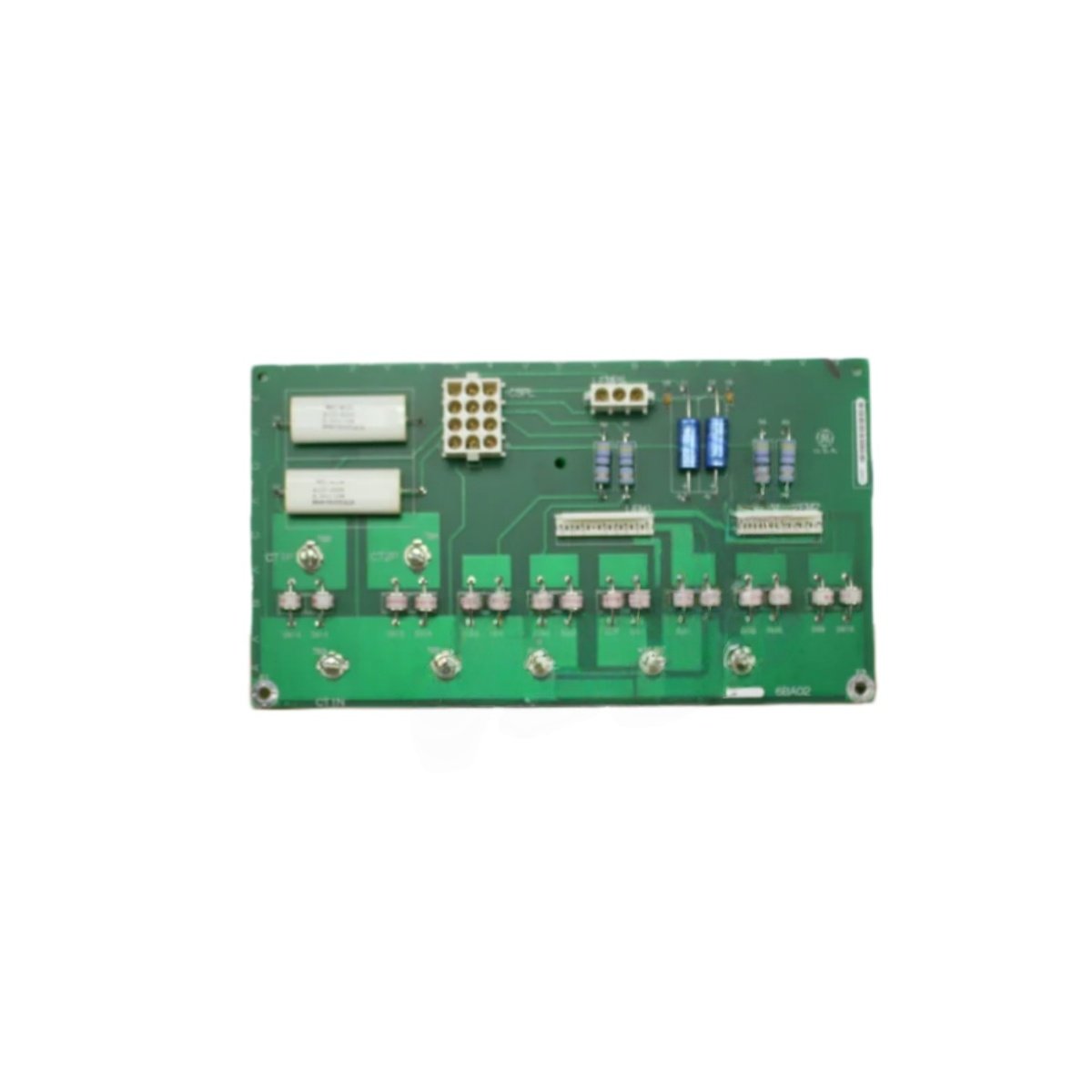

This current sensing interface monitors phase currents in GE drive systems. It converts analog current signals into digital data for the main controller. The unit mounts inside the drive cabinet near the power electronics.
Technical specifications
| Parameter | Specification |
|---|---|
| Brand | GE Energy |
| Model 1 | DS200FCSAG1A |
| Model 2 | DS200FCSAG1ACB |
| Product Family | Mark V / Drive Control |
| Category | Current Sensing Interface Board |
| PCB Layer Count | 4 layers |
| Base Material | FR-4 flame retardant |
| Component Count | Approximately 110 components |
| Integrated Circuits | 12 ICs (op-amps, ADC, logic) |
| ADC Resolution | 12 bits |
| Input Channels | 3 (three phase currents) |
| Input Range | ±10V or 4-20mA (selectable) |
| Sampling Rate | 10 kHz per channel |
| Accuracy | ±0.5% of full scale |
| Connector Types | 3 x 20-pin headers, 1 x 10-pin ribbon |
| Power Supply | 24V DC external |
| Current Consumption | 180 mA typical |
| Test Points | 8 gold-plated test points |
| Status Indicators | 2 x LEDs (PWR, DATA) |
| Dimensions (L x W) | Approx. 23 cm x 17 cm |
| Thickness | Approx. 1.6 mm |
| Weight | Approx. 0.28 kg |
| Energy Storage | 6 x electrolytic capacitors (47 µF each) |
| Operating Temperature | 0°C to 55°C |
| Mounting | 4 x screw holes (M4) |
Detailed Technical Analysis
This current sensing interface monitors three phase currents from the drive output. It accepts either ±10V or 4-20mA input signals from current transducers. A 12-bit ADC converts each analog signal into digital data. The board samples each channel at 10 kHz for accurate feedback.
Now let us examine its signal processing features. Approximately 110 components populate both sides of this circuit board. Twelve integrated circuits include operational amplifiers and analog-to-digital converters. The board achieves ±0.5% accuracy across the full input range. Six electrolytic capacitors filter the power supply for clean operation.
This current sensing interface draws 180 milliamps from a 24V DC supply. Two LED indicators show power status and data activity. Eight gold-plated test points allow signal monitoring with an oscilloscope. The board connects to the main controller via three header connectors.
Installation and Connection Guidelines
You mount this board using four M4 screws with insulating standoffs. Connect the 24V DC power supply to the designated terminal block. Wire current transducer outputs to the appropriate input channels. This board automatically scales signals based on jumper settings.
Use shielded twisted-pair cables for all analog input connections. Proper shielding prevents electrical noise from corrupting current readings. Verify input signal ranges before applying power to the board. Always power down the drive before inserting or removing this interface.
Practical Applications
Engineers use this current sensing board for drive repair and restoration. It provides critical feedback for motor current regulation loops. This component also works in legacy drive upgrade projects. Its high accuracy suits precision torque control applications.
Summary of Features
To conclude, this current sensing interface monitors three phase currents at 10 kHz. It weighs 0.28 kilograms and includes a 12-bit ADC. Choose DS200FCSAG1A DS200FCSAG1ACB for reliable current feedback in drive systems.
