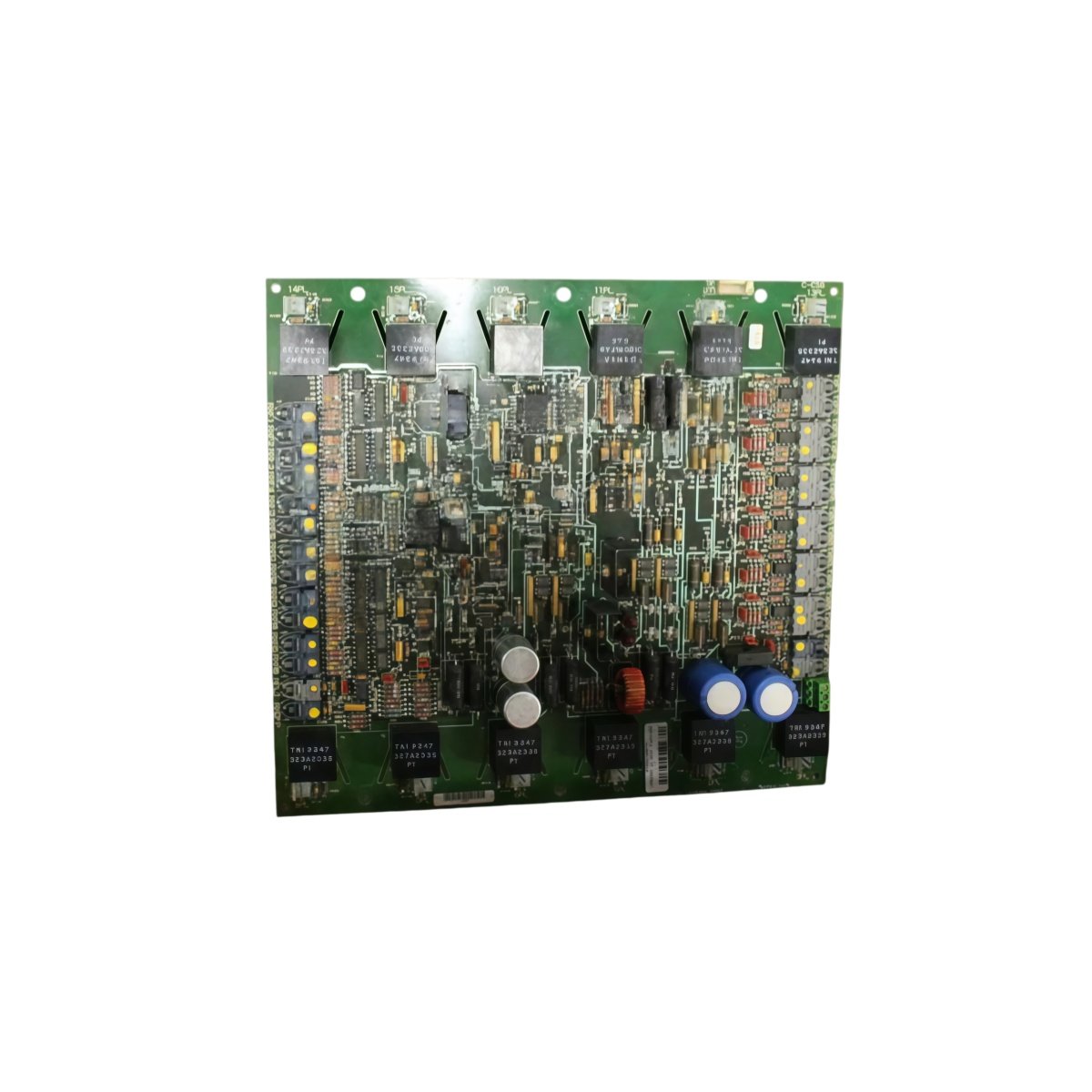

The DS200FCRRG1A DS200FCRRG1ACA generates precise firing pulses for thyristor power converters. This board controls the conduction angle of SCRs in GE Mark V drive systems. You can rely on it for accurate phase control and power regulation.
Key Technical Parameters
The table below lists all essential technical specifications for this firing circuit control board.
| Specification | Details |
|---|---|
| Part Numbers | DS200FCRRG1A DS200FCRRG1ACA |
| Product Type | Firing Circuit Control Board |
| Compatibility | GE Mark V drive systems |
| Number of Firing Channels | 6 independent channels |
| Firing Pulse Width | 50 µs to 500 µs (programmable) |
| Firing Angle Range | 0° to 180° (electrical) |
| Pulse Transformer Output | 5V to 15V (isolated) |
| Sync Input | 3-phase line voltage |
| Isolation | 2500V RMS (channel to backplane) |
| Number of Components | 14 ICs, 35 capacitors, 32 resistors |
| Dimensions (W x H x D) | 280 mm x 80 mm x 25 mm |
| Weight | Approx. 0.59 kg |
| Connector Type | 2 x 50-pin backplane connectors |
| PCB Material | FR4 with conformal coating |
| Operating Temperature | -20°C to 65°C |
Physical Characteristics and Installation
This firing circuit control board weighs approximately 0.59 kg for secure rack mounting. Its dimensions measure 280 mm x 80 mm x 25 mm for Mark V drive racks. First, align the DS200FCRRG1A DS200FCRRG1ACA with the backplane connectors. Then, press firmly until the board seats completely. Finally, secure the board using the top and bottom retaining screws. A conformal coating protects the PCB from moisture and dust.
Firing Pulse Specifications
The DS200FCRRG1A DS200FCRRG1ACA provides 6 independent firing channels for three-phase SCR bridges. Each channel produces pulses with programmable width from 50 µs to 500 µs. The firing angle adjusts from 0° to 180° electrical for full power control. Pulse transformer outputs range from 5V to 15V isolated for direct SCR gate connection. A 3-phase sync input ensures proper line commutation timing.
Protection and Component Layout
2500V RMS isolation separates the low-voltage control circuits from the high-power SCR gates. This design protects the controller from voltage spikes. The board contains 14 integrated circuits for firing pulse generation and timing. Thirty-five capacitors provide filtering and pulse shaping. Thirty-two resistors establish proper current limits and timing constants. The DS200FCRRG1A DS200FCRRG1ACA units share identical electrical specifications. The “ACA” suffix indicates a revised PCB layout or newer component revision.
Details
| Weight | 0.45 kg |
|---|---|
| Dimensions | 254 × 178 × 5 mm |
