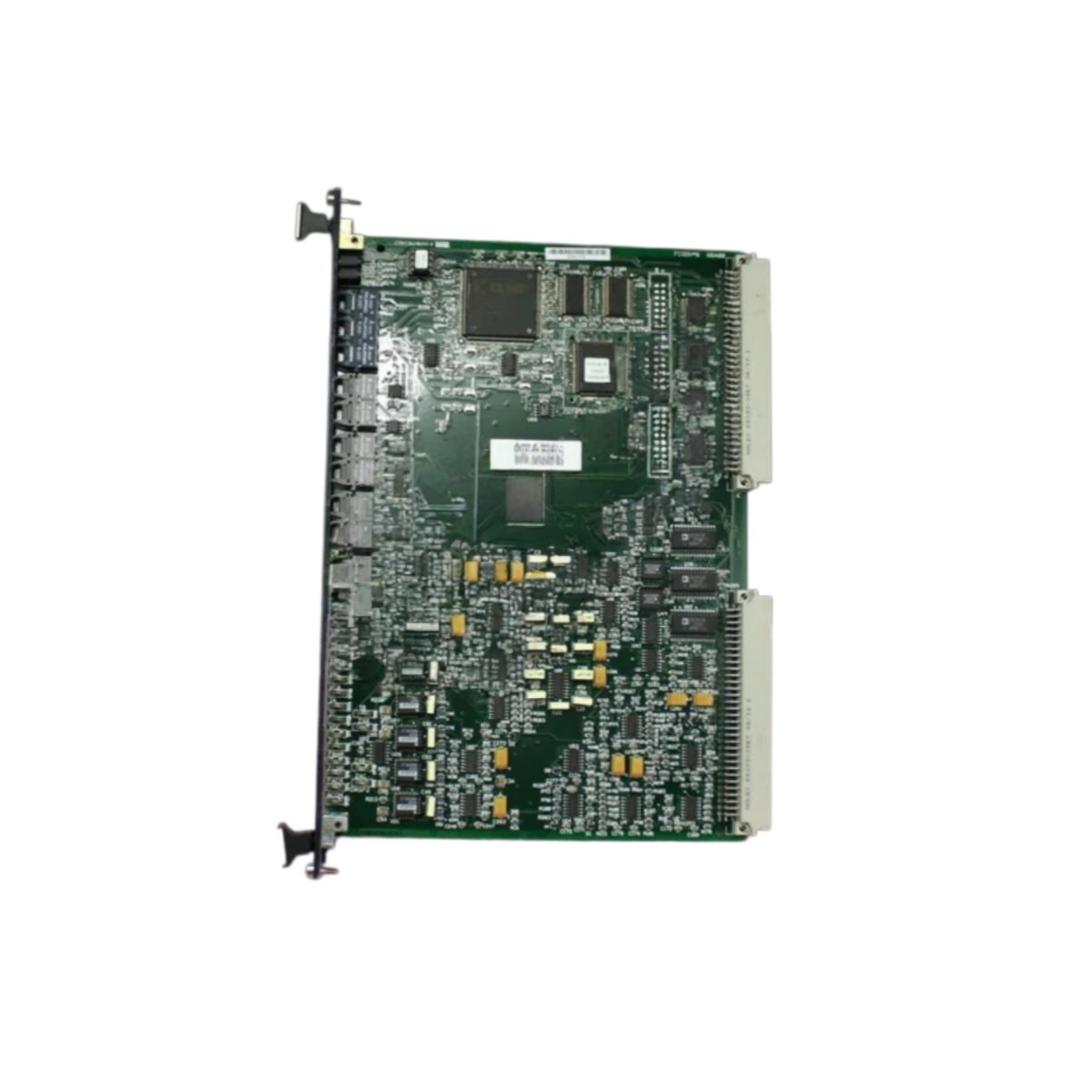

DS200FCGDH1B DS200FCGDH1BBA manages communication in GE drive systems. This control board processes feedback signals and generates gate drive commands. The unit mounts inside the drive cabinet as a critical component.
Technical specifications
| Parameter | Specification |
|---|---|
| Brand | GE Energy |
| Model 1 | DS200FCGDH1B |
| Model 2 | DS200FCGDH1BBA |
| Product Family | Mark V / Drive Control |
| Category | PC Control Module Board |
| PCB Layer Count | 6 layers |
| Base Material | FR-4 flame retardant |
| Component Count | Approximately 130 components |
| Integrated Circuits | 15 ICs (processor, logic, drivers) |
| Processor Type | 32-bit DSP |
| Memory | 512 KB RAM, 1 MB Flash |
| Connector Types | 3 x 50-pin headers, 2 x fiber optic ports |
| Communication | Fiber optic serial link |
| Power Supply | 24V DC external |
| Current Consumption | 250 mA typical |
| Status Indicators | 4 x LEDs (PWR, RUN, TX, RX) |
| Test Points | 10 gold-plated test points |
| Dimensions (L x W) | Approx. 28 cm x 18 cm |
| Thickness | Approx. 2.5 cm |
| Weight | Approx. 0.35 kg |
| Energy Storage | 8 x electrolytic capacitors (100 µF each) |
| Operating Temperature | 0°C to 55°C |
| Mounting | 4 x screw holes (M4) |
Detailed Technical Analysis
DS200FCGDH1B DS200FCGDH1BBA uses a 6-layer PCB for signal integrity. The inner layers provide power distribution and noise shielding for reliable operation. Approximately 130 components populate both sides of this control board. A 32-bit DSP executes real-time control algorithms for drive systems.
Now let us examine its communication features. DS200FCGDH1B DS200FCGDH1BBA uses fiber optic ports for noise-immune links. These ports connect to gate driver boards without electrical interference. The board includes 512 KB of RAM for data buffering and storage. It stores its firmware in 1 MB of flash memory permanently.
The board draws 250 milliamps from a 24V DC external supply. Eight electrolytic capacitors filter the input power effectively. DS200FCGDH1B DS200FCGDH1BBA features four LED status indicators for diagnostics. A green PWR LED shows the supply is present and stable. The TX and RX LEDs indicate fiber optic communication activity status.
Installation and Connection Guidelines
You mount this board using four M4 screws with insulating standoffs. Connect the 24V DC power supply to the designated terminals. DS200FCGDH1B DS200FCGDH1BBA requires a clean, stable power source for operation. Handle fiber optic cables carefully to avoid damaging the ports.
Use proper ESD precautions when handling this control board. The DSP and memory ICs are sensitive to static discharge. Verify all cable connections before applying power to the system. DS200FCGDH1B DS200FCGDH1BBA automatically boots its firmware upon power-up.
Practical Applications
Engineers use this control board for GE drive repair and refurbishment projects. It serves as a direct replacement for failed original boards. DS200FCGDH1B DS200FCGDH1BBA also works in legacy drive upgrade applications. Its fiber optic communication suits high-noise industrial environments perfectly.
Summary
To conclude, DS200FCGDH1B DS200FCGDH1BBA features a 32-bit DSP and 6-layer PCB. It weighs 0.35 kilograms and includes fiber optic communication ports. Choose DS200FCGDH1B DS200FCGDH1BBA for reliable drive control board replacement.
