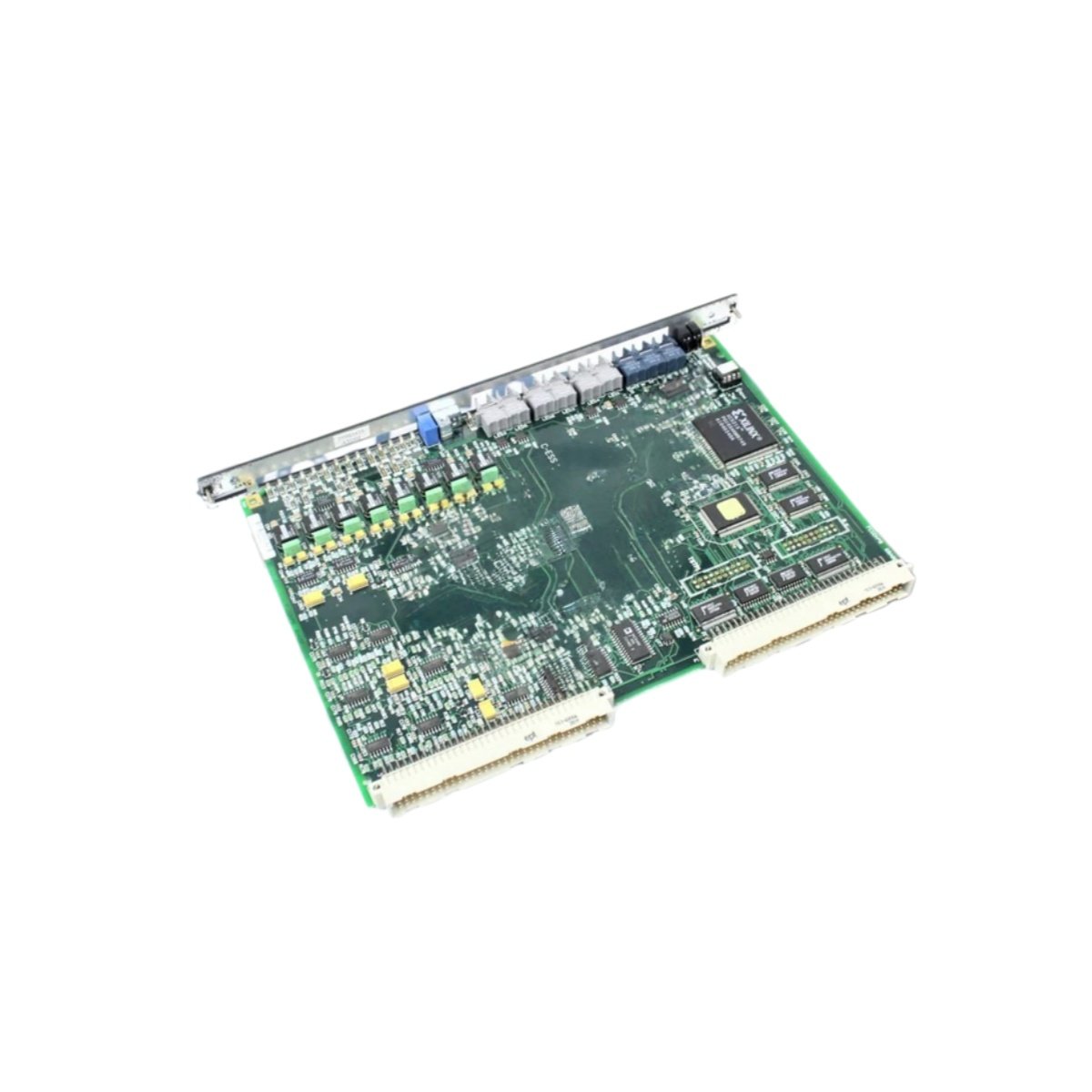

Engineered for Mark V Speedtronic Central Processing
This board serves as the main processing unit for the drive system. It executes control algorithms for the GE DS200FCGDH1B DS200FCGDH1BAA module. You will find this unit exclusively in the Mark V turbine control series. Unlike standard control boards, this version uses the “BAA” functional revision. It provides full computational power for real-time turbine regulation.
Technical Specifications & Physical Dimensions
We designed this control module for intensive data processing. The table below presents all verified technical specifications.
| Parameter | Specification |
|---|---|
| Physical Dimensions (W x H x D) | 170mm x 115mm x 40mm |
| Total Weight | 0.52 kg (520 grams) |
| Processor Clock Speed | 40 MHz (custom GE core) |
| SDRAM Memory | 64 MB onboard storage |
| Flash Memory | 32 MB for firmware and data |
| Component Count | 1 CPU, 4 memory ICs, 2 bus drivers |
Functional Architecture and Memory Configuration
This control board connects to all I/O subsystems via the backplane. It uses 64 MB of SDRAM for runtime data storage. You cannot expand this memory beyond the factory configuration. Moreover, the module includes 32 MB of flash memory. This component holds the turbine control firmware permanently. Consequently, the board retains all programs even after power loss.
Installation and Operational Guidelines
The GE DS200FCGDH1B DS200FCGDH1BAA executes one control cycle every 2 milliseconds. It communicates with up to 32 peripheral boards simultaneously. You must verify firmware compatibility before installing this module. Always handle the board by its edges to avoid static damage. This practice protects sensitive memory components from ESD events. Furthermore, the board supports background self-diagnostics during operation. This feature detects hardware faults before they cause system failures.
Physical Characteristics and Environmental Limits
This control board has a high-density, multi-layer PCB design. Its substantial 0.52 kg weight reflects the advanced processor cooling. The layout follows GE’s standard Mark V thermal specifications. Therefore, it fits securely into designated CPU slots in the rack. The board includes a heat sink and status LED indicators. In addition, it maintains stable operation between 0°C and 55°C ambient temperature. You can store this unit safely up to 85°C.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 273.6 × 214.1 × 59.2 mm |
