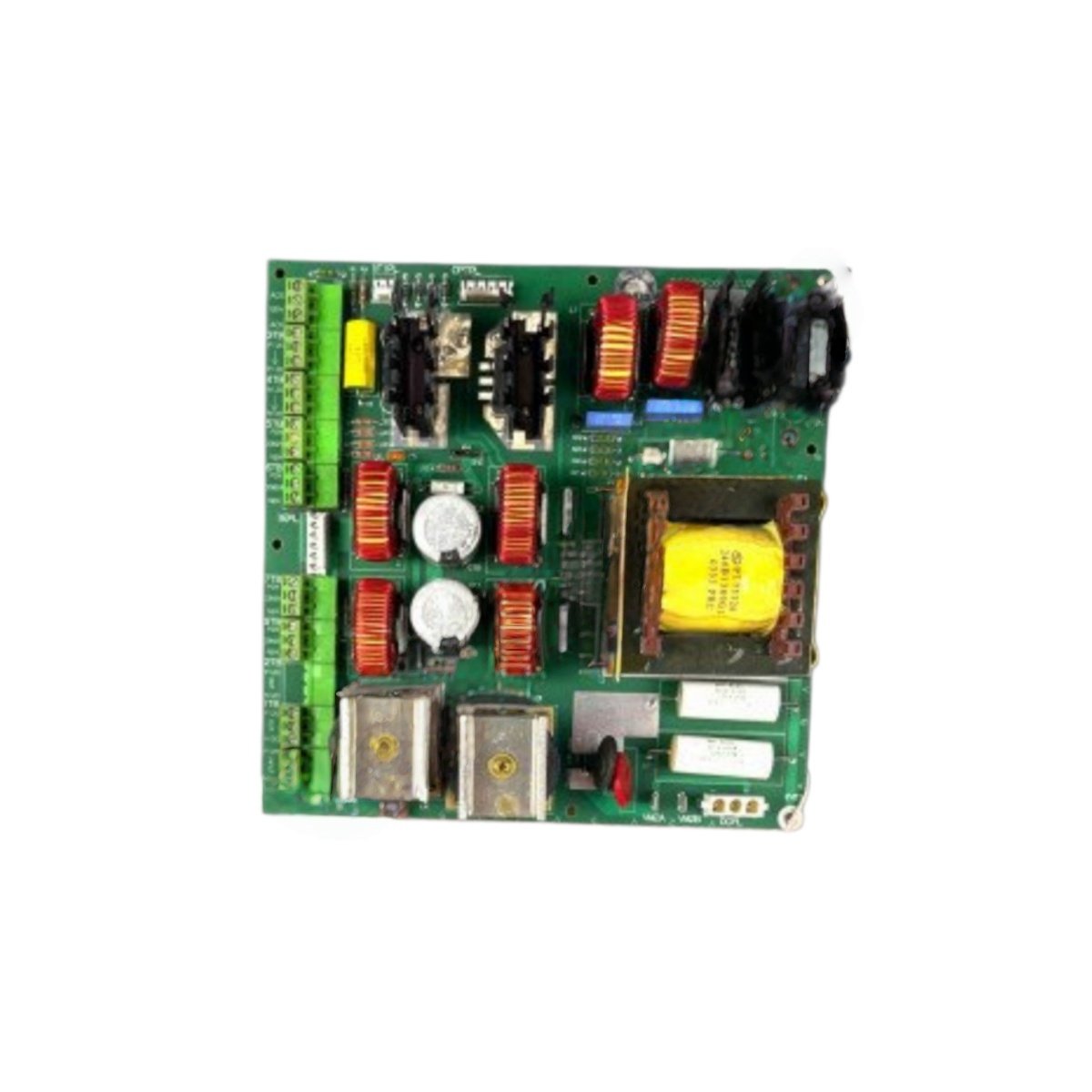

Core Function of This Bulk Power Supply Board
The GE DS200EXPSG1ABB converts AC line power into DC bus voltage. This bulk power supply board feeds multiple inverter stages in a drive cabinet. It provides the main DC link for motor control applications. Consequently, the module ensures stable energy distribution across all connected drives.
Physical Dimensions and Board Layout
This bulk power supply board measures 385 mm in total length. Its width reaches 265 mm for a full-size drive form factor. The board thickness stands at 35 mm including heat sink and capacitors. You will find 412 discrete components on this heavy-duty PCB. These include large electrolytic capacitors, rectifier diodes, and current shunts. The GE DS200EXPSG1ABB weighs approximately 1.85 kilograms for robust mechanical stability.
Input Voltage and Rectification Section
The GE DS200EXPSG1ABB accepts 380 to 480 V AC three-phase input. A three-phase full-bridge rectifier converts this AC into DC voltage. The rectifier uses six 50 A fast-recovery diodes for efficient conversion. This design produces a nominal DC bus voltage of 650 V DC. The board also includes an inrush current limiting circuit for safe startup.
DC Bus Output and Energy Storage
This bulk power supply board delivers up to 25 A of continuous DC current. The main DC output supplies inverters, choppers, and braking modules. Twelve 2,200 µF electrolytic capacitors form the bulk energy storage bank. These capacitors store significant energy to handle load transients. Total stored energy reaches approximately 38 joules at nominal DC voltage. A built-in discharge resistor bleeds this energy within 60 seconds after power-off.
Interface Connectors and Monitoring Features
A single 20-pin ribbon cable connector carries control and feedback signals. Additionally, two heavy-duty bus bars provide the main DC output connection. Each bus bar uses M8 threaded studs for secure cabling. The board also includes one 6-pin header for external precharge control. Three status LEDs indicate input presence, DC bus ready, and fault conditions.
Component Count and Protective Circuits
| Parameter | Specification |
|---|---|
| Model | DS200EXPSG1ABB |
| Brand | GE (General Electric) |
| Category | Bulk Power Supply Board |
| Length x Width | 385 x 265 mm |
| Thickness | 35 mm |
| Weight | 1.85 kg |
| Component Count | 412 |
| Input voltage | 380-480 V AC, three-phase |
| Rectifier diodes | 6 x 50 A fast-recovery |
| DC bus voltage | 650 V DC nominal |
| Continuous current | 25 A DC |
| Bulk capacitors | 12 x 2,200 µF |
| Total stored energy | 38 Joules |
| Discharge time | 60 seconds (internal resistor) |
| Control connector | 20-pin ribbon cable |
| DC output bus bars | 2 x M8 threaded studs |
| Status indicators | 3 LEDs (input, bus, fault) |
| Operating temperature | 0°C to +50°C |
Installation and Safety Notes
You must mount this board in a dedicated drive cabinet section. Always wait 60 seconds after power-off before touching the DC bus. Then, verify that the precharge circuit activates before applying full load. The module requires forced air cooling of 100 CFM across the heat sink. Regular inspection of the bulk capacitors every five years prevents unexpected failures.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
