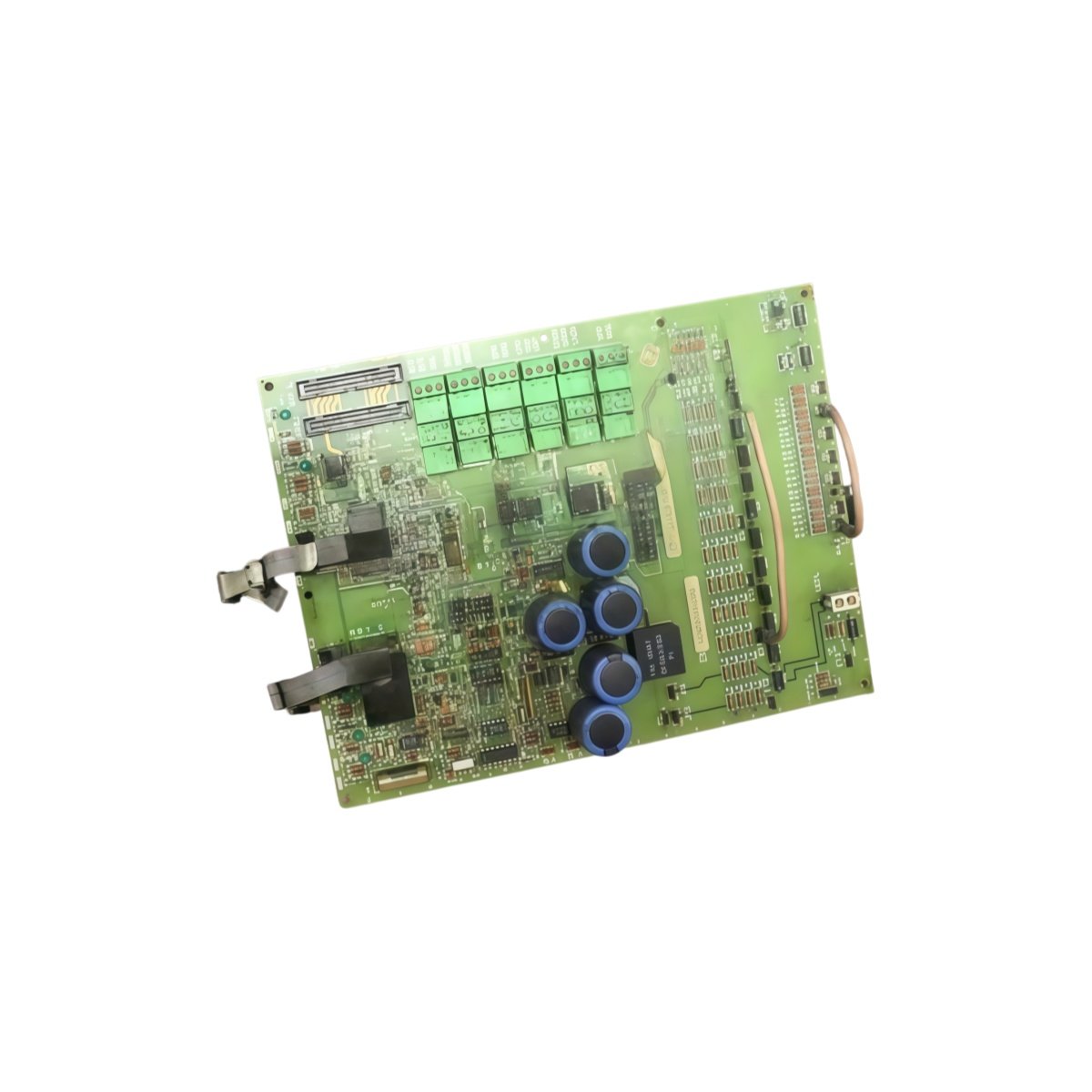

This excitation control board manages generator field current in GE Mark V systems. It regulates voltage output and protects against overexcitation conditions. You will find this board in power plants and industrial generator applications.

Key Technical Specifications

Physical Layout and Rack Mounting

This excitation control board measures 300 mm in width and 200 mm in height. Its depth reaches 40 mm for standard Mark V racks. The unit weighs 1.4 kilograms due to the robust heatsink and power components. Two edge connectors plug directly into the backplane for signal routing.

Internal Architecture and Energy Storage

Three hundred twelve components populate this multi-layer control board. Six 2200 µF capacitors create a massive 13200 µF total energy storage bank. This bank supplies peak field current during transient load changes. Consequently, the generator maintains stable voltage output under fluctuating grid demands. Multiple SCR drivers control the excitation power stage with microsecond precision.

Field Regulation and Output Capacity

The board regulates generator field current from 0 to 15 amps continuously. It can deliver up to 25 amps for short-duration field forcing events. A precision PID loop maintains voltage within ±0.5% of setpoint. The control algorithm responds to grid disturbances in under 50 milliseconds. Therefore, the generator rides through faults without tripping offline unnecessarily.

Sensing and Protection Features

Three-phase voltage sensing inputs monitor generator terminal voltage at 0–600V AC. Current transformers provide field current feedback for closed-loop regulation. The board includes loss-of-field detection to prevent generator damage. Overexcitation protection limits field current during severe grid sags. Green and red LEDs indicate normal operation or fault conditions respectively.

Compatibility Note

Both DS200EXDEG1A DS200EXDEG1ABA share identical electrical specifications. The ABA suffix indicates a later hardware revision with enhanced thermal management. You can use either version interchangeably in any Mark V excitation system.
