Technical Specifications
| Parameter | Value |
|---|---|
| Brand | GE |
| Model | DS200DTBDG1A DS200DTBDG1ABB |
| Category | Terminal Board |
| Weight | 0.95 lbs (0.43 kg) |
| Dimensions | 7.8 x 5.4 x 1.3 inches |
| PCB Layers | 2-layer board |
| Component Count | 48 discrete components |
| Terminal Positions | 32 screw-type positions |
| Terminal Pitch | 5.08 mm (0.2 inches) |
| Wire Gauge Range | 14-24 AWG |
| Voltage Rating | 300V AC maximum |
| Current Rating | 10A per terminal |
| Terminal Material | Brass with nickel plating |
| Signal Pass-through | Direct wire-to-board |
| Filtering | Optional RC networks |
| Marking Strip | Removable label strip |
| Operating Voltage | No active electronics |
| Current Draw | 0 mA (passive board) |
| Energy Storage | None (passive assembly) |
| Temperature Range | -20°C to 85°C |
Physical Construction and Component Layout

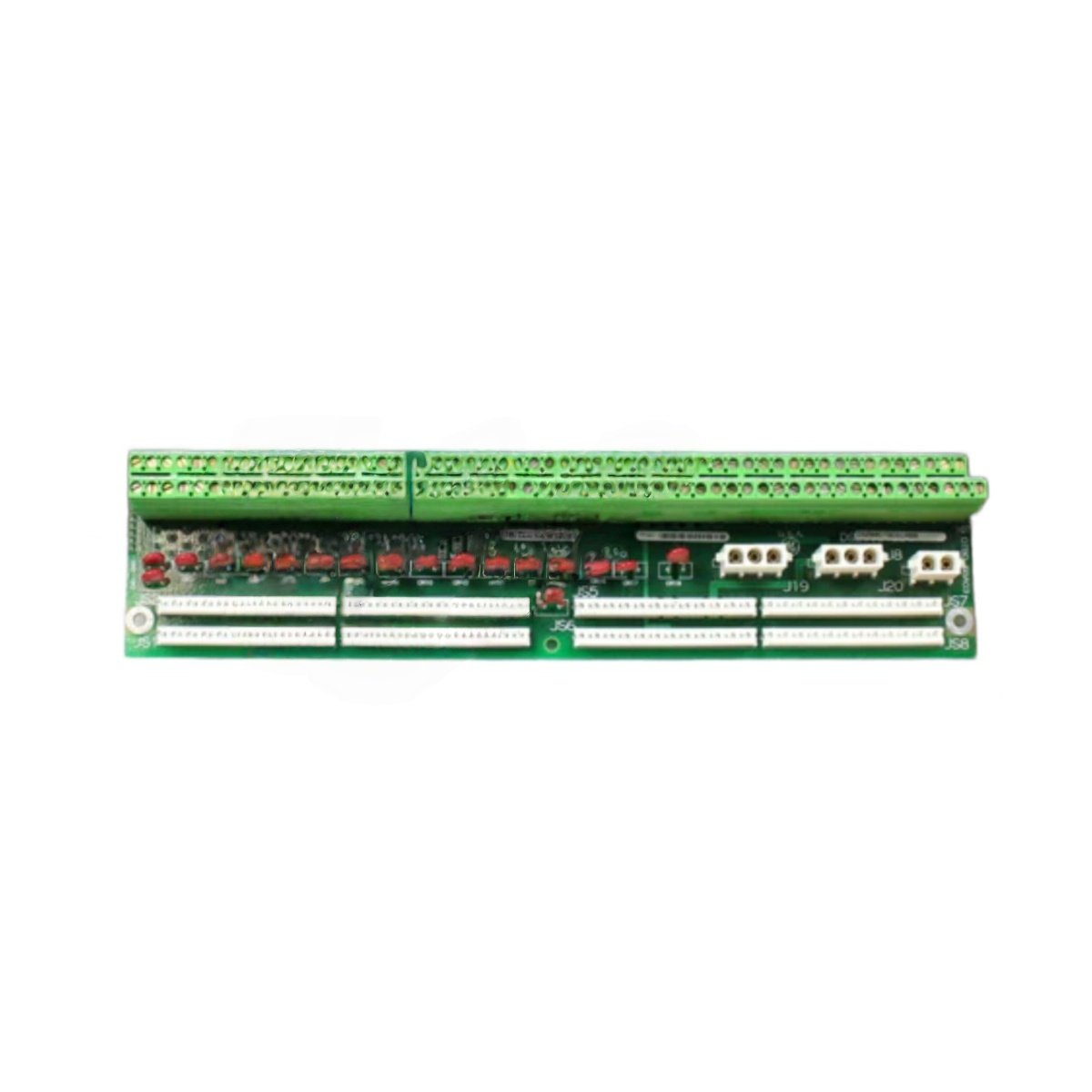

This DS200DTBDG1A DS200DTBDG1ABB terminal board measures 7.8 inches in length. Its width reaches 5.4 inches with a thickness of 1.3 inches. The total weight comes to approximately 0.95 pounds. Manufacturers placed 48 discrete components on this two-layer PCB. These components include 32 terminal blocks, jumper headers, and optional RC filter networks. Both DS200DTBDG1A and DS200DTBDG1ABB share the same terminal layout design.
Terminal Specifications and Wiring Options
DS200DTBDG1A DS200DTBDG1ABB provides 32 screw-type terminal positions for field wiring. Each terminal uses 5.08 millimeter or 0.2 inch pitch spacing. The terminals accept wire gauges from 14 to 24 AWG comfortably. Brass contacts with nickel plating resist corrosion over time. Each terminal handles up to 10 amps at 300V AC maximum. A removable label strip allows clear identification of each connection point. Consequently, technicians can wire and troubleshoot the board easily.
Signal Routing and Filtering Features
DS200DTBDG1A DS200DTBDG1ABB routes signals directly from terminals to the backplane. The board provides straight pass-through connections with no active electronics. Optional RC networks provide basic filtering for noisy signals. Jumper headers configure the filtering options per channel. The board operates as a completely passive assembly. Therefore, it draws zero current from the system power supply.
Application Use and System Integration
DS200DTBDG1A DS200DTBDG1ABB serves as the field wiring interface for GE control systems. It connects sensors, actuators, and field devices to the main controller. The board operates reliably from -20°C to 85°C ambient temperature. You will find this terminal board in GE drive and turbine control cabinets. For example, it terminates analog signals, digital I/O, and power wiring. The board contains no energy storage components for safety compliance. Therefore, this terminal board provides a simple and reliable field interface for industrial automation systems.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
