I/O modules

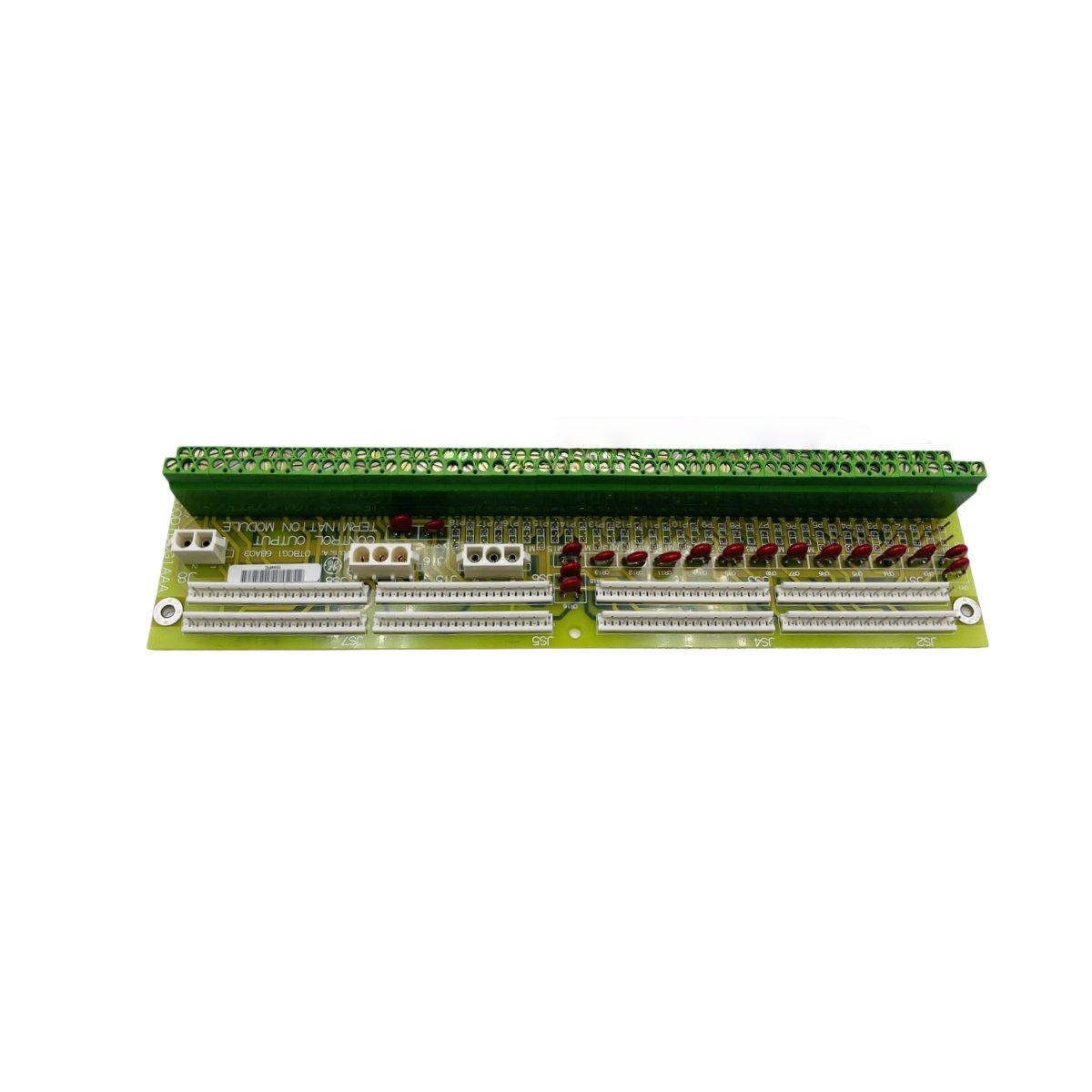

This connector relay terminal board interfaces field wiring with Mark V turbine controls. It routes discrete signals between field devices and the main processor. You will use this board to organize I/O connections in a single location.

Key Technical Specifications

Physical Layout and Cabinet Mounting

This terminal board measures 350 mm in width and 220 mm in height. Its depth reaches 45 mm for standard panel mounting. The unit weighs 1.6 kilograms due to the metal frame and multiple relays. Four M5 mounting holes secure the board to a backplate vertically.

Internal Circuitry and Energy Storage

One hundred sixty-eight components populate this dense relay interface board. Four 470 µF capacitors form an 1880 µF total energy storage bank. This bank filters coil supply voltage for consistent relay operation. Consequently, the board prevents false switching during power fluctuations. Each relay includes a flyback diode for back-EMF suppression.

Relay Configuration and Contact Ratings

Sixteen electromechanical relays provide isolated dry contacts for field devices. Each relay coil operates on 24V DC from the backplane supply. The contacts handle 5 amps at 250V AC for motor starters and solenoids. They also switch 5 amps at 30V DC for PLC input modules. Gold-plated contacts ensure reliable switching at low signal levels.

Field Wiring and Status Indication

Six removable 20-pin terminal blocks accept field wiring from 0.5 mm² to 2.5 mm². You can land wires without special tools or crimp terminals. Two 50-pin ribbon connectors link the board to the Mark V controller. Sixteen red LEDs illuminate when each relay coil energizes. Therefore, you can verify output states without a multimeter.

Compatibility Note

Both DS200DTBCG1A DS200DTBCG1AAA share identical electrical and mechanical specifications. The AAA suffix indicates a later hardware revision with improved terminal labeling. You can use either version interchangeably in any Mark V cabinet.
