Core Function for Field Contact Expansion

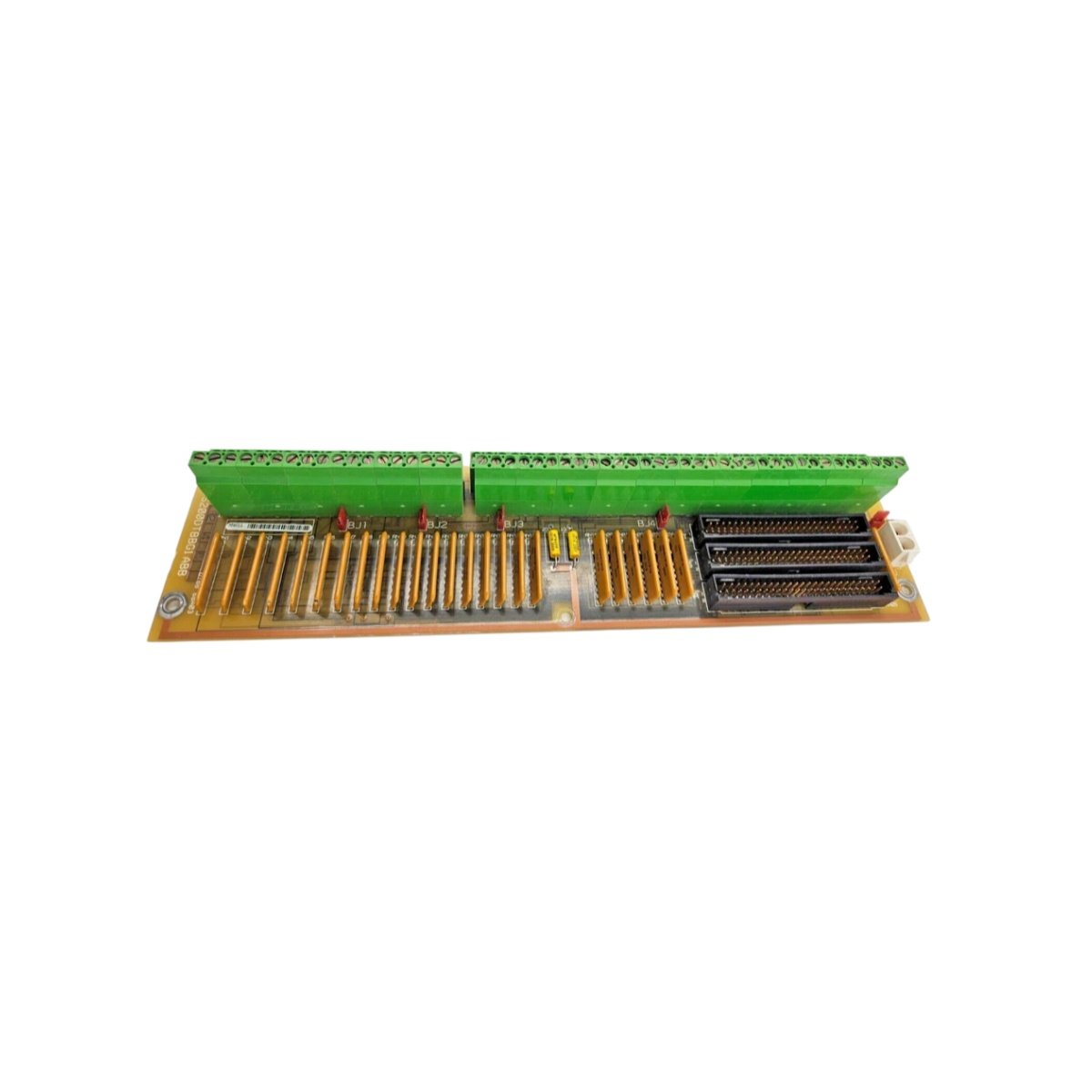

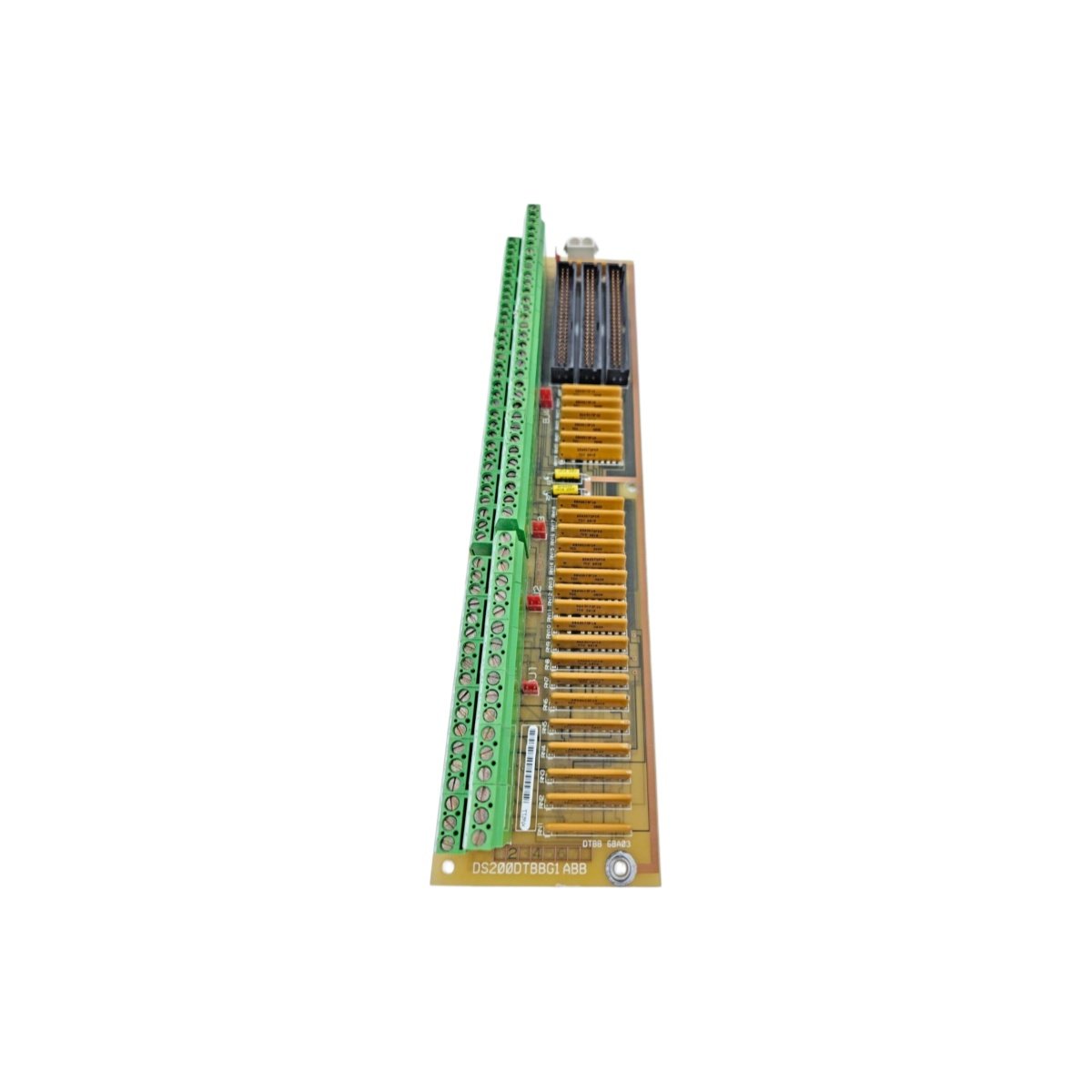

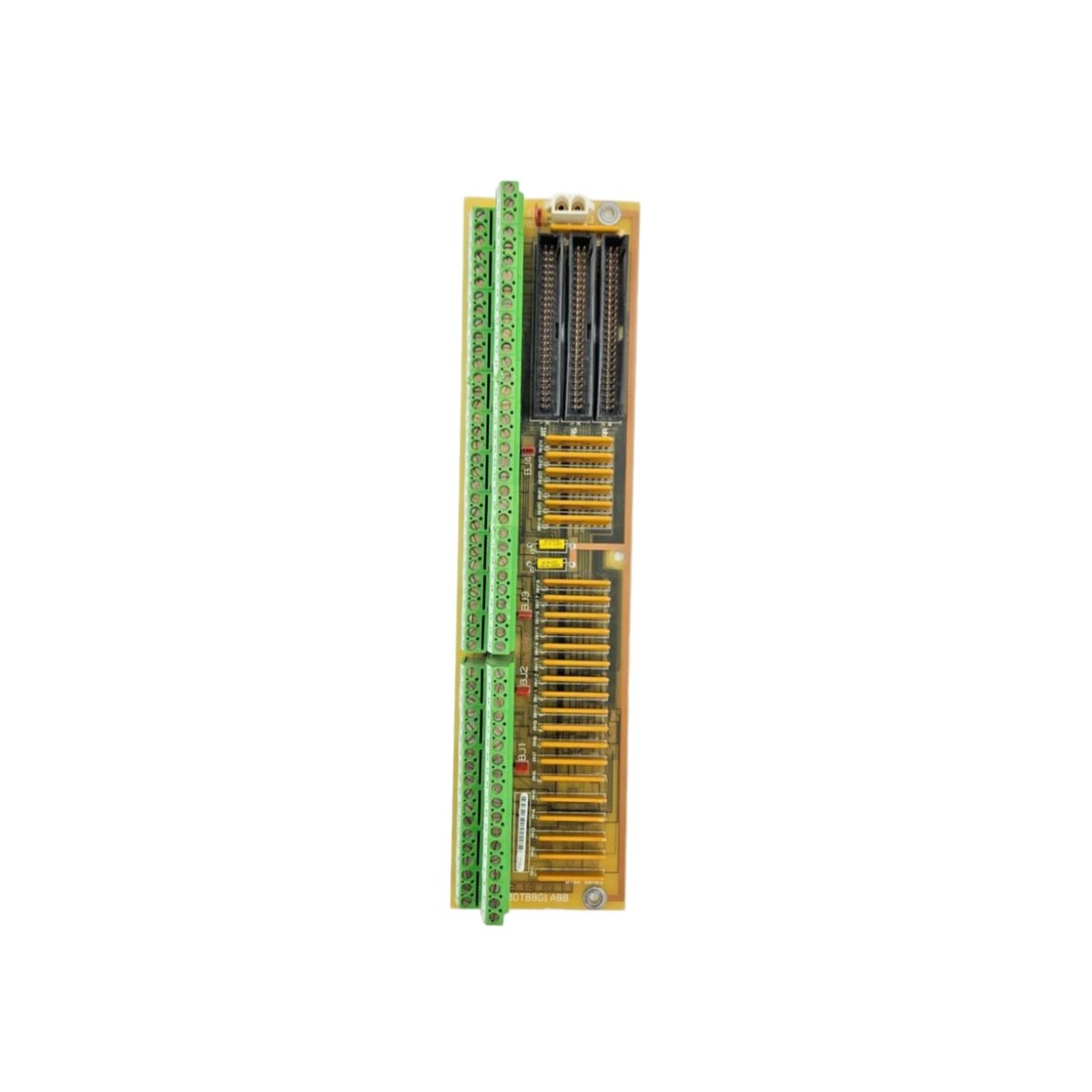

The GE DS200DTBBG1ABB expands the discrete input capacity of compatible General Electric drive and turbine control systems. This termination board provides a structured interface for connecting multiple field devices. It accepts dry contact signals from pushbuttons, limit switches, and pressure switches. Consequently, it aggregates many input points into an organized termination point for the controller.

Signal Conditioning and Electrical Isolation

This board conditions incoming contact signals to ensure proper logic level detection by the main processor. It provides electrical isolation between the field wiring and the sensitive control electronics. The DS200DTBBG1ABB features clearly labeled terminal blocks for straightforward installation and troubleshooting. Furthermore, its design includes surge suppression components to protect against voltage spikes from industrial field wiring.

Technical Specifications and Hardware Details

Engineers designed this module for mounting within the designated termination bay of a GE control cabinet. Its specifications define the input voltage range, channel count, and isolation rating. The following table details its primary functional and identification parameters.

Application in System I/O Expansion

System integrators use this board to add significant discrete input capacity without replacing existing control rack hardware. It is ideal for applications requiring many status points, such as valve position feedback or motor run signals. The GE DS200DTBBG1ABB ensures clean, organized, and reliable wiring for large-scale automation projects. Therefore, this component plays a vital role in cost-effective system expansions and upgrades.
