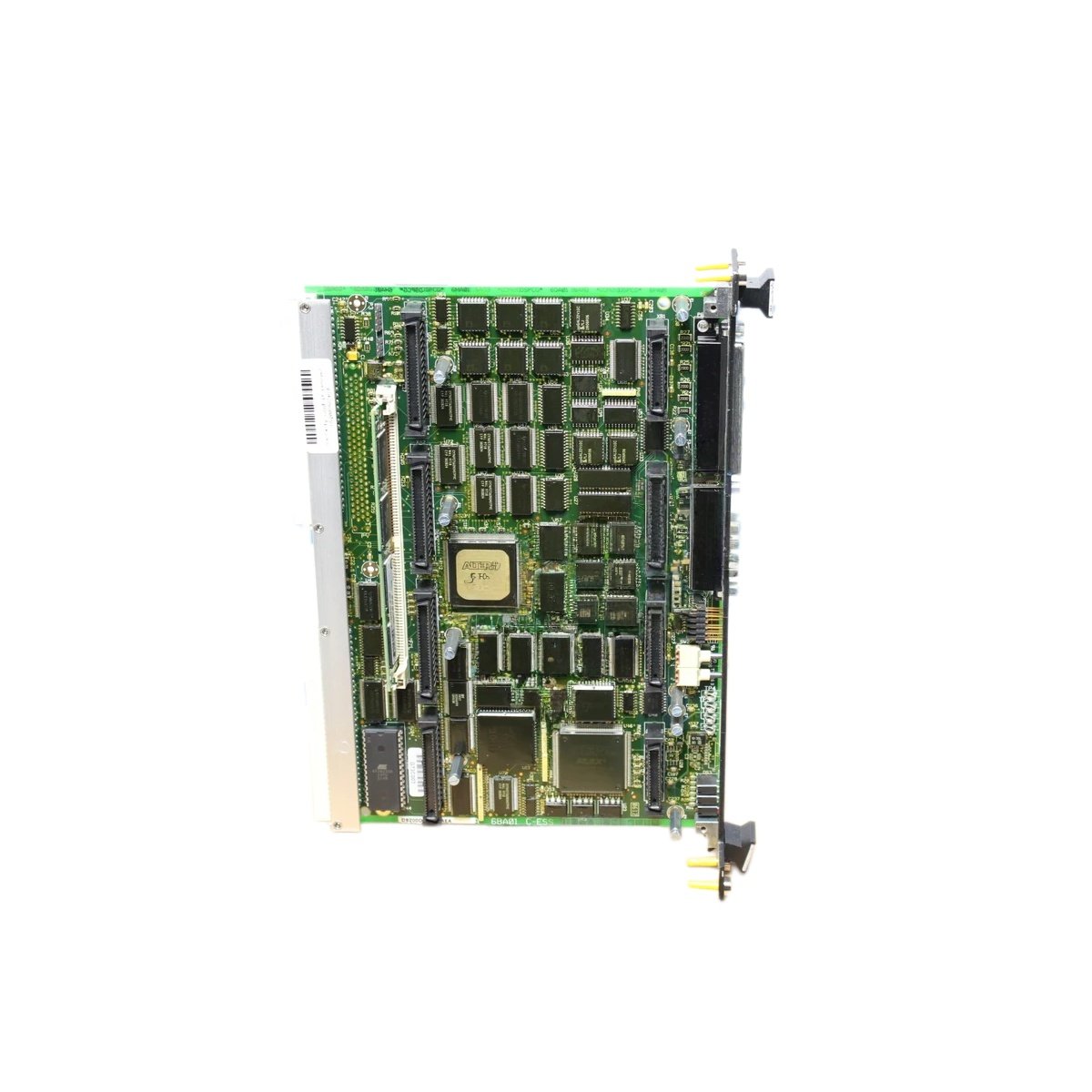

Engineered for GE Mark V Speedtronic Real-Time Calculations
This board handles high-speed signal processing for turbine control loops. It provides dedicated DSP power for the GE DS200DSPCH1A DS200DSPCH1AEA module. You will find this processor board exclusively in the Mark V turbine control series. Unlike general-purpose CPUs, this version excels at mathematical calculations. It processes analog signals and executes filtering algorithms rapidly.
Technical Specifications & Physical Dimensions
We designed this DSP board for real-time signal conditioning. The table below presents all verified technical specifications.
| Parameter | Specification |
|---|---|
| Physical Dimensions (W x H x D) | 170mm x 115mm x 40mm |
| Total Weight | 0.48 kg (480 grams) |
| Processor Type | 32-bit floating-point DSP |
| Clock Speed | 40 MHz |
| Program Memory | 512 KB Flash |
| Data Memory | 512 KB SRAM |
| Operating Voltage | 5V DC (from backplane) |
Functional Architecture and Signal Processing
This DSP board interfaces with analog input and output modules. It uses a dedicated 32-bit floating-point processor for fast math. You can configure the board for various filtering and control algorithms. Moreover, the board includes dual-port RAM for host communication. This component shares processed data with the main turbine controller. Consequently, the system performs complex calculations without burdening the primary CPU.
Installation and Operational Guidelines
The GE DS200DSPCH1A DS200DSPCH1AEA executes 10 million instructions per second. It consumes 1.2A at 5V DC from the backplane. You must verify firmware version compatibility before installation. Always handle the board by its edges to avoid static damage. This practice protects sensitive DSP components from electrostatic discharge. Furthermore, the board supports background built-in self-test routines. This feature detects processor and memory faults during operation.
Physical Characteristics and Environmental Limits
This DSP board has a high-density, multi-layer PCB with thermal pads. Its moderate 0.48 kg weight allows for easy field replacement. The layout follows GE’s standard Mark V thermal specifications. Therefore, it fits securely into designated DSP slots in the rack. The board includes a heat sink and status LED indicators. In addition, it maintains stable operation between 0°C and 55°C ambient temperature. You can store this unit safely up to 85°C.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 273.6 × 214.1 × 59.2 mm |
