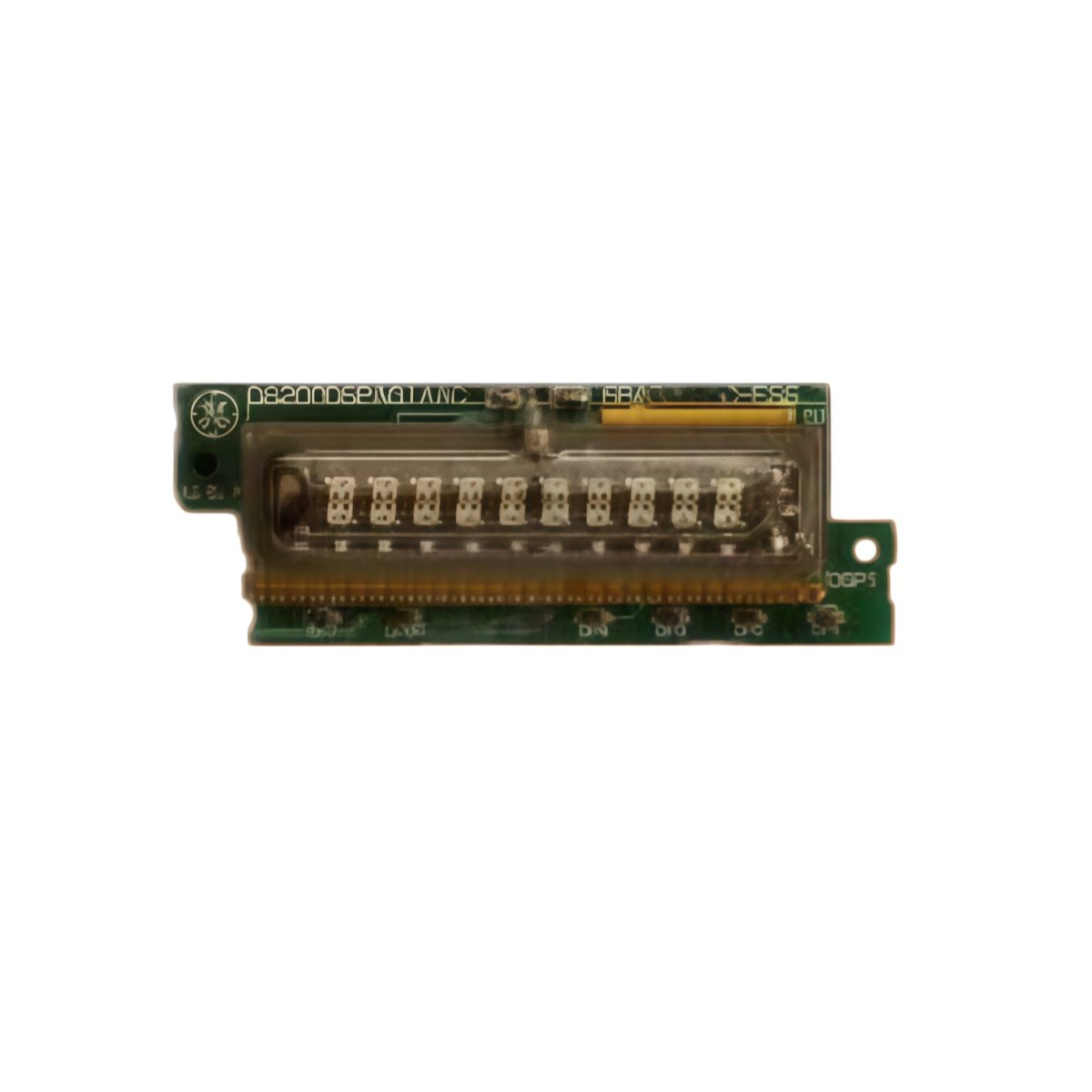

This turbine control board manages critical governor and protection functions in GE Mark V systems. It processes speed, load, and temperature signals from field sensors. You will find this board in gas and steam turbine control cabinets.

Key Technical Specifications

Physical Layout and Rack Mounting

This turbine control board measures 310 mm in width and 190 mm in height. Its depth reaches 35 mm for standard Mark V racks. The unit weighs 1.2 kilograms due to the DSP and analog circuits. Two edge connectors plug directly into the backplane for power and signals.

Internal Architecture and Energy Storage

Two hundred seventy-eight components populate this multi-layer control board. Five 1000 µF capacitors create a 5000 µF total energy storage bank. This bank provides clean power to the DSP and analog converters. Consequently, the board executes control algorithms without processor resets. A 32-bit DSP runs at 50 MHz for real-time turbine regulation.

Analog I/O and Signal Conditioning

Eight analog inputs accept 4–20 mA or 0–10V from pressure and temperature transmitters. Four analog outputs provide 4–20 mA signals to actuator positioners. Each analog channel includes galvanic isolation for noise rejection. Sixteen digital inputs monitor contact states from limit switches. Sixteen digital outputs drive relays for valve control and alarms.

Control Functions and Communication

The board executes governor control, temperature limiting, and overspeed protection. A Genius LAN port communicates with the main Mark V controller. An RS-232 port connects to a laptop for diagnostic monitoring. Green LEDs indicate processor run and communication activity. Red LEDs trigger when the board detects a fault condition.

Compatibility Note

Both DS200DSPAG1A DS200DSPAG1AAC share identical electrical and software specifications. The AAC suffix indicates a later hardware revision with enhanced analog filtering. You can use either version interchangeably in any Mark V system.
