Technical Specifications
| Parameter | Value |
|---|---|
| Brand | GE |
| Model | DS200DSPAG1A DS200DSPAG1AAB |
| Category | Digit Display Card |
| Weight | 0.52 lbs (0.24 kg) |
| Dimensions | 5.4 x 3.8 x 1.1 inches |
| PCB Layers | 4-layer board |
| Component Count | 98 discrete components |
| Display Type | 7-segment LED |
| Digit Count | 6 digits |
| Digit Height | 0.56 inches (14.2 mm) |
| Display Color | Red (high brightness) |
| Update Rate | 100 ms refresh |
| Input Interface | 8-bit parallel |
| Output Format | BCD or hex |
| Decoder Type | Onboard BCD to 7-segment |
| Dimming Control | PWM adjustable |
| Operating Voltage | 5V DC from backplane |
| Current Draw | 180 mA at 5V DC |
| Brightness | 1500 mcd per segment |
| Energy Storage | 2 x 100µF, 4 x 10µF |
| Temperature Range | 0°C to 55°C |
Physical Construction and Component Layout

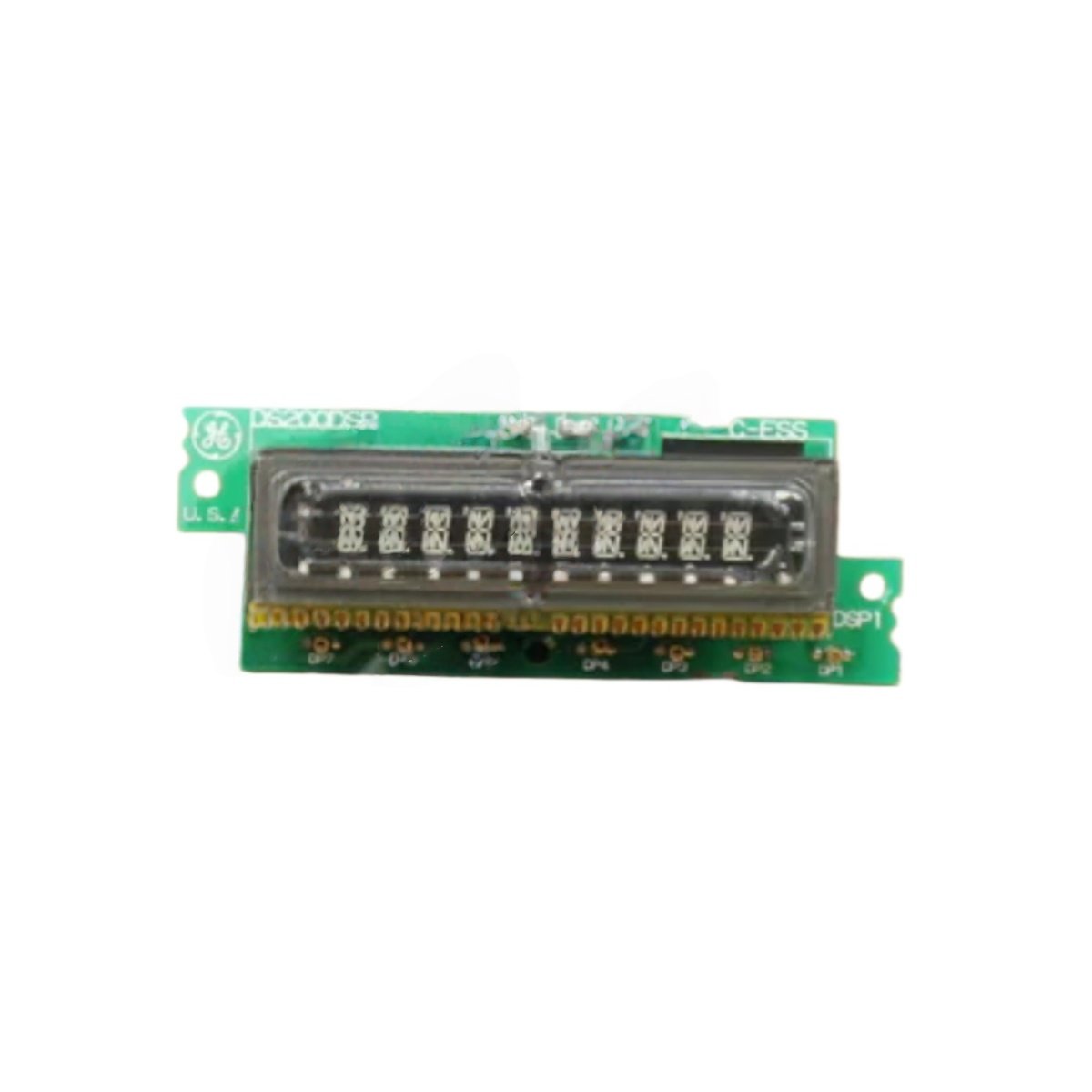

This DS200DSPAG1A DS200DSPAG1AAB digit display card measures 5.4 inches in length. Its width reaches 3.8 inches with a thickness of 1.1 inches. The total weight comes to approximately 0.52 pounds. Manufacturers placed 98 discrete components on this four-layer PCB. These components include six LED modules, a decoder IC, drivers, and current-limiting resistors. Both DS200DSPAG1A and DS200DSPAG1AAB share the same display circuit design.
Display Specifications and Visual Performance
DS200DSPAG1A DS200DSPAG1AAB features six high-brightness red 7-segment digits. Each digit measures 0.56 inches or 14.2 millimeters in height. Brightness reaches 1500 millicandelas per segment for clear visibility. A PWM dimming control allows brightness adjustment for different lighting conditions. The display refreshes every 100 milliseconds for stable viewing. Operators can read values from several feet away without strain.
Input Interface and Data Decoding
DS200DSPAG1A DS200DSPAG1AAB accepts an 8-bit parallel input interface. The onboard decoder converts BCD or hexadecimal data to 7-segment format. This decoder eliminates the need for external conversion logic. Each digit updates independently based on input data. The card displays values from 0 to 9 plus hex digits A through F. Current draw measures 180 milliamps from the 5V DC backplane.
Energy Storage and Application Use
DS200DSPAG1A DS200DSPAG1AAB integrates two 100µF capacitors for bulk storage. Four additional 10µF capacitors filter high-frequency power noise. You will find this display card in GE turbine and drive control panels. It shows critical parameters like speed, current, or temperature. The card operates reliably from 0°C to 55°C ambient. For example, it displays motor RPM or system fault codes. Therefore, this digit display card provides clear numerical readouts for industrial operator interfaces.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
