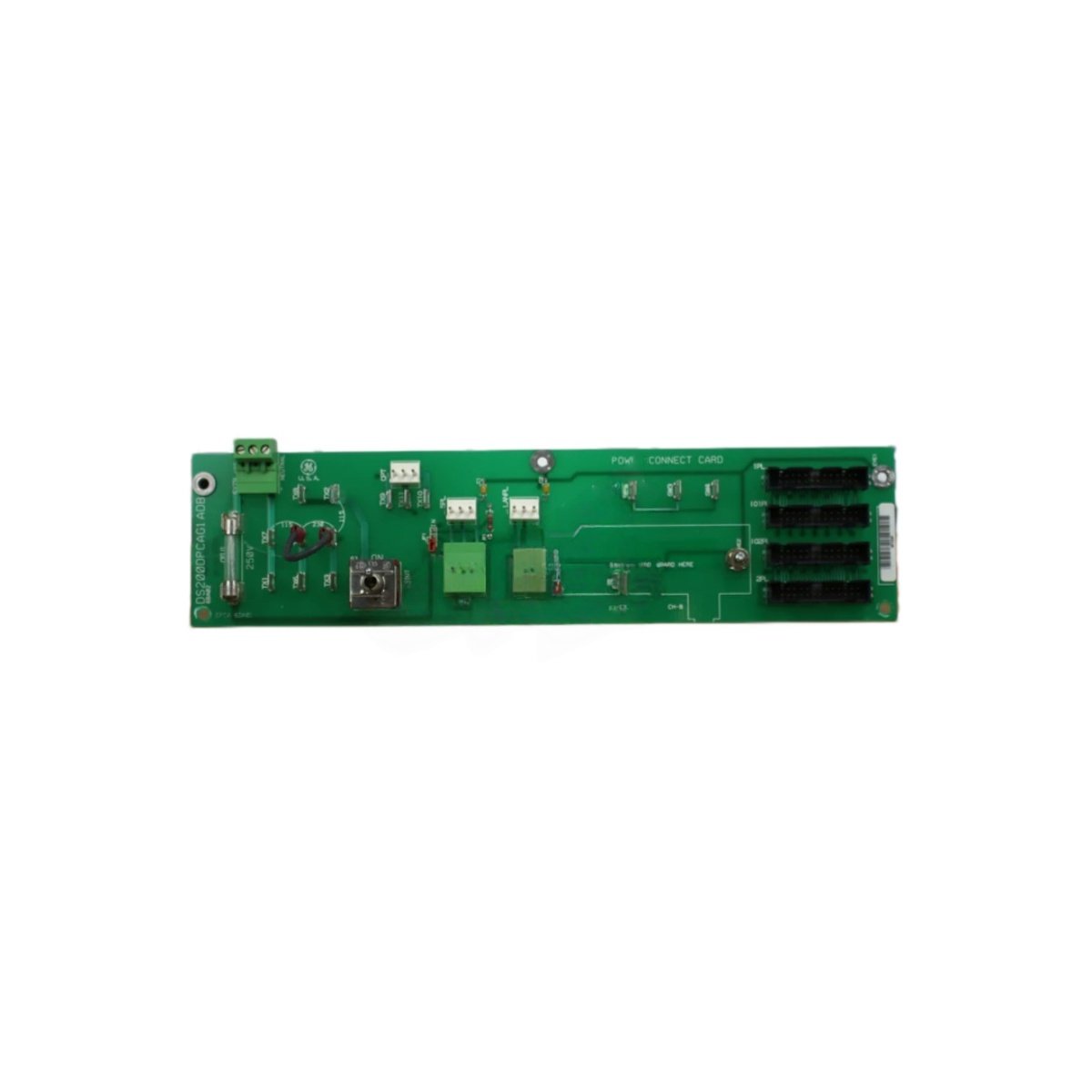

The GE DS200DPCAG1A DS200DPCAG1ADB distributes Power Connect Card in Mark V turbine control systems. This power connect card supplies 24 V DC and 5 V DC to connected field devices. It provides isolated power distribution for reliable operation in industrial environments. Weighing only 0.35 kg, the GE DS200DPCAG1A DS200DPCAG1ADB mounts inside Mark V control cabinets. Its dimensions measure 220 mm x 130 mm x 25 mm.
Power Distribution and Connection Features
The GE DS200DPCAG1A DS200DPCAG1ADB features 6 isolated output channels for power distribution. Each channel provides 24 V DC at 0.5 A for field I/O devices. The card includes LED indicators for each channel to show output status. Moreover, the GE DS200DPCAG1A DS200DPCAG1ADB provides short-circuit protection on all output channels. Consequently, a fault on one channel does not affect the other five outputs.
Energy Storage and Internal Components
The GE DS200DPCAG1A DS200DPCAG1ADB contains filter capacitors for noise reduction on the output rails. This card draws 250 mA from the 24 V DC input power supply. It includes over-voltage protection to prevent damage from input surges. The GE DS200DPCAG1A DS200DPCAG1ADB features removable terminal blocks for easy field wiring connections. Therefore, you can replace the card without rewiring the entire cabinet.
Technical Specifications Table
Below are the complete technical parameters for engineers and procurement teams:
| Parameter | Specification |
|---|---|
| Full Product Name | GE DS200DPCAG1A DS200DPCAG1ADB |
| Product Category | Mark V Power Connect Card |
| Input Voltage | 24 V DC (19.2 V to 28.8 V DC) |
| Number of Output Channels | 6 |
| Output Voltage per Channel | 24 V DC (pass-through) |
| Output Current per Channel | 0.5 A maximum |
| Total Output Current | 3 A maximum |
| 5 V DC Output | 1.5 A (internal use only) |
| Channel Isolation | 1,500 V AC between channels |
| Protection Features | Short-circuit, over-current, over-voltage |
| Protection Reset | Automatic after fault removal |
| Filter Capacitance | 330 µF per channel |
| Energy Storage | Electrolytic capacitors (no battery) |
| LED Indicators | 6 (green, one per channel) + power LED |
| Terminal Type | Removable screw terminal block |
| Connector Type (Input) | 10-pin header (backplane) |
| Wire Size (Terminals) | AWG 24 to AWG 14 (0.2 mm² to 2.5 mm²) |
| Screw Terminal Torque | 0.8 N·m to 1.1 N·m |
| Current Consumption (24V DC) | 250 mA for card logic |
| Power Dissipation | 3.5 W maximum |
| Number of Components | 1 PCB + 6 terminal blocks + 6 capacitors + 7 LEDs |
| PCB Material | FR-4 epoxy glass |
| Number of Layers | 4-layer board |
| Net Weight | 0.35 kg (350 grams) |
| Gross Weight (packaged) | 470 grams |
| Dimensions (L x W x H) | 220 mm x 130 mm x 25 mm |
| Mounting Type | 4 x M4 screws (panel mount) |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Tolerance | 5% to 95% non-condensing |
| Certifications | CE, UL, CSA |
Installation and Application Details
The GE DS200DPCAG1A DS200DPCAG1ADB mounts inside the Mark V control cabinet using four M4 screws. Connect the 24 V DC input from the system power supply to the designated header. Attach field device wiring to the removable screw terminal blocks for each channel. The GE DS200DPCAG1A DS200DPCAG1ADB requires no configuration switches or jumpers. Use the LED indicators to verify power distribution to each field device. This power connect card suits GE Mark V turbine control systems for power generation applications. It also works perfectly for steam turbine, gas turbine, and compressor control systems. Thus, the GE DS200DPCAG1A DS200DPCAG1ADB provides reliable power distribution for critical turbine control applications.
