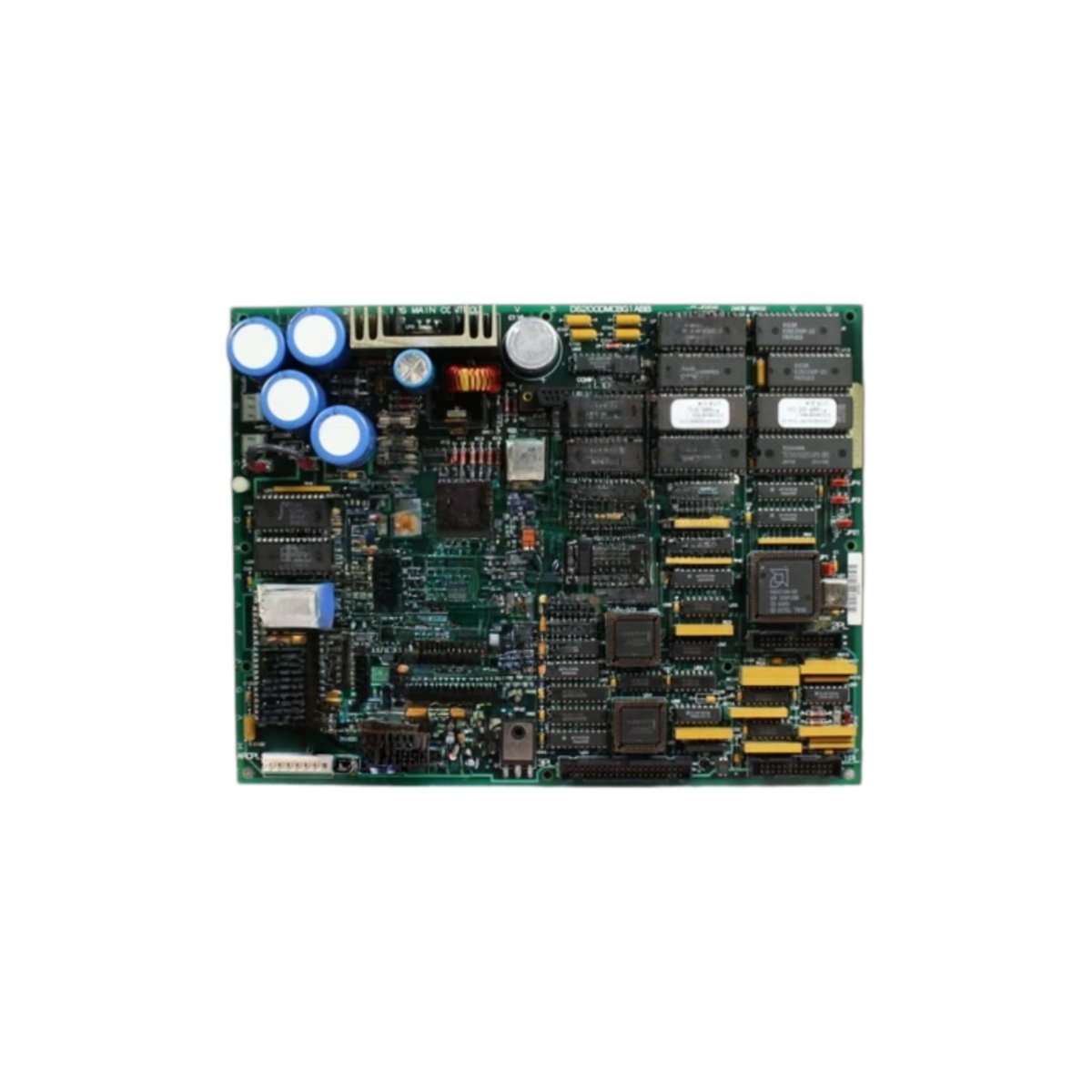

This processor board executes dual redundant control logic for turbines. The DS200DMCBG1A handles real-time calculations for critical drive functions. Its counterpart, the DS200DMCBG1ABB, uses identical dual core architecture. Both units belong to the Mark V series platform. Each board measures 11.8 inches in length. The width reaches 8.1 inches. Weight sits at approximately 1.3 kilograms.

Technical Specifications for DS200DMCBG1A DS200DMCBG1ABB

The DS200DMCBG1A contains two independent processing units. The DS200DMCBG1ABB shares the same memory configuration and bus layout. Each board integrates 4 MB of static RAM for program execution. Energy storage relies on a 2200µF capacitor bank. This bank maintains operation during short power interruptions. The module requires both 5V DC and 12V DC supplies. A watchdog timer monitors each processor core continuously. Three communication ports support external data exchange. Fourteen diagnostic LED indicators line the front edge. These lights show processor status and redundancy health.

Key Features Table

The circuit board uses high-grade FR4 material for reliable performance. Moreover, it withstands ambient temperatures from -20°C to 60°C. You can mount this processor horizontally inside the main rack. Furthermore, the dual core design provides automatic failover without interruption. Replacement requires no special programming tools for installation. Always verify firmware version before swapping either board. This component prevents single point failures in turbine control. Consequently, it ensures continuous operation of critical processes.
