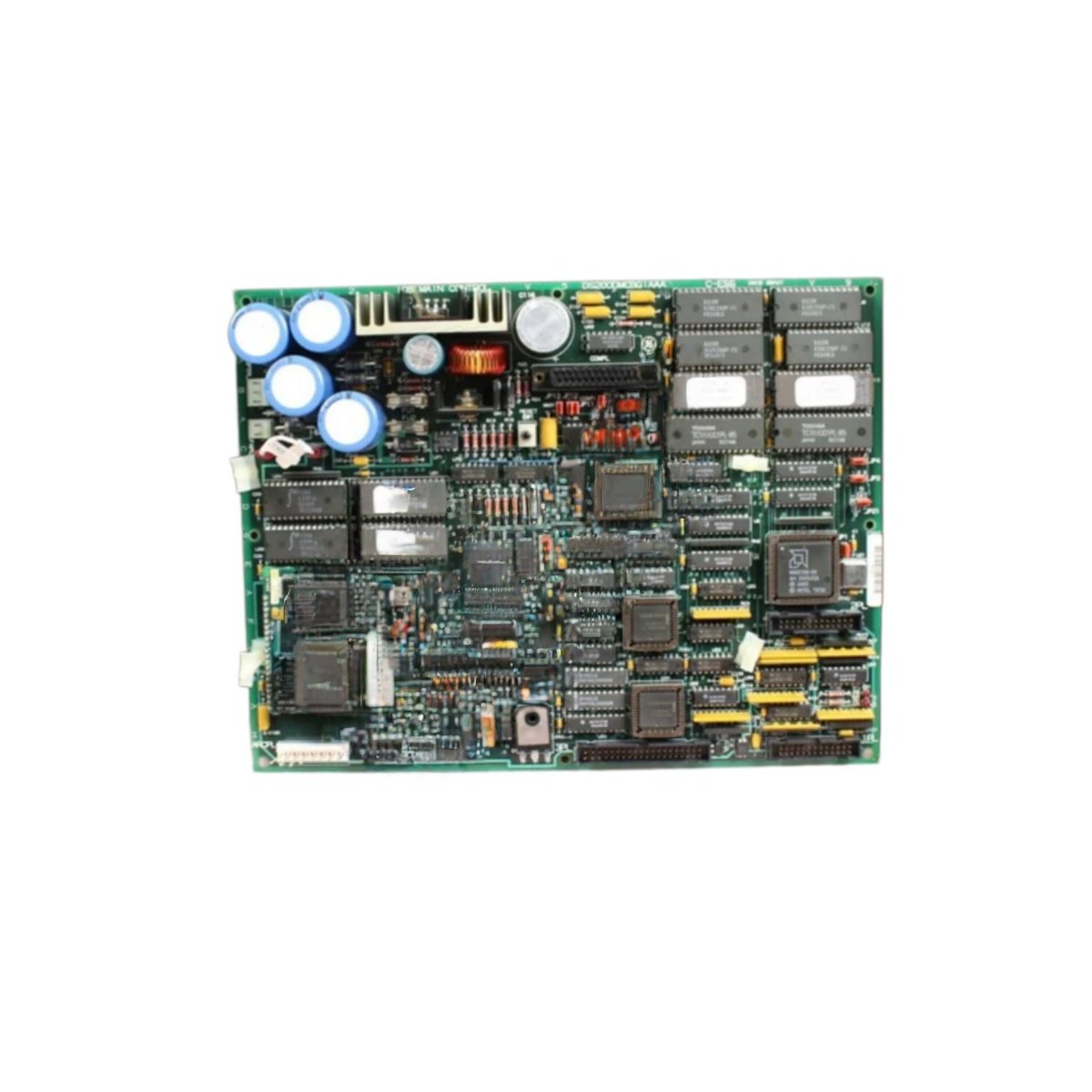

This processor board handles dual redundant control calculations for turbines. The DS200DMCBG1A executes real-time logic for critical drive functions. Its counterpart, the DS200DMCBG1AAA, uses identical processing architecture and firmware. Both units belong to the Mark V series platform. Each board measures 11.8 inches in length. The width reaches 8.1 inches. Weight sits at approximately 1.3 kilograms.

Technical Specifications for DS200DMCBG1A DS200DMCBG1AAA

The DS200DMCBG1A contains two independent processing cores. The DS200DMCBG1AAA shares the same dual core layout. Each board integrates 4 MB of static RAM for program execution. Energy storage relies on a 2200µF capacitor bank. This bank maintains operation during momentary power dips. The module operates with a nominal 5V DC and 12V DC supply. A watchdog timer monitors processor health continuously. Three communication ports provide data exchange with external devices. Twelve diagnostic LED indicators line the top edge. These lights show processor status and redundancy mode.

Key Features Table

The circuit board uses high-grade FR4 material for reliable operation. Moreover, it withstands ambient temperatures from -20°C to 60°C. You can mount this processor horizontally inside the main rack. Furthermore, the dual core design provides seamless failover redundancy. Replacement requires no special programming tools for installation. Always verify firmware version before swapping either board. This component ensures uninterrupted turbine control processing. Consequently, it prevents single point failures in critical operations.
