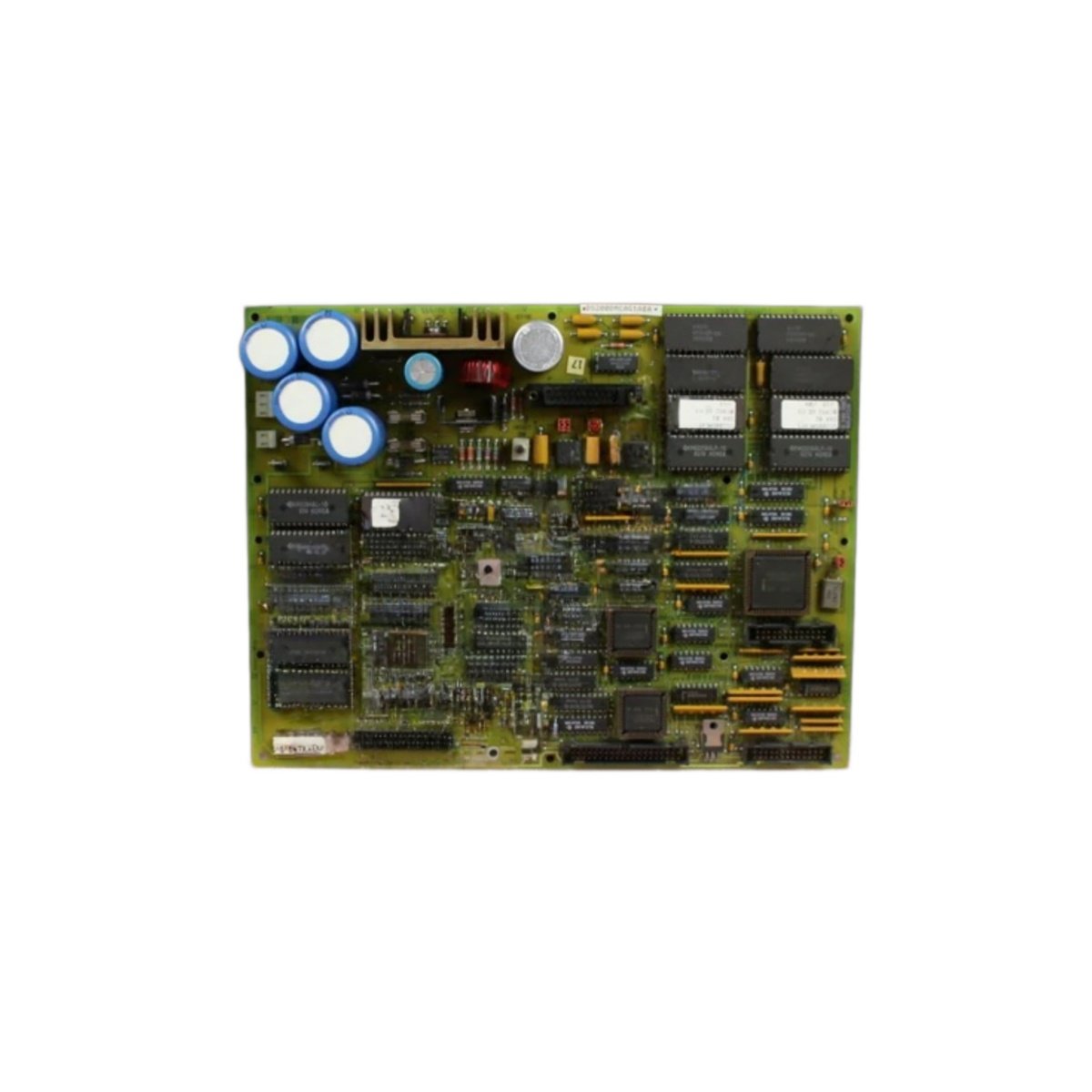

The GE DS200DMCAG1A DS200DMCAG1AEA manage communication between the main processor and power circuits. These interface boards serve the GE Mark V Turbine Control System. You can use either unit for signal conditioning and fault detection tasks. The boards provide isolation between low-level logic and high-power switching devices.

Processing and Electrical Specifications

These interface boards operate from 5 VDC logic and ±15 VDC analog supplies. Each unit consumes 1.8 amps during normal operation. Both versions share identical electrical specifications and performance. You can rely on their six-layer construction for signal integrity. The boards provide optical isolation up to 2500 VAC for critical signals.

Physical Dimensions and Weight

Each board weighs 0.72 kg for secure chassis mounting. The unit measures 305 mm long by 178 mm wide. Its PCB thickness reaches 1.6 mm with six internal copper layers. You can mount either board using six M4 screws through the designated holes.

Connectors and Interface Points

Four 50-pin ribbon cable headers connect to other drive control boards. Two 34-pin headers handle feedback signals from the power section. You will find one 20-pin header for the main turbine controller connection. The board includes a 4-pin power input connector for DC supplies. Additionally, twelve 2-pin test points provide access for oscilloscope probing.

Energy Storage and Component Layout

Each interface board stores moderate energy for local filtering purposes. Thirty-two electrolytic capacitors provide 2,200 µF of total bulk storage. These capacitors smooth power supply ripple for the analog circuits. The board does not contain any battery for program retention. A separate EEPROM stores configuration data on this unit.

Internal Components and Construction

Six custom gate arrays handle signal routing and fault detection tasks. Twenty-eight operational amplifiers condition analog signals for the ADC. You will find 186 resistors, 124 capacitors, and 42 integrated circuits on the board. The unit includes twelve optocouplers for critical signal isolation. A metal bracket provides EMI shielding over the processor section.

Variant Equivalence and Use

The GE DS200DMCAG1AEA represents a functional equivalent or later revision. Both versions share identical dimensions, connectors, and mounting hole locations. You can substitute one for the other without hardware modifications. Transitioning to either board restores turbine control system functionality. Use these boards in Mark V turbine control cabinets for power generation applications. For best results, handle either unit with proper ESD protection at all times.
