Auxiliary I/O Interface for LCI Systems

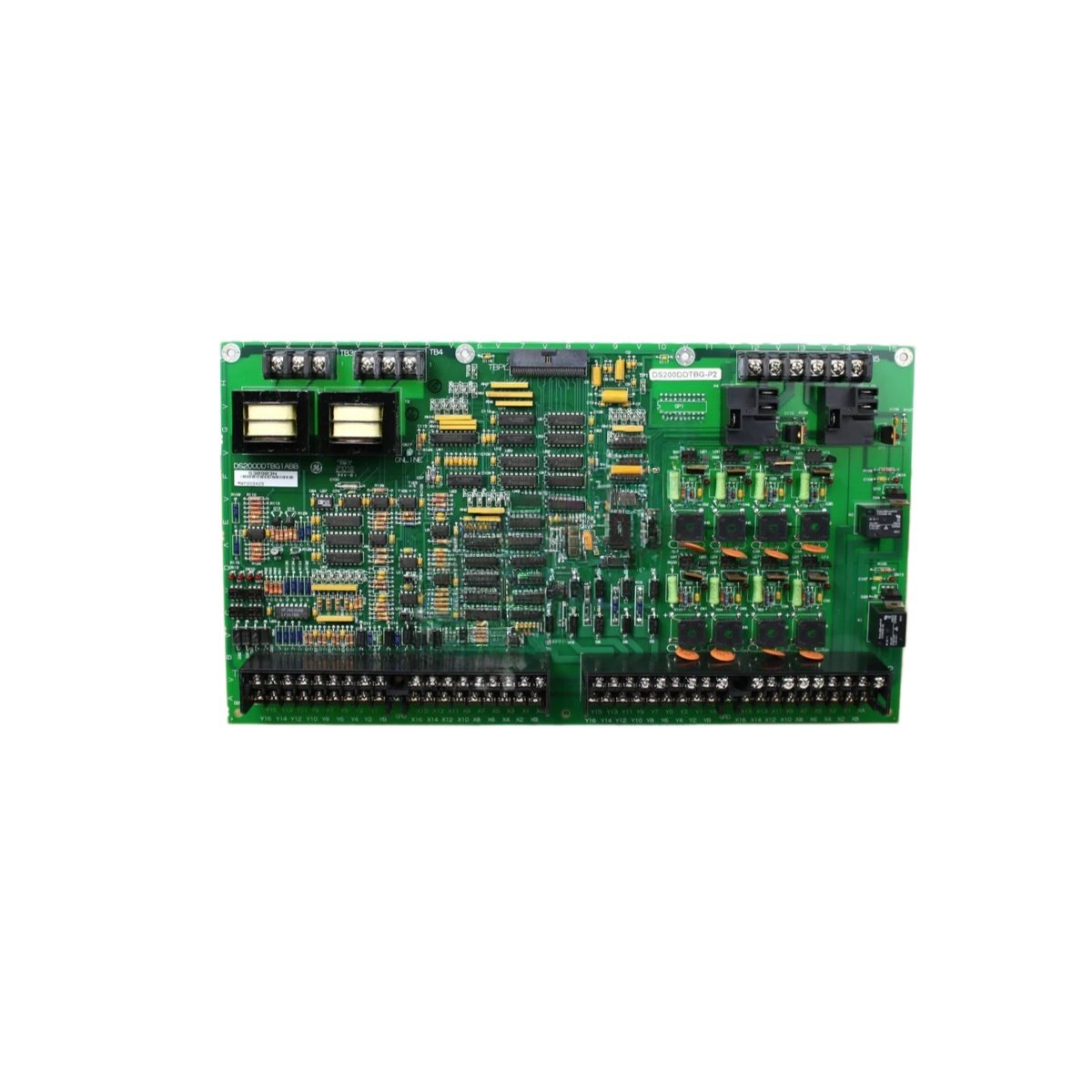

This terminal board provides auxiliary input/output connections for LCI drive systems. The GE DS200DDTBG1A interfaces between field devices and the main LCI controller. The DS200DDTBG1ABB variant offers identical functionality for direct drop-in replacement. Multiple terminal blocks support various signal types for system monitoring. Consequently, this board expands I/O capacity for load-commutated inverter applications.
I/O Configuration & Signal Specifications
The GE DS200DDTBG1A DS200DDTBG1ABB accepts digital inputs from limit switches and push buttons. It provides relay outputs for controlling auxiliary equipment and indicator lights. Each terminal block includes clear labeling for easy field wiring identification. Screw-type connections secure wires against vibration in industrial environments. Therefore, this aux I/O board delivers reliable signal interface for LCI drive systems.
| Parameter | Detailed Specification |
|---|---|
| Series | Mark V |
| Digital Inputs | 16 points (24V DC, sink/source) |
| Digital Outputs | 16 points (relay, 2A per point) |
| Terminal Blocks | 4 (removable, screw-type) |
| Input Voltage Range | 20V to 28V DC |
| Input Response Time | 5 ms typical |
| Output Contact Life | 100,000 operations (rated load) |
| Dimensions | 12.0 in x 8.0 in x 2.0 in (30.5 cm x 20.3 cm x 5.1 cm) |
| Weight | 1.8 lbs (0.82 kg) |
| Component Count | Over 100 surface-mount and through-hole parts |
| Main Connector | Two 50-pin ribbon cable headers |
| Wire Range | 0.2 mm² to 2.5 mm² (24 AWG to 14 AWG) |
| Energy Storage | None (passive terminal design) |
| Status LEDs | 2 (POWER, I/O ACTIVE) |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Humidity Range | 20% to 95% RH (non-condensing) |
Installation & Field Wiring
You mount the GE DS200DDTBG1A DS200DDTBG1ABB inside the LCI control cabinet. Connect the ribbon cables between this board and the main controller card. Wire your field sensors to the designated input terminals on the removable blocks. Wire your actuators to the output terminals using appropriate gauge wire. Consequently, this board simplifies field wiring for LCI auxiliary I/O requirements.
Operational Advantages & System Integration
The GE DS200DDTBG1A DS200DDTBG1ABB uses removable terminal blocks for easy maintenance access. You can replace a faulty block without rewiring the entire board. Screw terminals provide vibration-resistant connections for industrial environments. A green I/O ACTIVE LED confirms normal communication with the main controller. Therefore, this auxiliary I/O board provides flexible signal expansion for LCI drive systems.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
